(With LH Anti-Pinch Only) Coupe

DOOR LOCK AND UNLOCK SWITCH

DRIVER SIDE : Diagnosis Procedure (With LH Anti-Pinch Only)

Regarding Wiring Diagram information, Power Door Lock System Coupe.

1. CHECK POWER WINDOW SWITCH OUTPUT SIGNAL

1.Turn ignition switch ON.

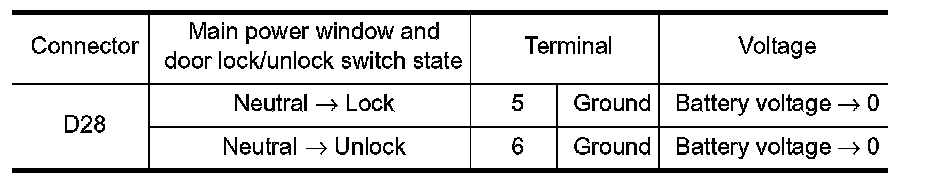

2.Check voltage at the main power window and door lock/unlock switch connector when the switch (driver side) is turned to
"LOCK" or "UNLOCK".





Is the inspection result normal?
YES- GO TO 5
NO- GO TO 2

2. CHECK POWER WINDOW SWITCH GROUND

1.Turn ignition switch OFF.
2.Disconnect main power window and door lock/unlock switch connector.

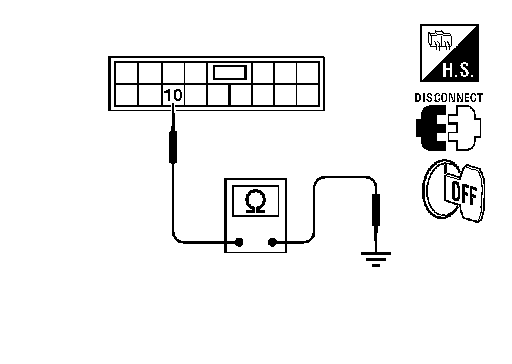

3.Check continuity between main power window and door lock/ unlock switch connector and ground.





Is the inspection result normal?

YES- GO TO 3
NO- Repair or replace harness.

3. CHECK POWER WINDOW SWITCH

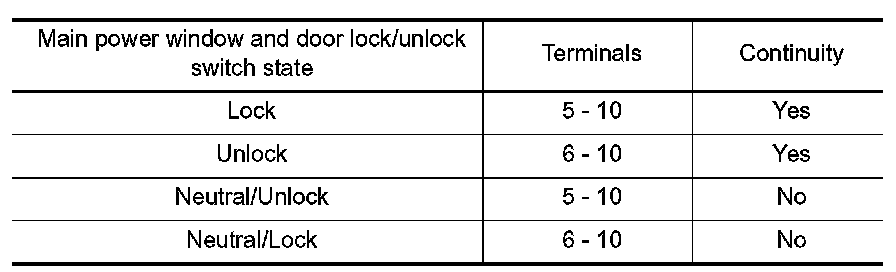

Check continuity between main power window and door lock/unlock switch terminals.





Is the inspection result normal?
YES- GO TO 4
NO- Replace main power window and door lock/unlock switch. LH Only Anti-Pinch Coupe.

4. CHECK POWER WINDOW SWITCH CIRCUITS

1.Disconnect BCM connector.





2.Check continuity between BCM connector and main power window and door lock/unlock switch connector.





3.Check continuity between BCM connector and ground.





Is the inspection result normal?
YES- GO TO 5
NO- Repair or replace harness.

5. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- Inspection End.
