With Intelligent Key

DOOR LOCK ACTUATOR

REAR RH : Diagnosis Procedure

Regarding Wiring Diagram information, With Intelligent Key.

1. CHECK DOOR LOCK ACTUATOR SIGNAL






Check voltage between BCM connector and ground.





Is the inspection result normal?
YES- GO TO 3
NO- GO TO 2

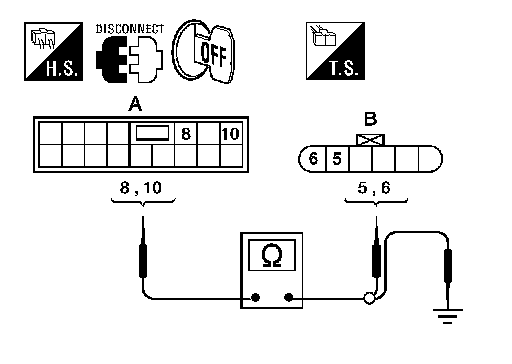

2. CHECK DOOR LOCK ACTUATOR CIRCUIT

1.Disconnect BCM and rear door lock actuator RH connectors.





2.Check continuity between BCM connector and rear door lock actuator RH connectors.





3.Check continuity between BCM connector and ground.





Is the inspection result normal?
YES- Replace rear door lock actuator RH.
NO- Repair or replace harness.

3. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- Inspection End.
