DOOR LOCK ACTUATOR

PASSENGER SIDE : Diagnosis Procedure

Regarding Wiring Diagram information, Power Door Lock System Coupe.

1. CHECK DOOR LOCK ACTUATOR SIGNAL

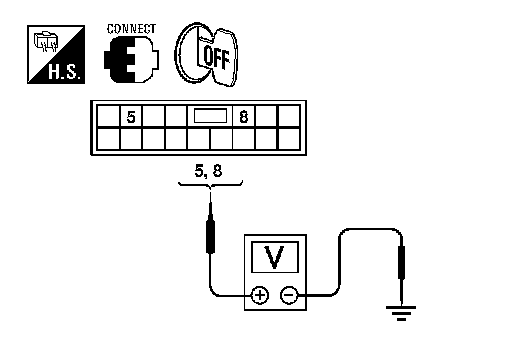

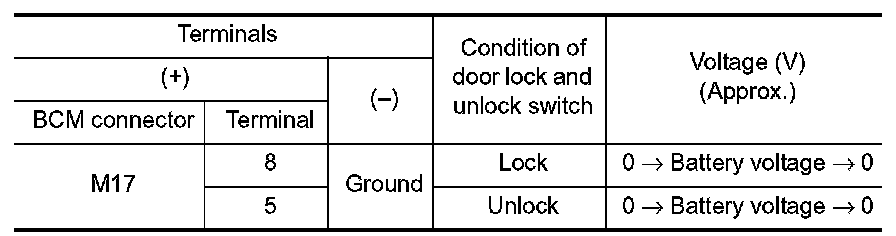

Check voltage between BCM connector and ground.





Is the inspection result normal?
YES- GO TO 3
NO- GO TO 2

2. CHECK DOOR LOCK ACTUATOR CIRCUIT

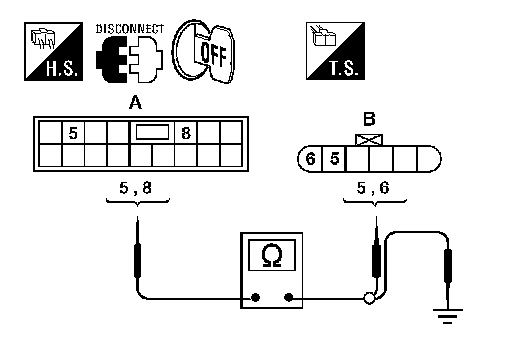

1.Disconnect BCM and door lock actuator RH connectors.





2.Check continuity between BCM connector and door lock actuator RH.





3.Check continuity between BCM connector and ground.





Is the inspection result normal?
YES- Replace door lock actuator RH.
NO- Repair or replace harness.

3. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- Inspection End.
