DOOR LOCK ACTUATOR

DRIVER SIDE : Diagnosis Procedure

Regarding Wiring Diagram information, Power Door Lock System Coupe.

1. CHECK OUTPUT SIGNAL

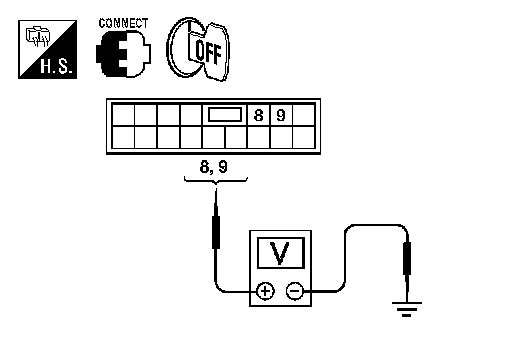

Check voltage between BCM connector and ground.





Is the inspection result normal?

YES- GO TO 3
NO- GO TO 2

2. CHECK DOOR LOCK ACTUATOR CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect BCM and door lock actuator driver side connector.

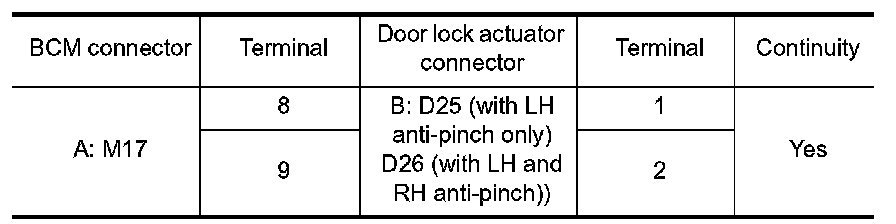

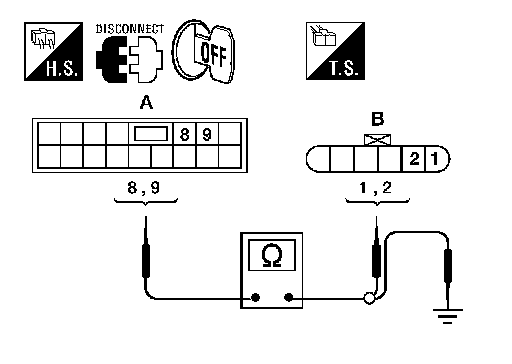

3.Check continuity between BCM connector and door lock actuator driver side connector.

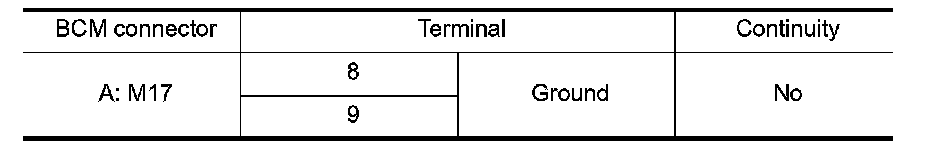

4.Check continuity between BCM connector and ground.





Is the inspection result normal?
YES- Replace door lock actuator LH.
NO- Repair or replace harness.

3. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- Inspection End.
