Without Intelligent Key

REMOTE KEYLESS ENTRY RECEIVER

Removal


REMOVAL

1.Remove glove box assembly. Service and Repair.

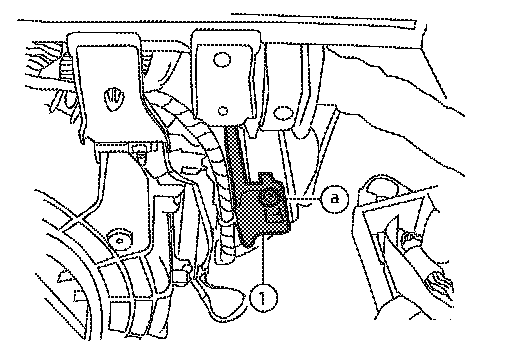

2.Remove the screw (a) and lower the bracket and remote keyless entry receiver (1).
3.Disconnect the harness and connector and remove the remote keyless entry receiver (1).
