Coupe

FRONT FENDER

Removal and Installation







REMOVAL

1.Remove the fender protector. Coupe.
2.Remove the front combination lamp. Removal and Replacement.
3.Remove the cowl top side trim cover.
4.Remove the center mudguard. Coupe.

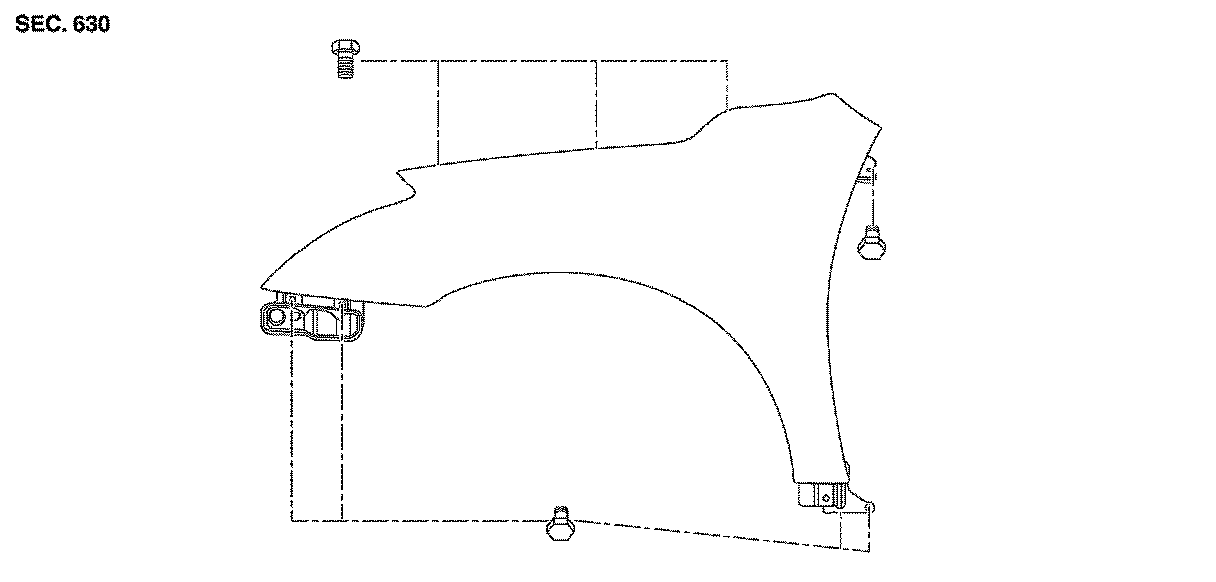

5.Remove the bolts and the front fender.

CAUTION:
- While removing, use a shop cloth to protect the body from damage.
- Use care when removing the front fender. The front fender baffle foam adheres the front fender to the body side outer. Carefully release the foam or damage to the fender may occur.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:
- After installing, perform fender adjustment. Coupe.
- After adjusting, apply touch-up paint (the body color) onto the head of the front fender bolts.
