FRONT FENDER

Adjustment
















Adjustment
1.Remove the cowl top side trim cover.
2.Remove the front fender protector. Sedan.
3.Remove the center mudguard. Sedan.
4.Loosen the front fender bolts.

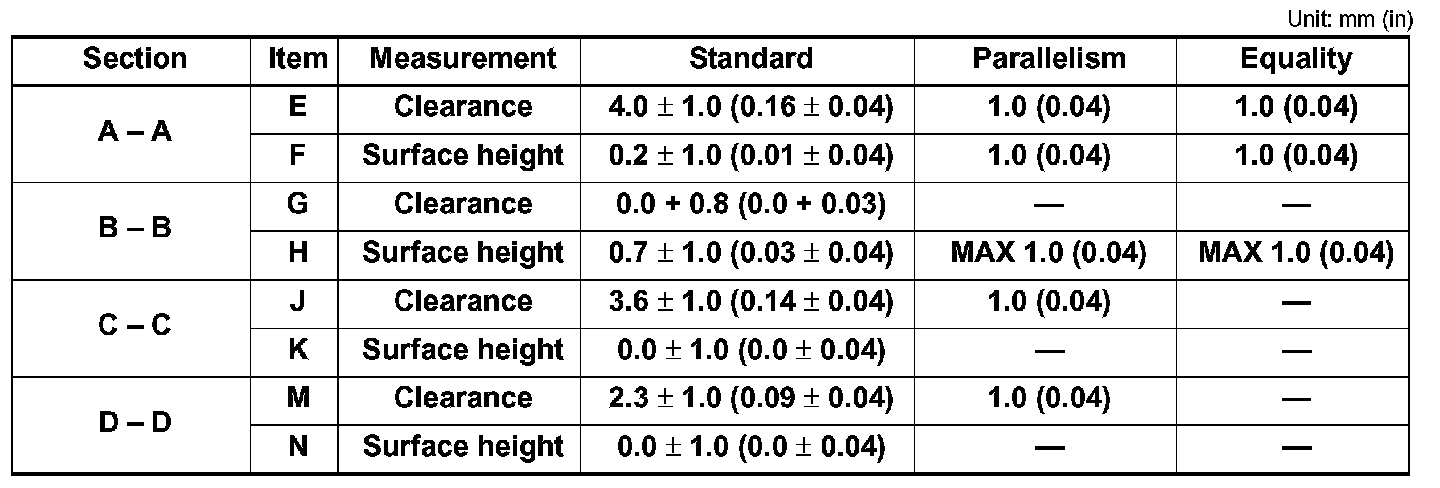

5.Adjust the clearance (J) and surface height (K) between the front fender and the front door.
6.Tighten the rear upper and lower front fender bolts.
7.Adjust the clearance (E) and surface height (F) between the front fender and the hood.
8.Adjust the clearance (M) and surface height (N) between the front fender and the body side outer.
9.Tighten the inner front fender bolts.
11.Tighten the front fender to front fascia and bracket screws.
12.Apply touch-up paint (the body color) onto the head of the front fender bolts.
13.Install the center mudguard. Sedan.
14.Install the front fender protector. Sedan.
15.Install the cowl top side trim cover.
