Coupe

TRUNK LID

TRUNK LID ASSEMBLY : Adjustment

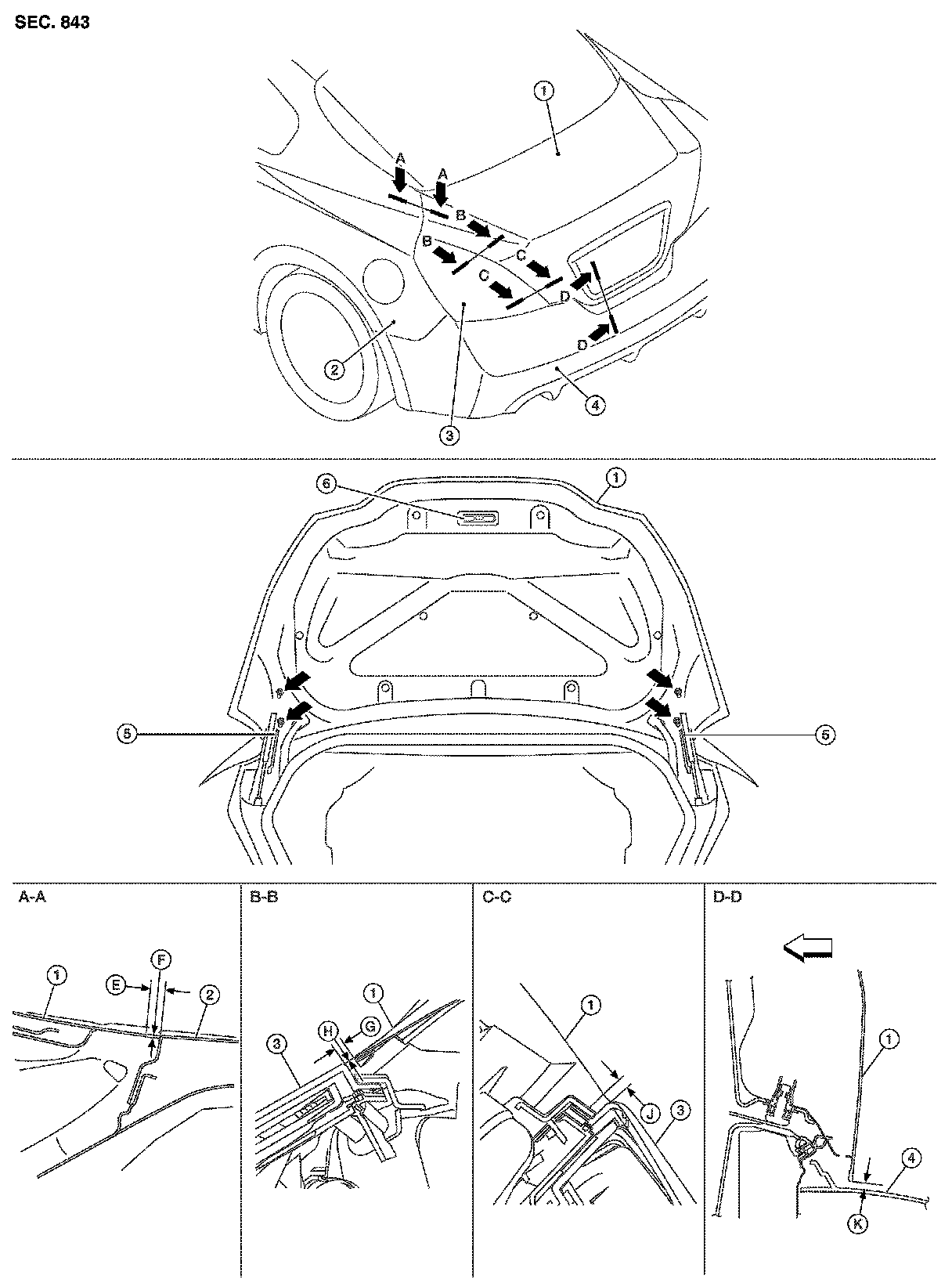

LONGITUDINAL CLEARANCE

1.Check the clearance and the evenness between the trunk lid and each part by visual inspection and tactile feel.
2.Loosen the trunk lid to hinge bolts.

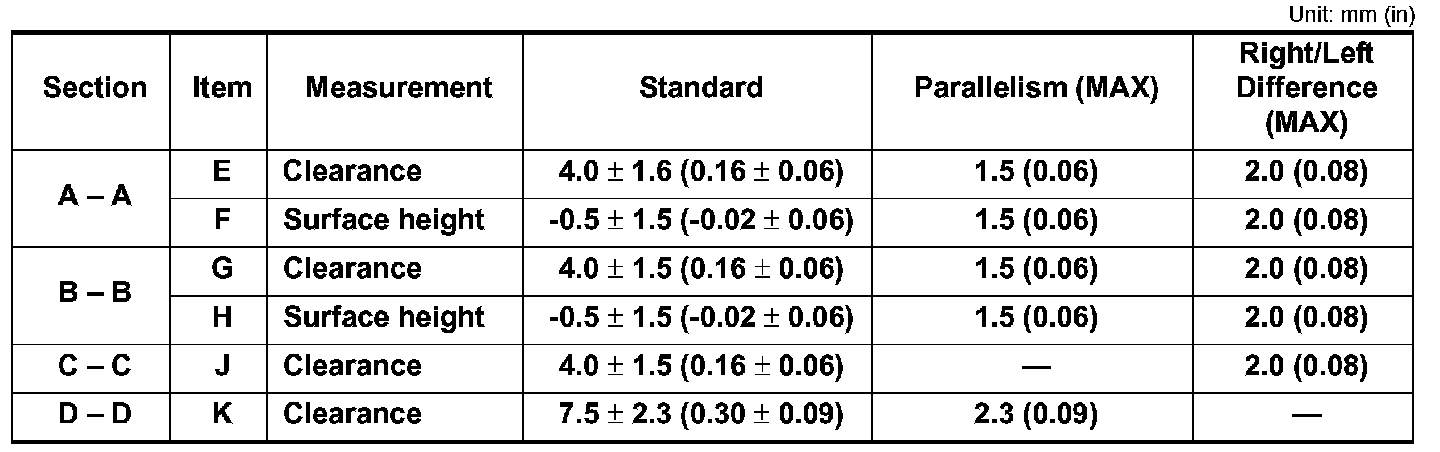

3.Move the trunk lid so that the clearance measurements are within specifications.
4.Tighten the trunk lid to hinge bolts.

SURFACE HEIGHT ADJUSTMENT

1.Loosen the trunk lid striker bolts.
2.Lift up the trunk lid approx. 100 - 150 mm (3.94 - 5.91 in) height then close it lightly. Make sure it engages firmly with the trunk lid closed.
3.Tighten the trunk lid striker bolts.
