HOOD

HOOD ASSEMBLY : Removal and Installation


REMOVAL

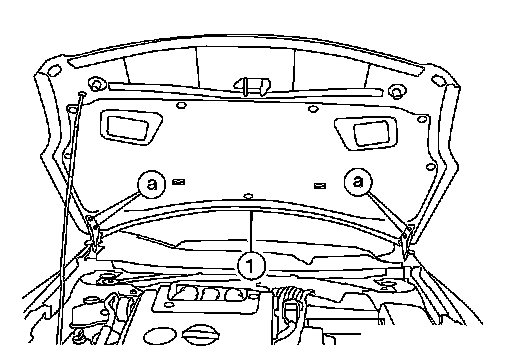

1.Remove the hinge nuts (a) and the hood assembly (1).

CAUTION:
Operate with two workers, because of its large size.

INSTALLATION

Installation is in the reverse order of removal.
Hood hinge nuts13.5 Nm (1.4 kg-m, 10 ft-lb)
NOTE:
After installing, perform hood fitting adjustment. With Intelligent Key.
