With Intelligent Key

DOOR

REAR DOOR : Removal and Installation


CAUTION:
- When removing and installing the rear door assembly, support the door with a jack and cloth to protect the door and body.
- Check the hinge rotating parts for poor lubrication. If necessary, apply "body grease".
- Operate with two workers, because of its heavy weight.

REMOVAL

1.Pull out grommet and disconnect rear door harness connector.
2.Remove the check link bolt from the center pillar.

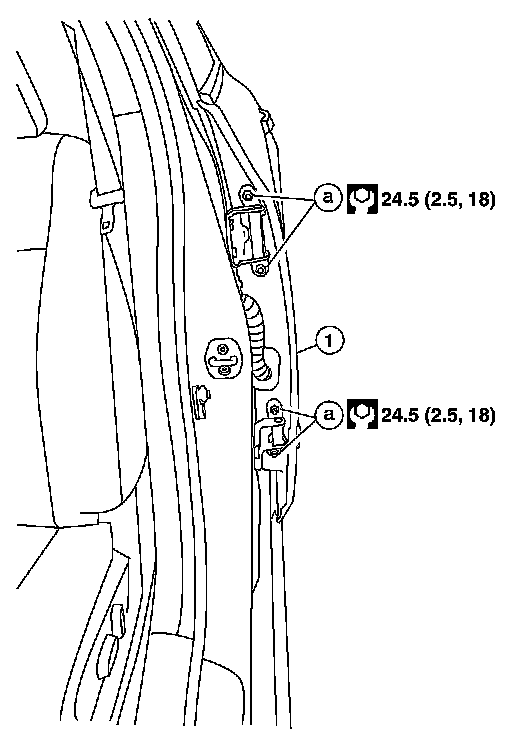

3.Remove the door-side hinge nuts (a) and the door assembly (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:
- After installing, perform rear door adjustment. With Intelligent Key.
- After adjusting, apply touch-up paint (the body color) to the door nuts and bolts.
