Without Intelligent Key

DOOR

FRONT DOOR : Adjustment

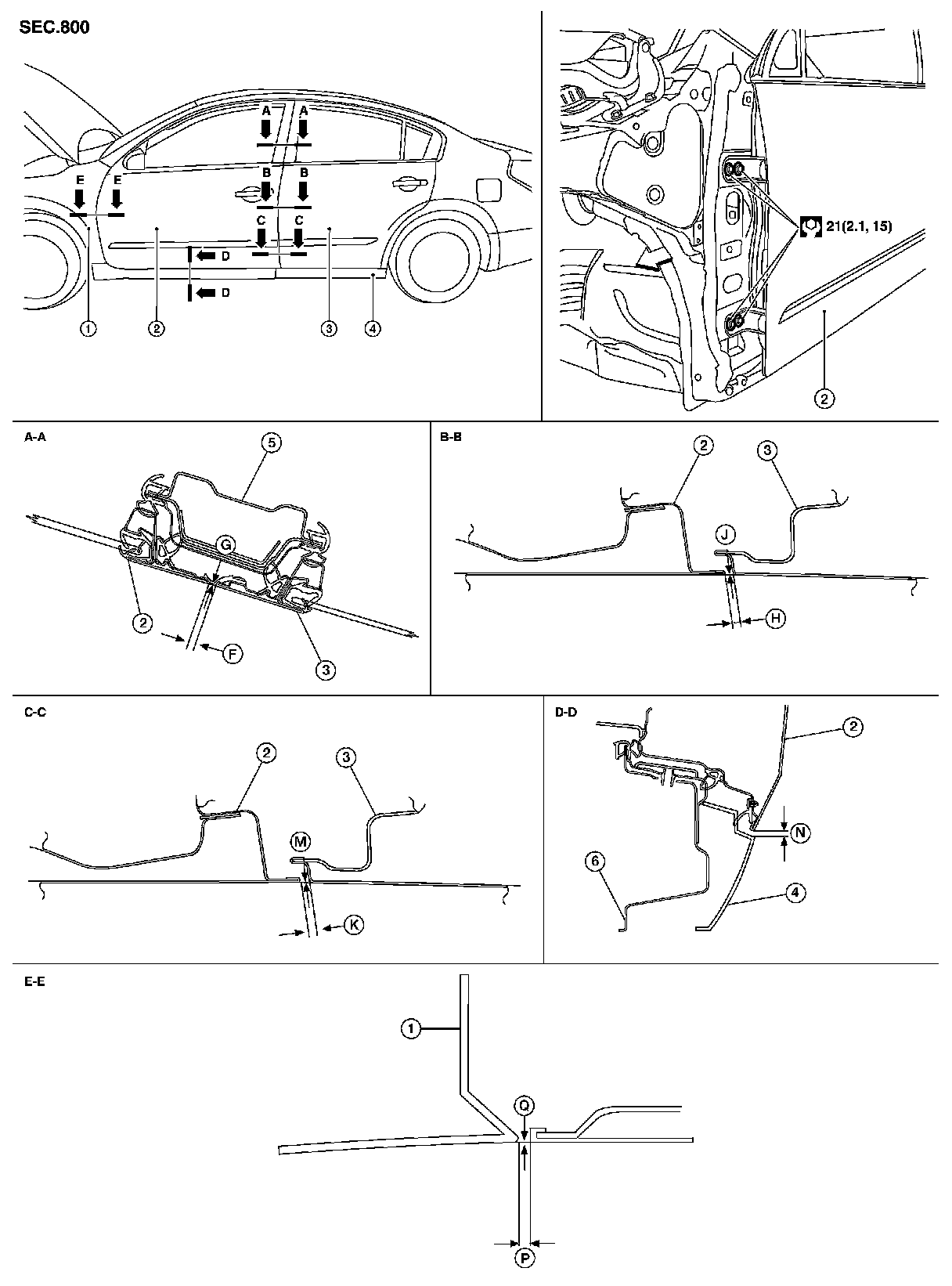

LONGITUDINAL CLEARANCE

1.Confirm the rear door adjustments and adjust if necessary. Without Intelligent Key.
2.Remove the front fender. With Intelligent Key.

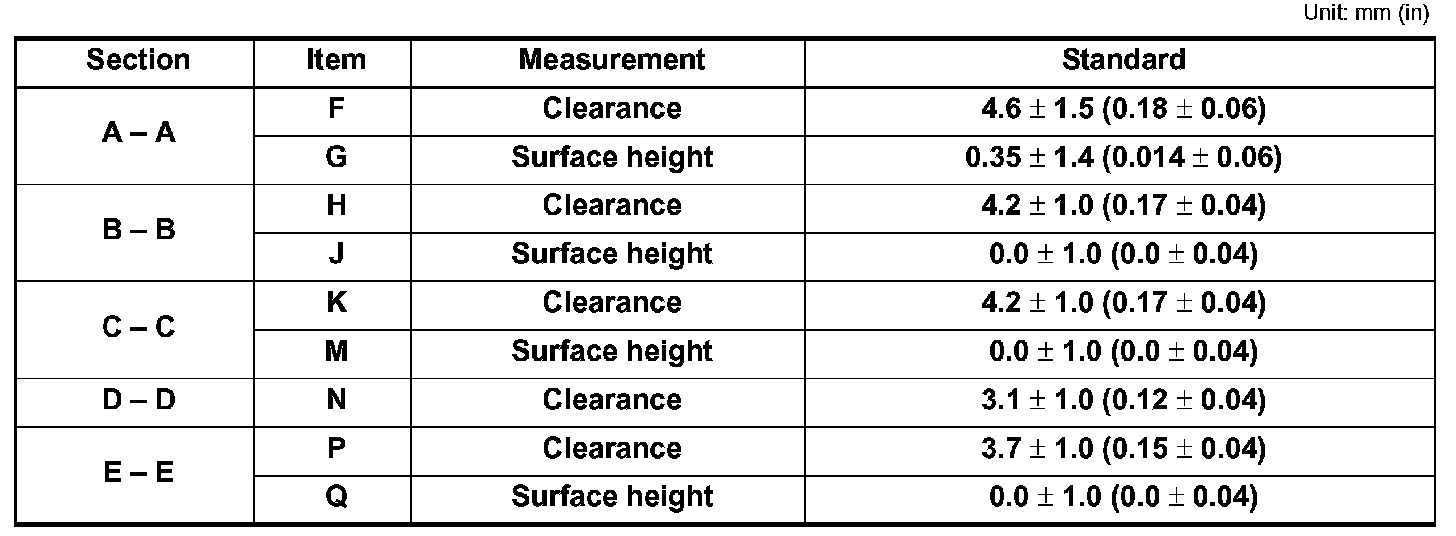

3.Loosen the hinge to body bolts. Move the front door forward or backward as necessary until within specifications.
4.Tighten the hinge to body bolts to specification.
5.Install the front fender. With Intelligent Key.

SURFACE HEIGHT ADJUSTMENT

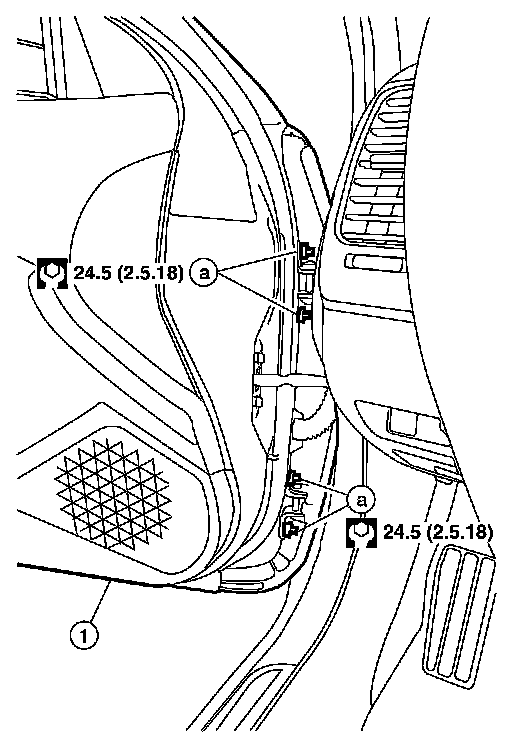

1.Loosen the front door hinge nuts (a).
2.Move the top and/or bottom of the front door (1) in or out as necessary until it is within specifications.
3.Tighten the front door hinge nuts to specification.
