Coupe

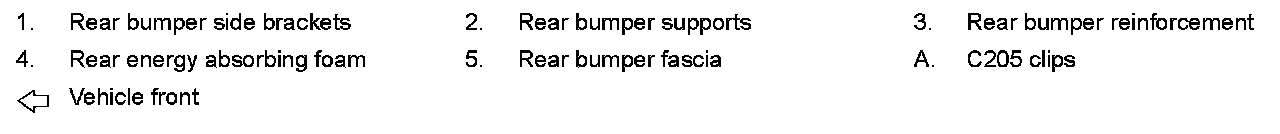

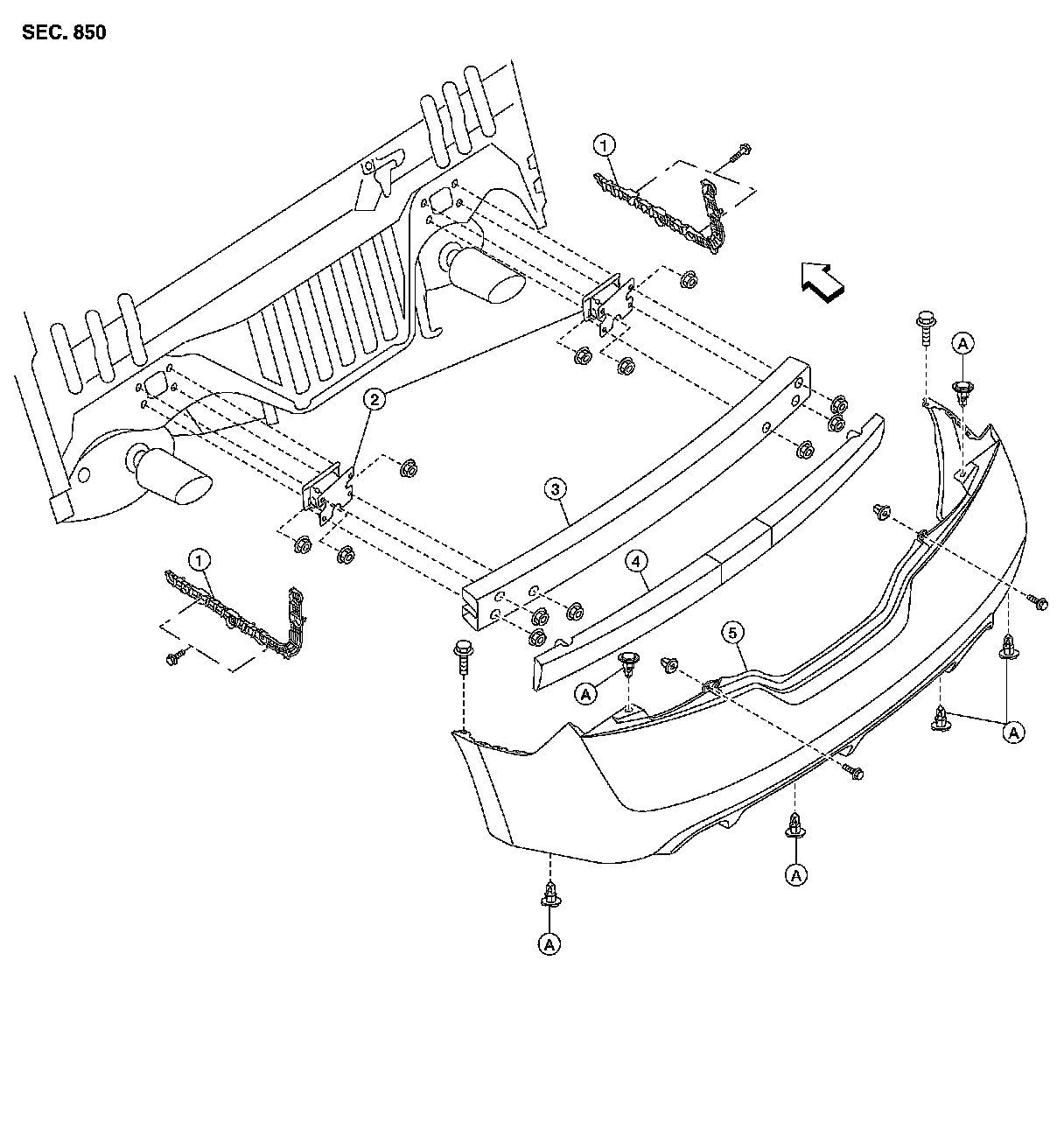

REAR BUMPER

Removal and Installation












REMOVAL

1.Remove the rear combination lamps (RH/LH). Service and Repair.
2.Partially remove the rear fender protectors (RH/LH).
3.Remove the rear bumper fascia clips and screws, then remove the rear bumper fascia.
4.Remove the rear energy absorbing foam.
5.Remove the nuts, then the rear bumper reinforcement.
6.Remove the nuts, then the rear bumper supports.

INSTALLATION

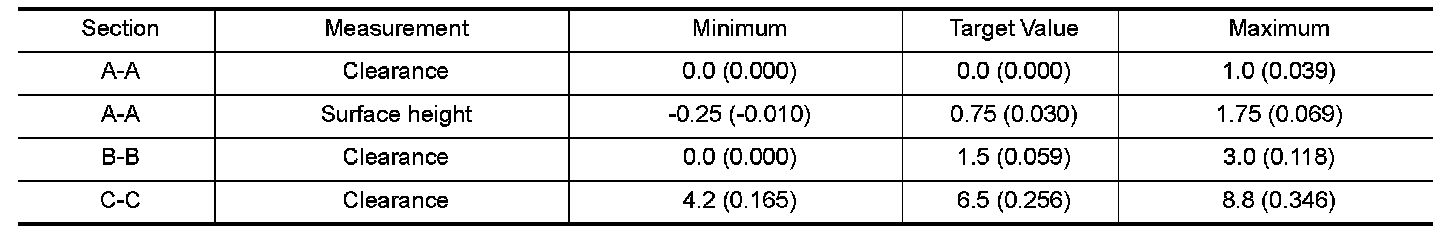

Installation is in the reverse order of removal. mm (in)










EXT
