Coupe

BLUETOOTH CONTROL UNIT

Removal and Installation - Coupe


REMOVAL

1.Disconnect the battery negative terminal.
2.Remove the trunk floor carpet and spare tire cover. Exploded View Coupe.
3.Remove the LH trunk floor spacer.

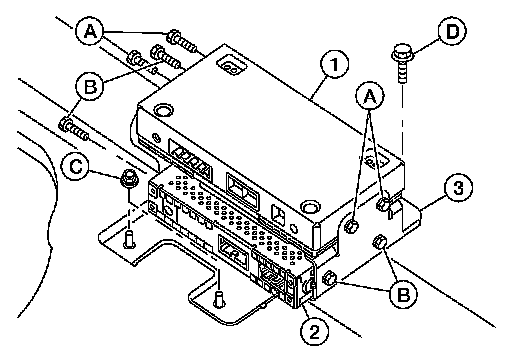

4.Remove the Bluetooth control unit screws (A), disconnect the
Bluetooth control unit connectors and remove the Bluetooth control unit (1).
- Satellite radio tuner (2)
- Satellite radio tuner screws (B)
- Satellite radio tuner bracket (3)
- Satellite radio tuner bracket nuts (C)
- Satellite radio tuner bracket screw (D)

INSTALLATION

Installation is in the reverse order of removal.
