Control Unit (Sedan)




AV CONTROL UNIT (SEDAN)

Reference Value


VALUES ON THE DIAGNOSIS TOOL

CONSULT data monitor item

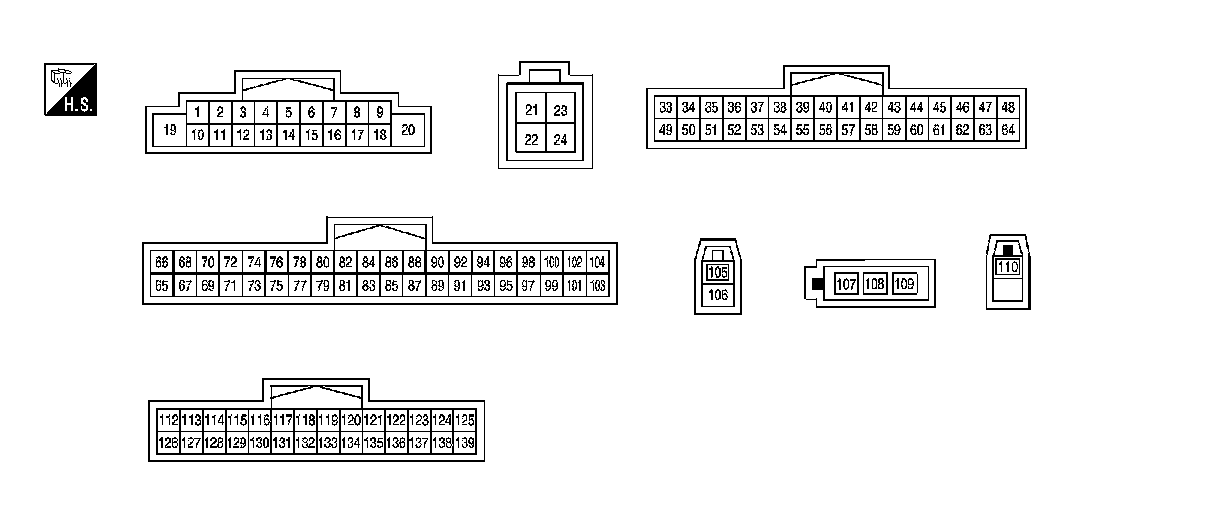

TERMINAL LAYOUT

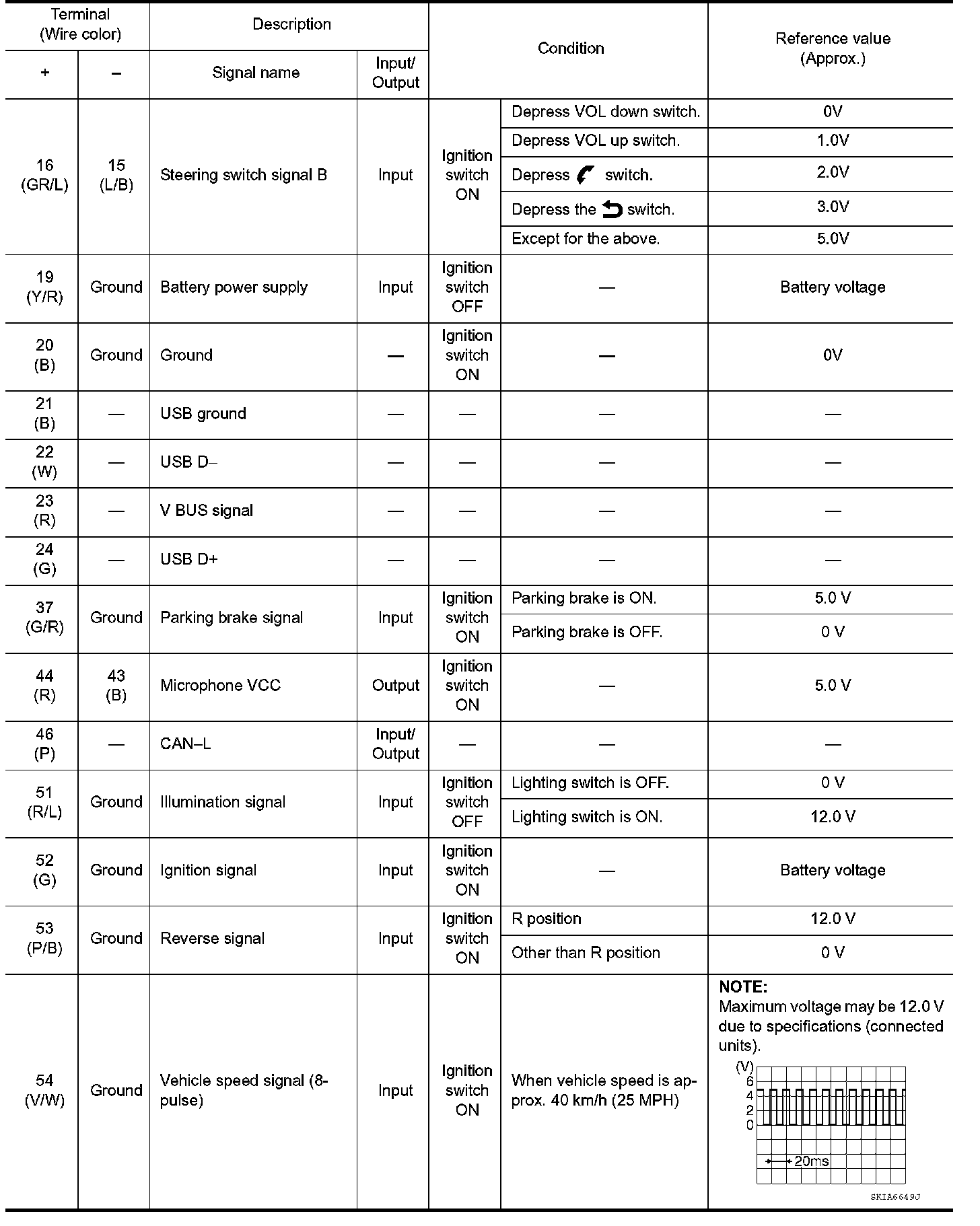

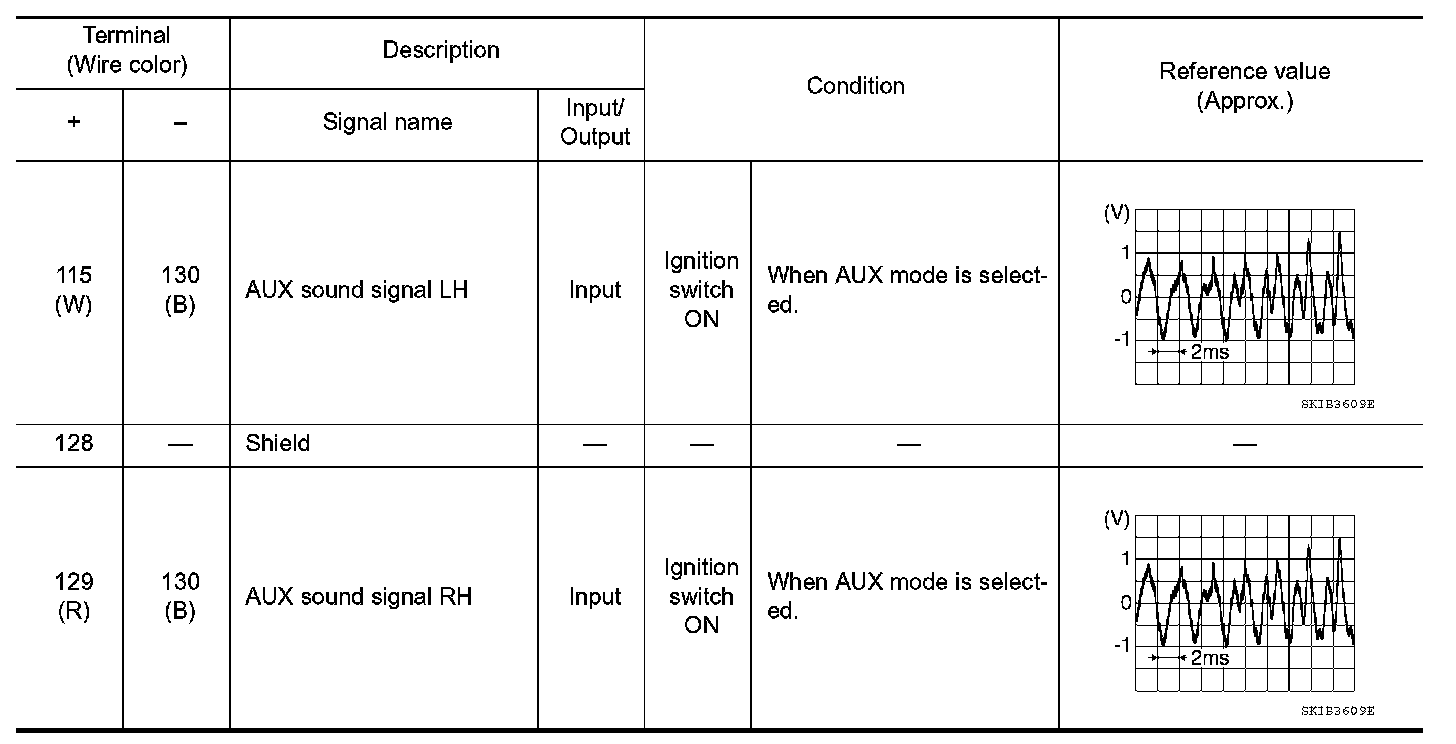

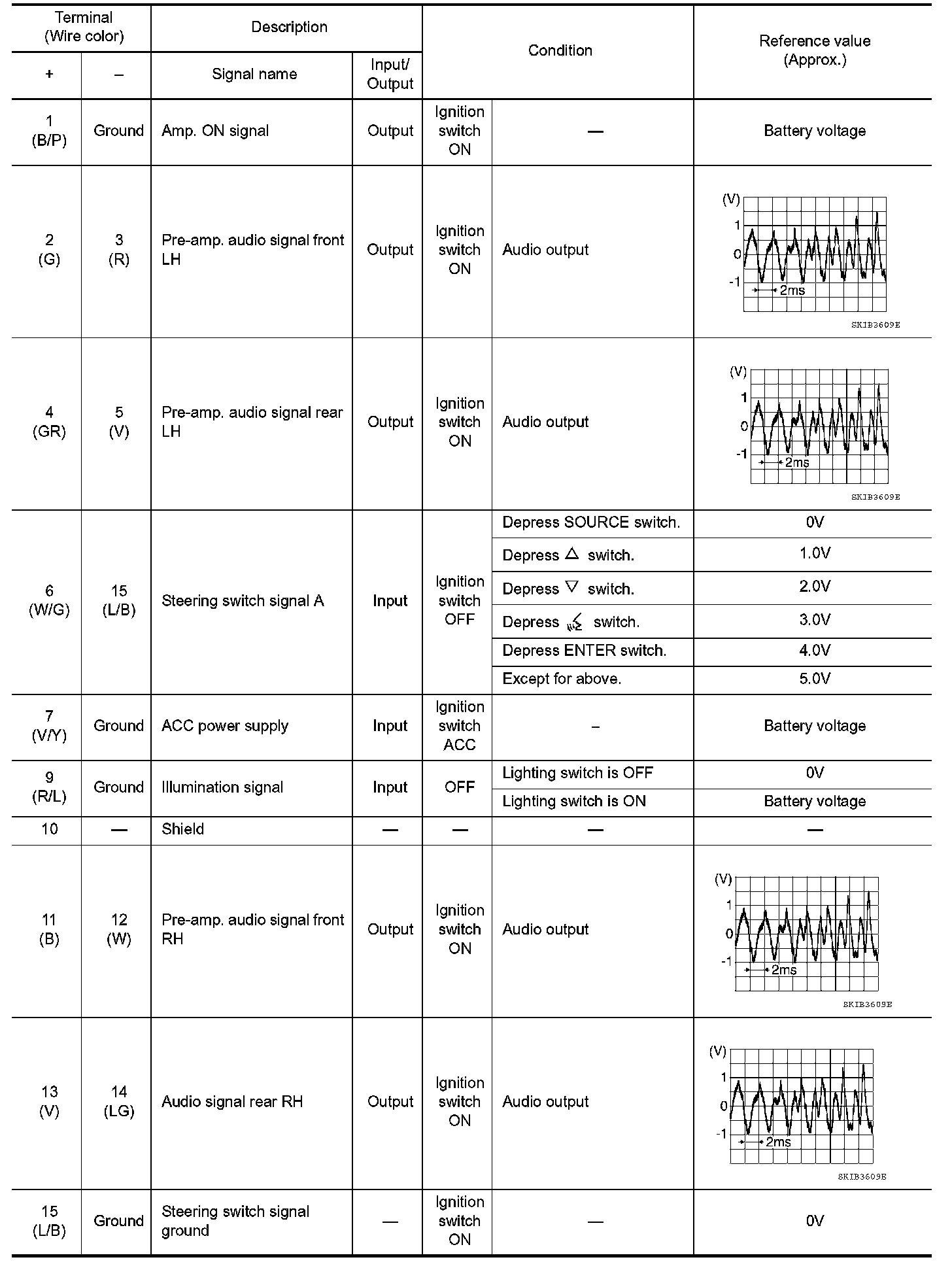

PHYSICAL VALUES
