Bose Audio With Navigation

REAR DOOR SPEAKER (SEDAN)

Description

The audio unit sends audio signals to the BOSE speaker amp. The BOSE speaker amp. amplifies the audio signals before sending them to the rear door speakers using the audio signal circuits.


Diagnosis Procedure

Regarding Wiring Diagram information, Sedan.

1. CONNECTOR CHECK

Check the audio unit and speaker connectors for the following:
- Proper connection
- Damage
- Disconnected or loose terminals
Is the inspection result normal?
YES- GO TO 2
NO- Repair the terminal and connector.

2. HARNESS CHECK






1.Disconnect BOSE speaker amp. connectors B121, B122 and suspect speaker connector.
2.Check continuity between BOSE speaker amp. harness connectors B121 (A) and B122 (B) and suspect speaker harness connector (C).

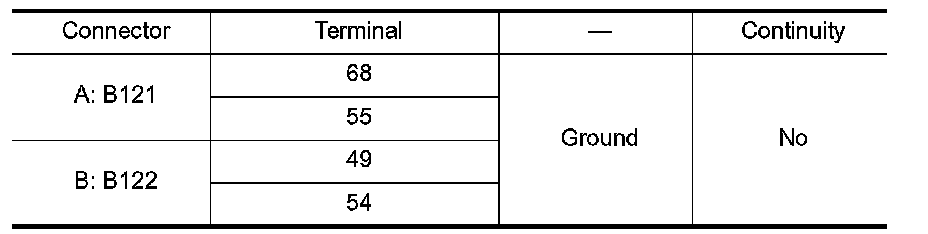

3.Check continuity between BOSE speaker amp. harness connectors B121 (A) and B122 (B) and ground.





Are the continuity test results as specified?
YES- GO TO 3
NO- Repair harness or connector.

3. REAR DOOR SPEAKER SIGNAL CHECK






1.Connect BOSE speaker amp. connectors B121, B122 and suspect speaker connector.
2.Turn ignition switch to ACC.
3.Push AV control unit "POWER" switch.

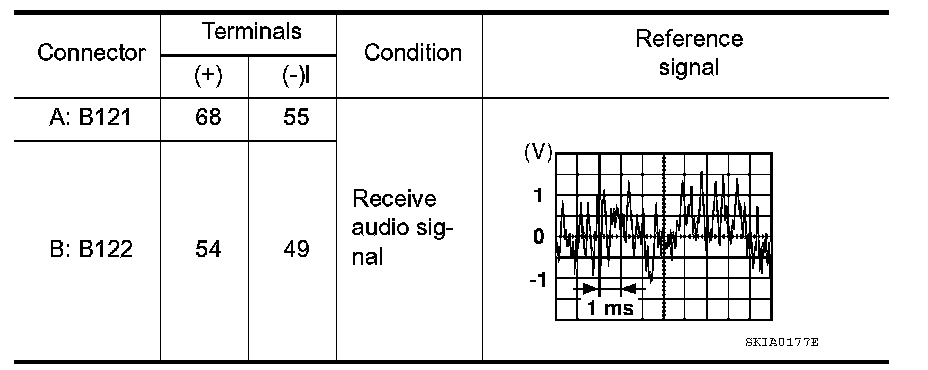

4.Check the signal between BOSE speaker amp. harness connectors (A) B121 and (B) B122 terminals with CONSULT or oscilloscope.





Is the audio signal voltage readings as specified?
YES- Replace suspect speaker. Bose Audio With Navigation Sedan.
NO- GO TO 4.

4. HARNESS CHECK

1.Disconnect AV control unit connector M100 and BOSE speaker amp. connector B121.





2.Check continuity between AV control unit harness connector

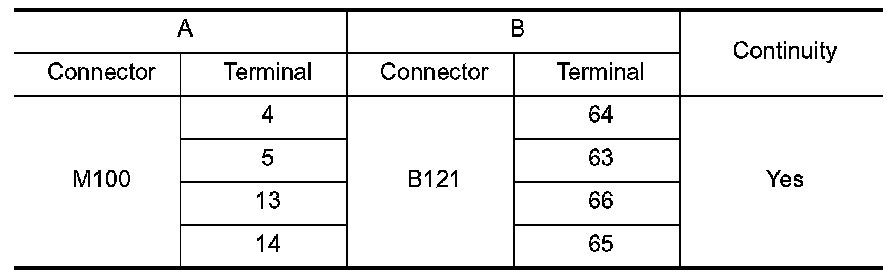

M100 (A) and BOSE speaker amp. harness connector B121 (B).





3.Check continuity between AV control unit harness connector

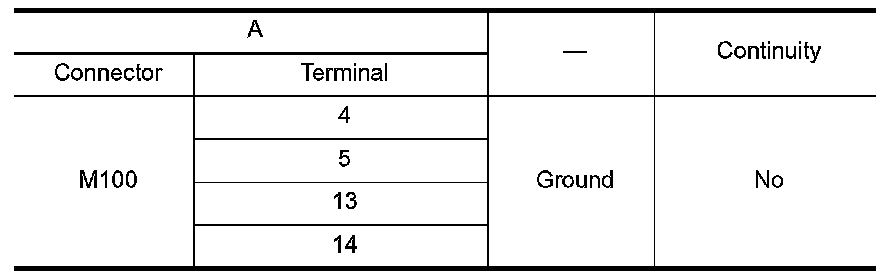

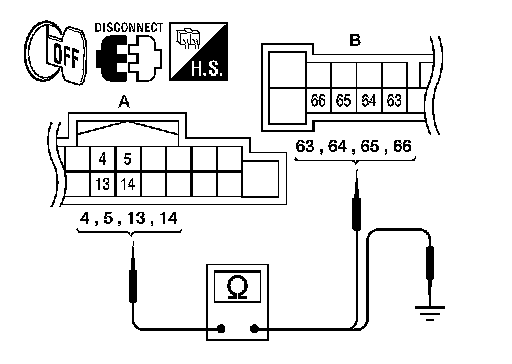

M100 (A) and ground.





Are continuity test results as specified?
YES- GO TO 5
NO- Repair harness or connector.

5. REAR DOOR SPEAKER SIGNAL CHECK






1.Connect AV control unit connector M100 and BOSE speaker amp. connector B121.
2.Turn ignition switch to ACC.
3.Push AV control unit "POWER" switch.
4.Check the signal between AV control unit harness connector

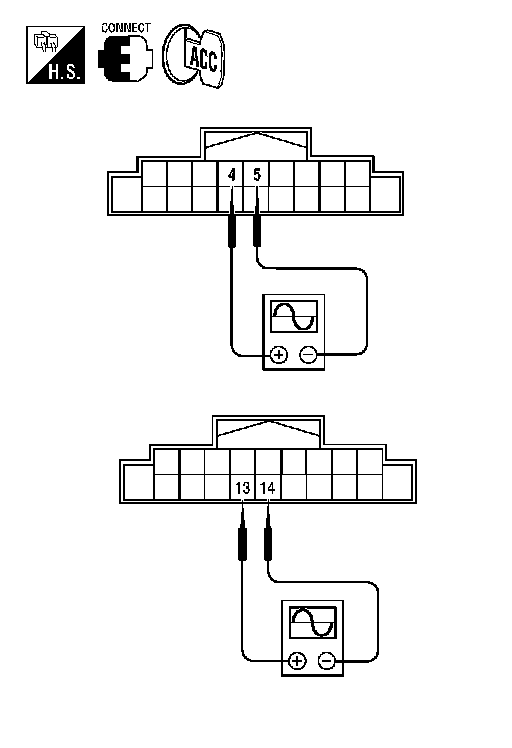

M100 terminals with CONSULT or oscilloscope.





Are the audio signal voltage readings as specified?
YES- Replace BOSE speaker amp. Sedan Bose Audio With Navigation.
NO- Replace AV control unit. Service and Repair.
