Base Audio

POWER SUPPLY AND GROUND CIRCUIT (SEDAN)

AUDIO UNIT : Diagnosis Procedure

Regarding Wiring Diagram information, Sedan.

1. CHECK FUSES

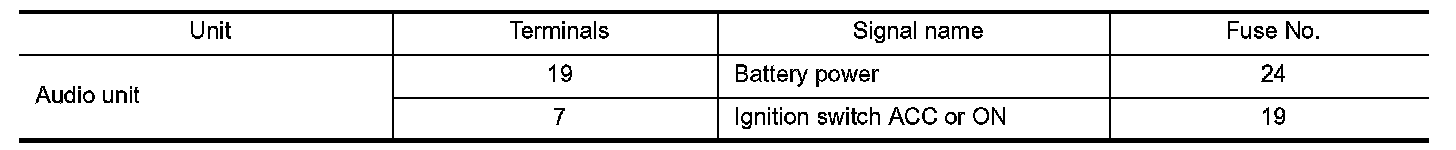

Check that the following fuses are not blown.





Are the fuses OK?
YES- GO TO 2
NO- If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.

2. POWER SUPPLY CIRCUIT CHECK






1.Disconnect audio unit connector M85.
2.Check voltage between the audio unit connector M85 and ground.





Are the voltage results as specified?
YES- GO TO 3
NO- - Check connector housings for disconnected or loose terminals.
- Repair harness or connector.

3. GROUND CIRCUIT CHECK

Inspect audio unit case ground.
Does case ground pass inspection?
YES- Inspection End.
NO- Repair audio unit case ground.
