Home >> Nissan-Datsun >> 2012 >> Altima L4-2.5L (QR25DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Audio System (Coupe) >> Symptom Table

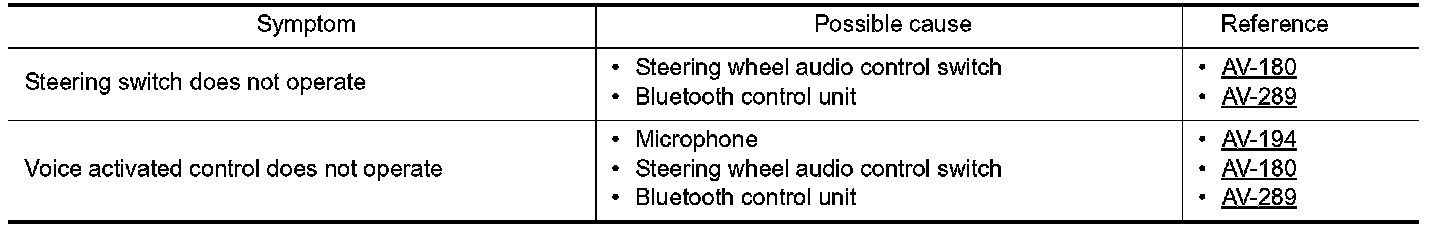

Symptom Table




AUDIO SYSTEM (COUPE)

Symptom Table

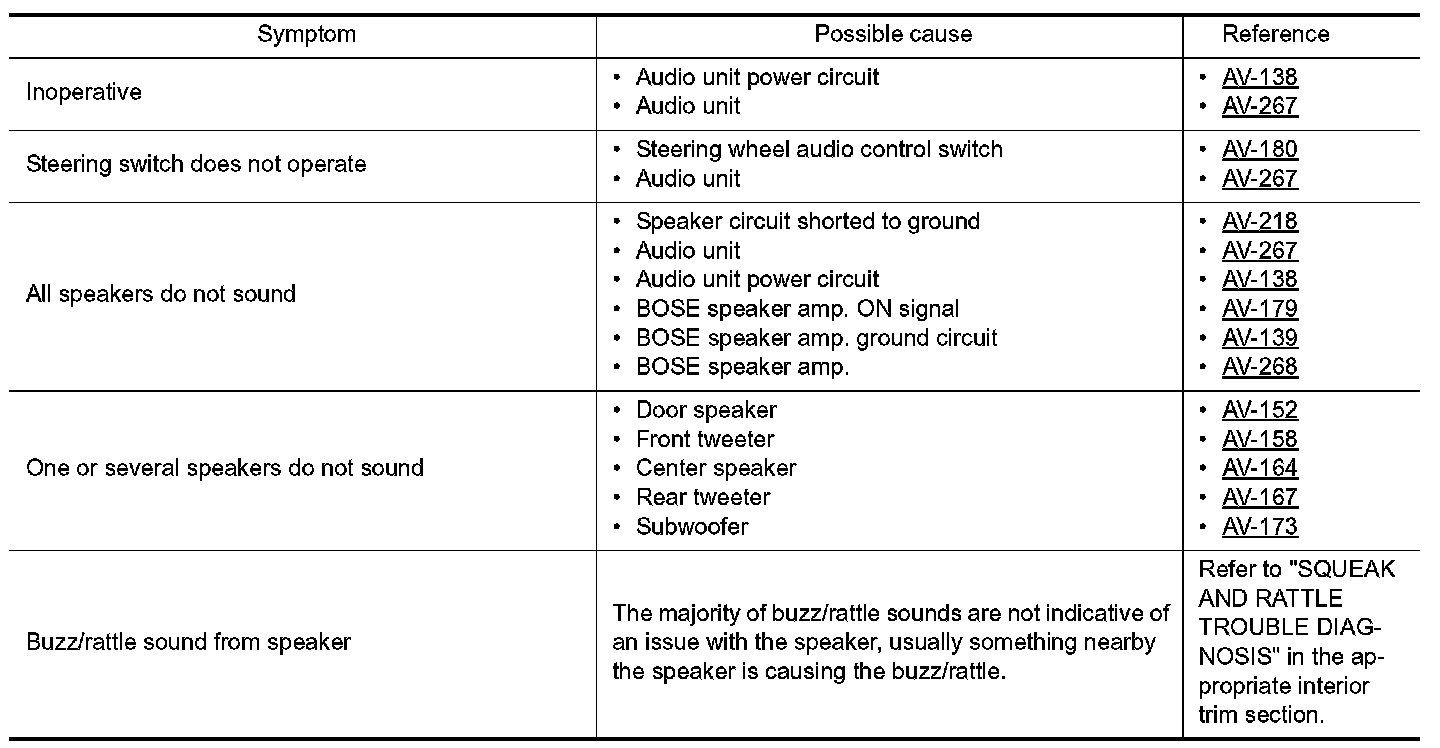

AUDIO SYSTEM







CD







SATELLITE RADIO







HANDS-FREE PHONE

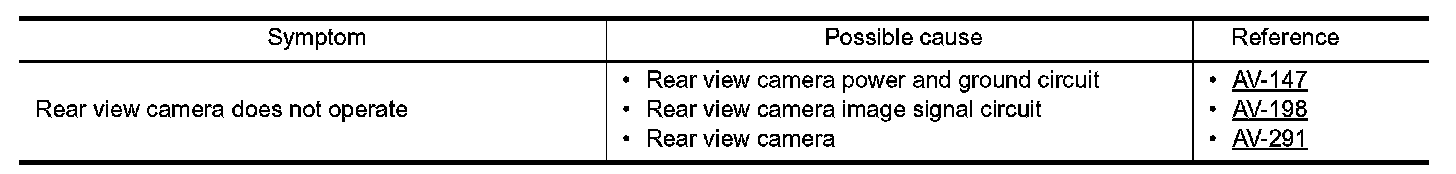

REAR VIEW CAMERA
