BCM




DIAGNOSIS SYSTEM (BCM)

MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT)

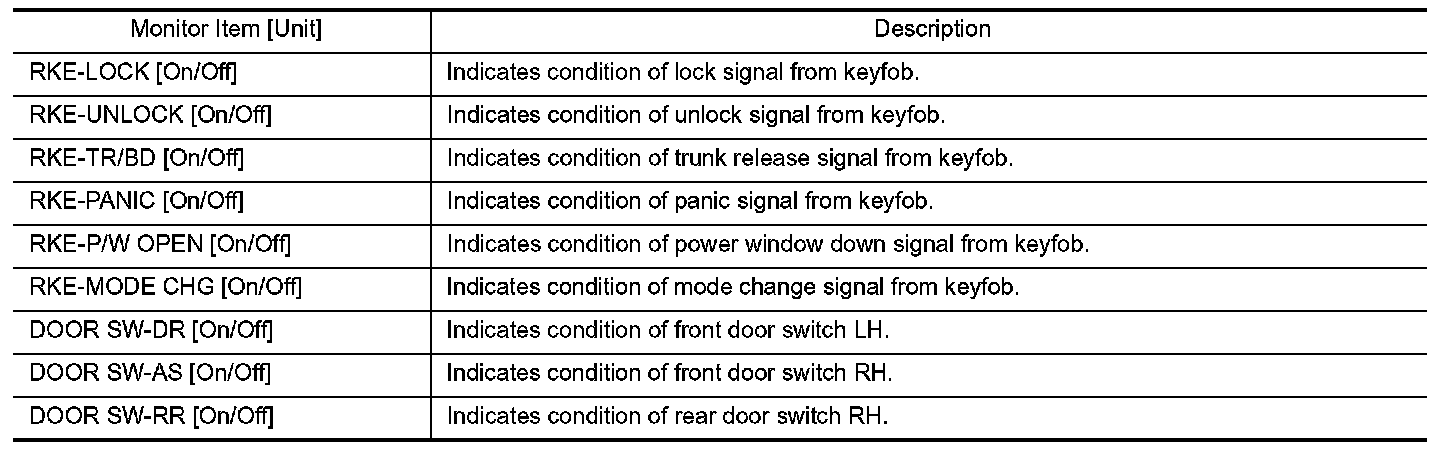

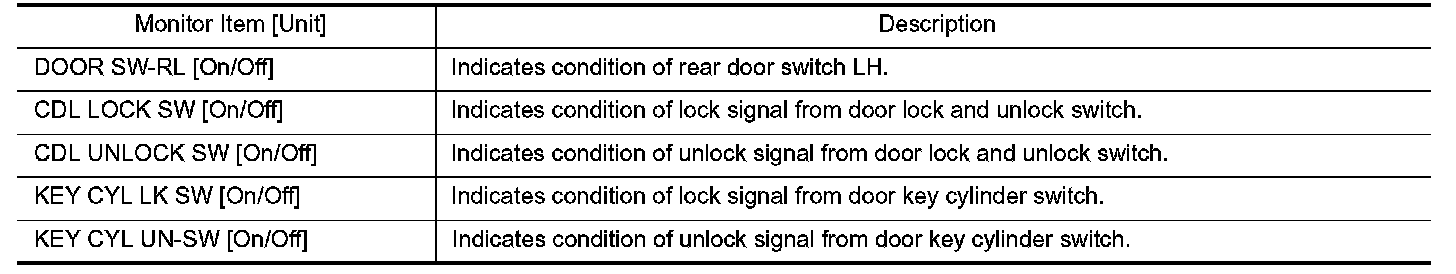

DATA MONITOR

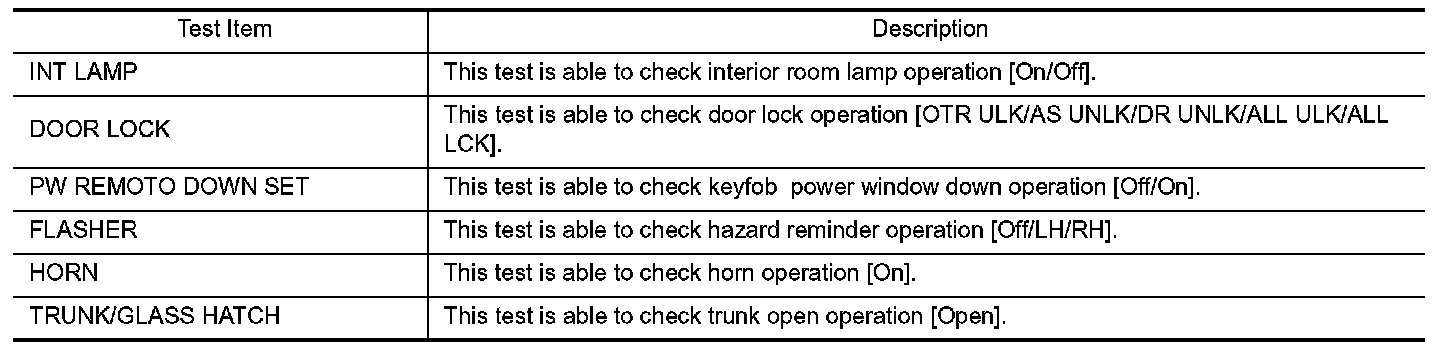

ACTIVE TEST







WORK SUPPORT
