Bose Audio Without Navigation

USB CONNECTOR

Removal and Installation

Removal
1.Remove the center console assembly. Removal And Installation.

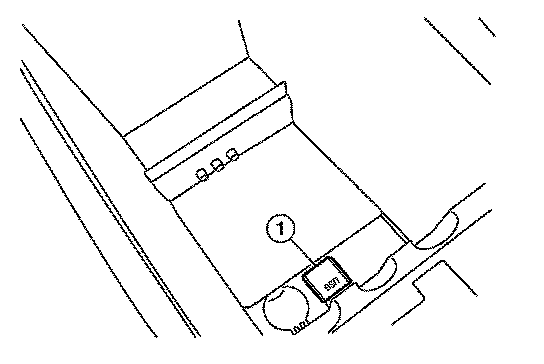

2.Push the pawl from the back of the center console to remove the
USB interface (1).
Installation
Installation is in the reverse order of removal.
