FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2012
>>
Altima L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Collision Avoidance and Parking Assist Systems
>>
Locations
>>
Without Navigation
>>
Sedan
Sedan
REAR VIEW MONITOR SYSTEM

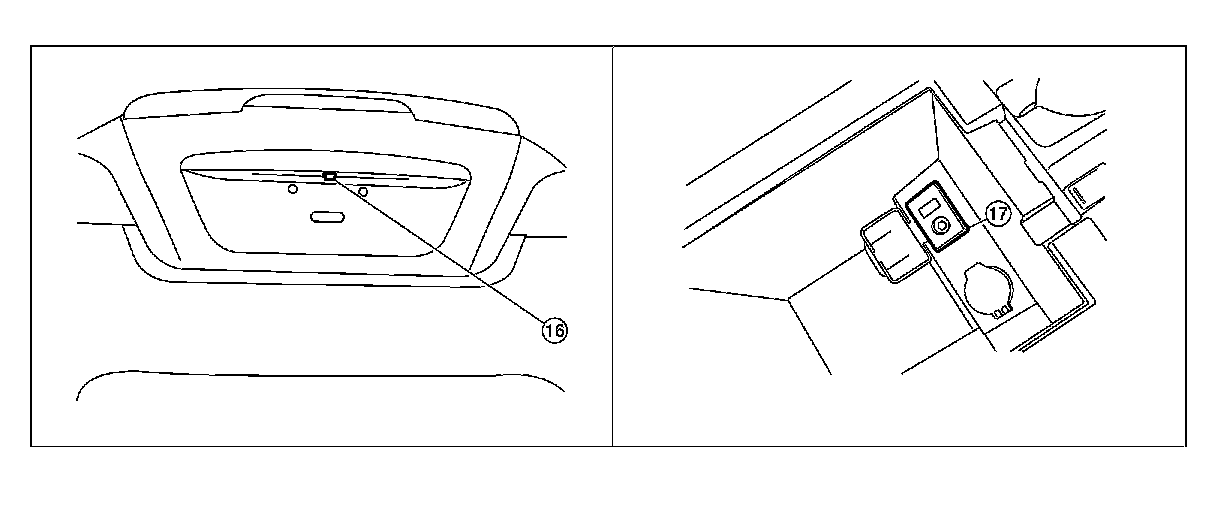

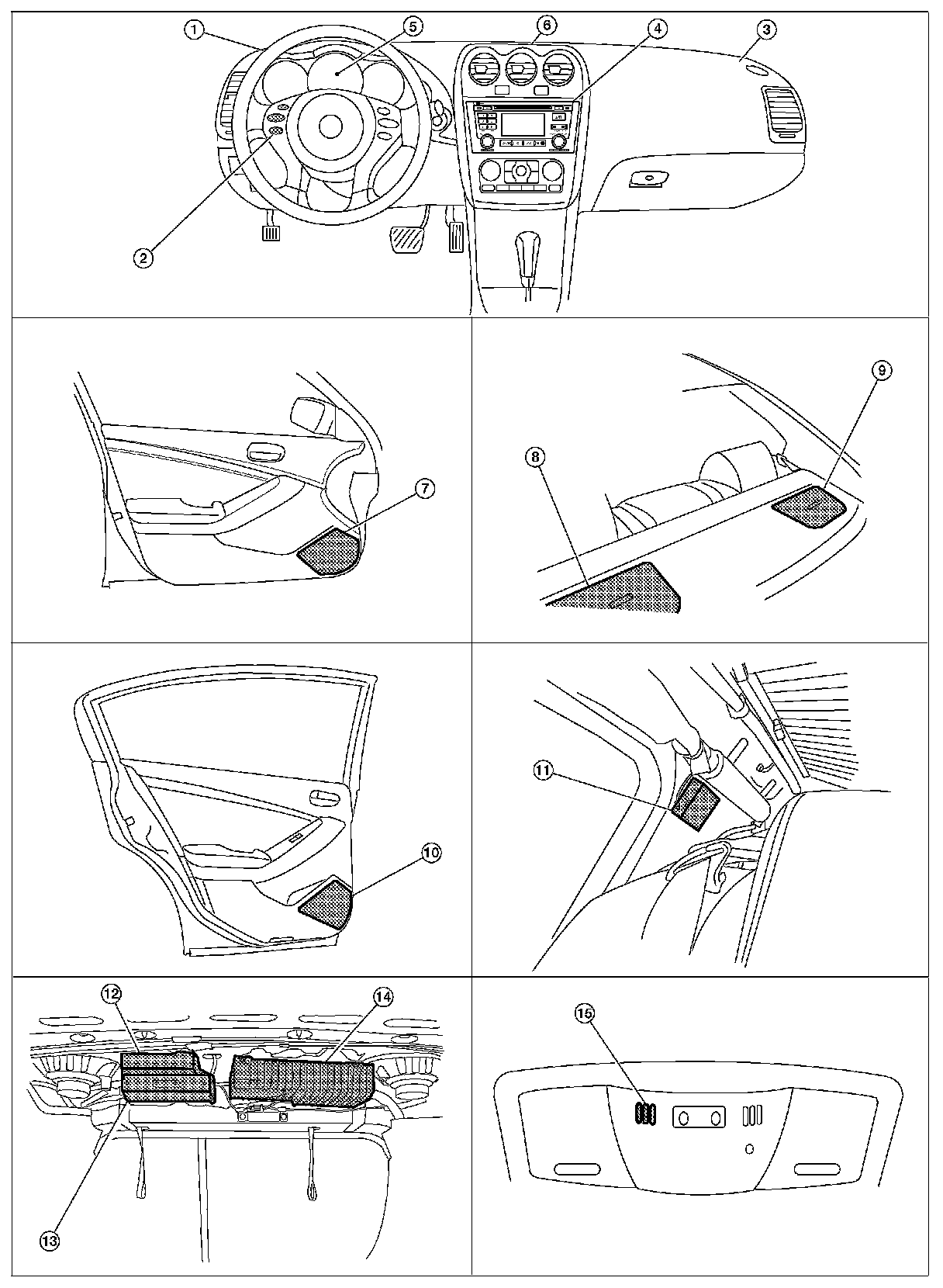

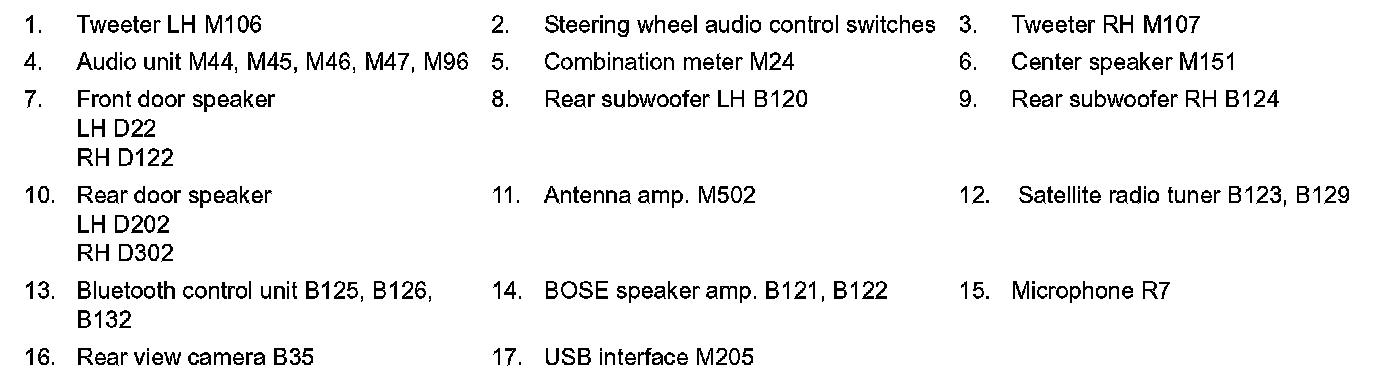

Component Parts Location (Sedan)
