Coupe




IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

Reference Value

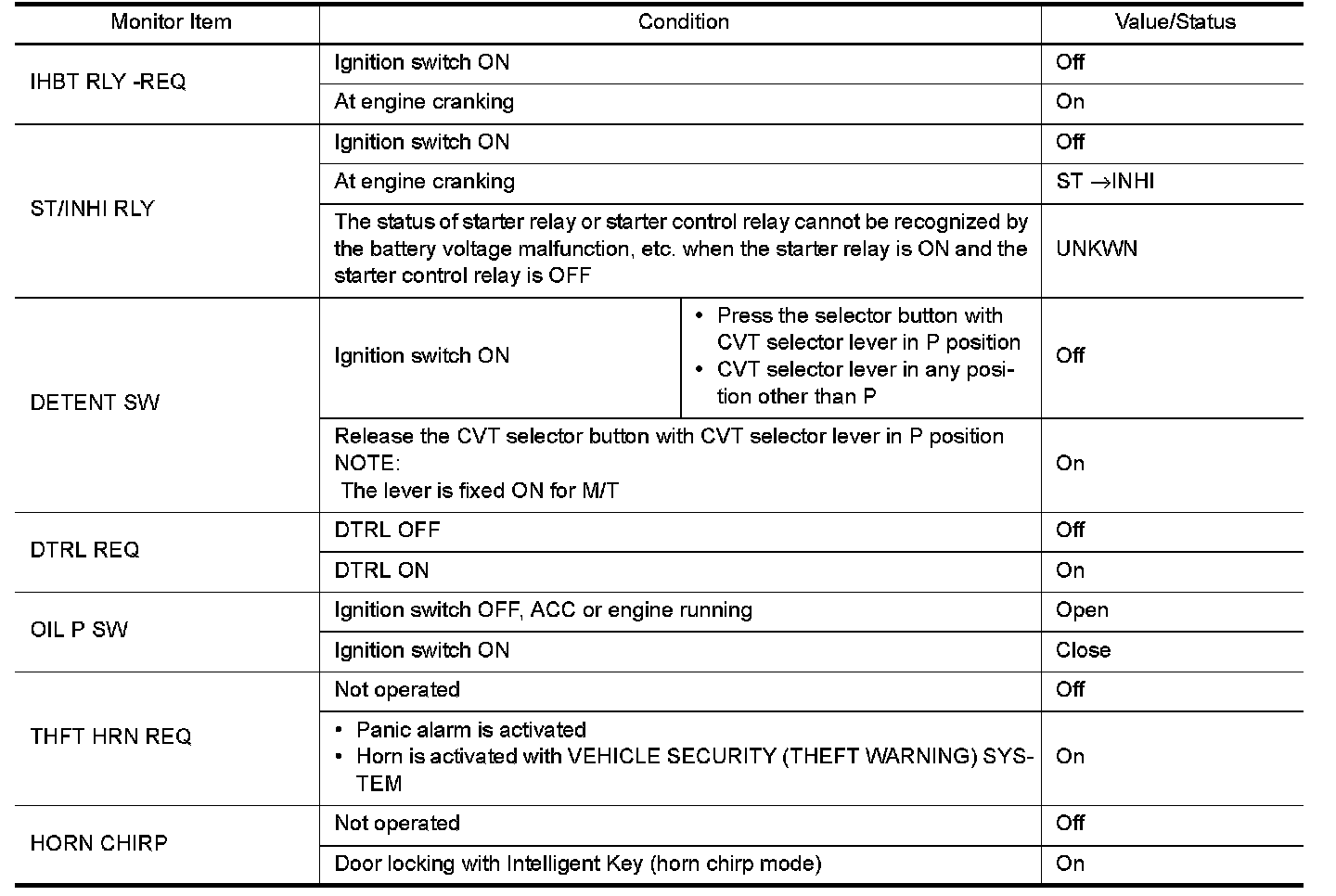

VALUES ON THE DIAGNOSIS TOOL











TERMINAL LAYOUT

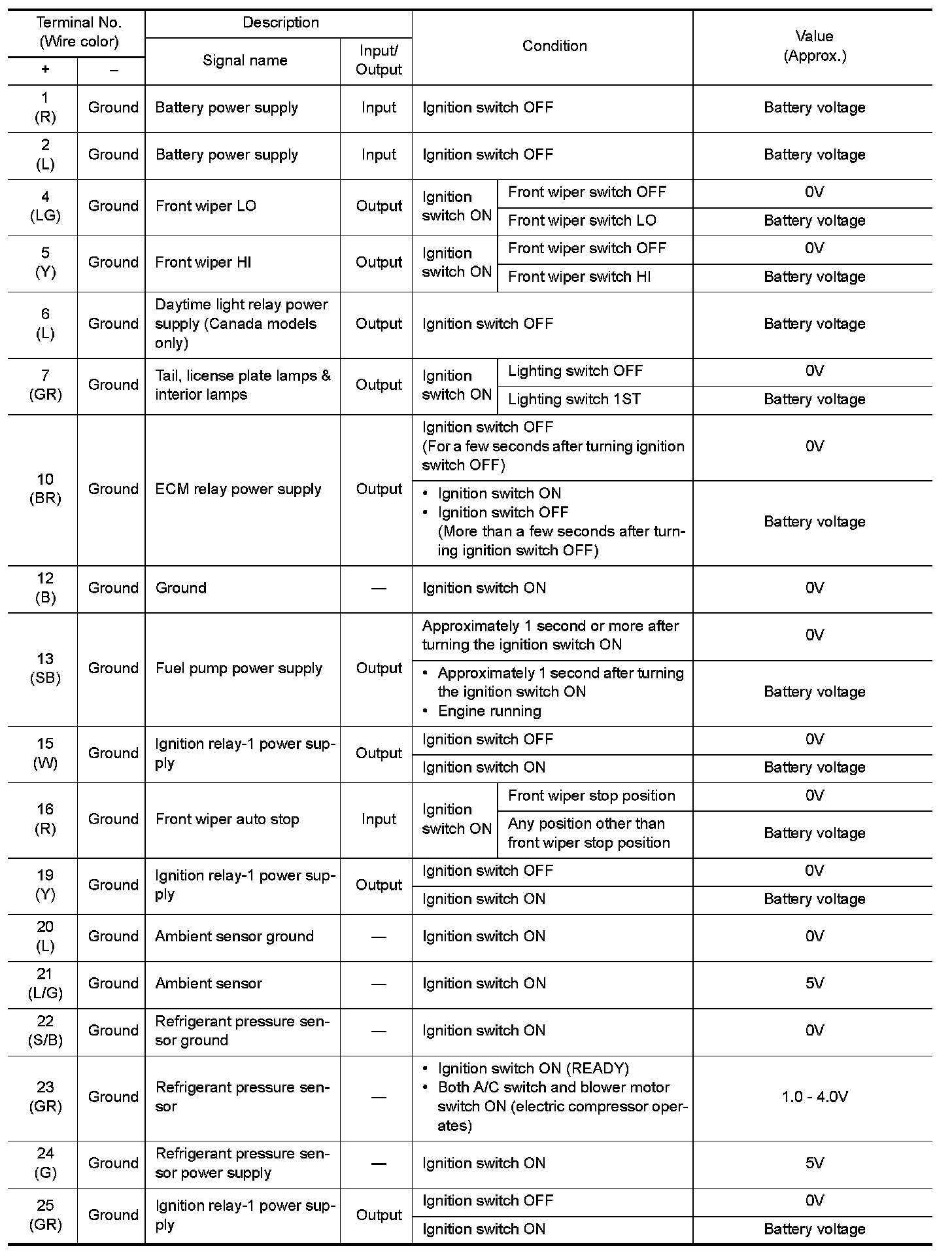

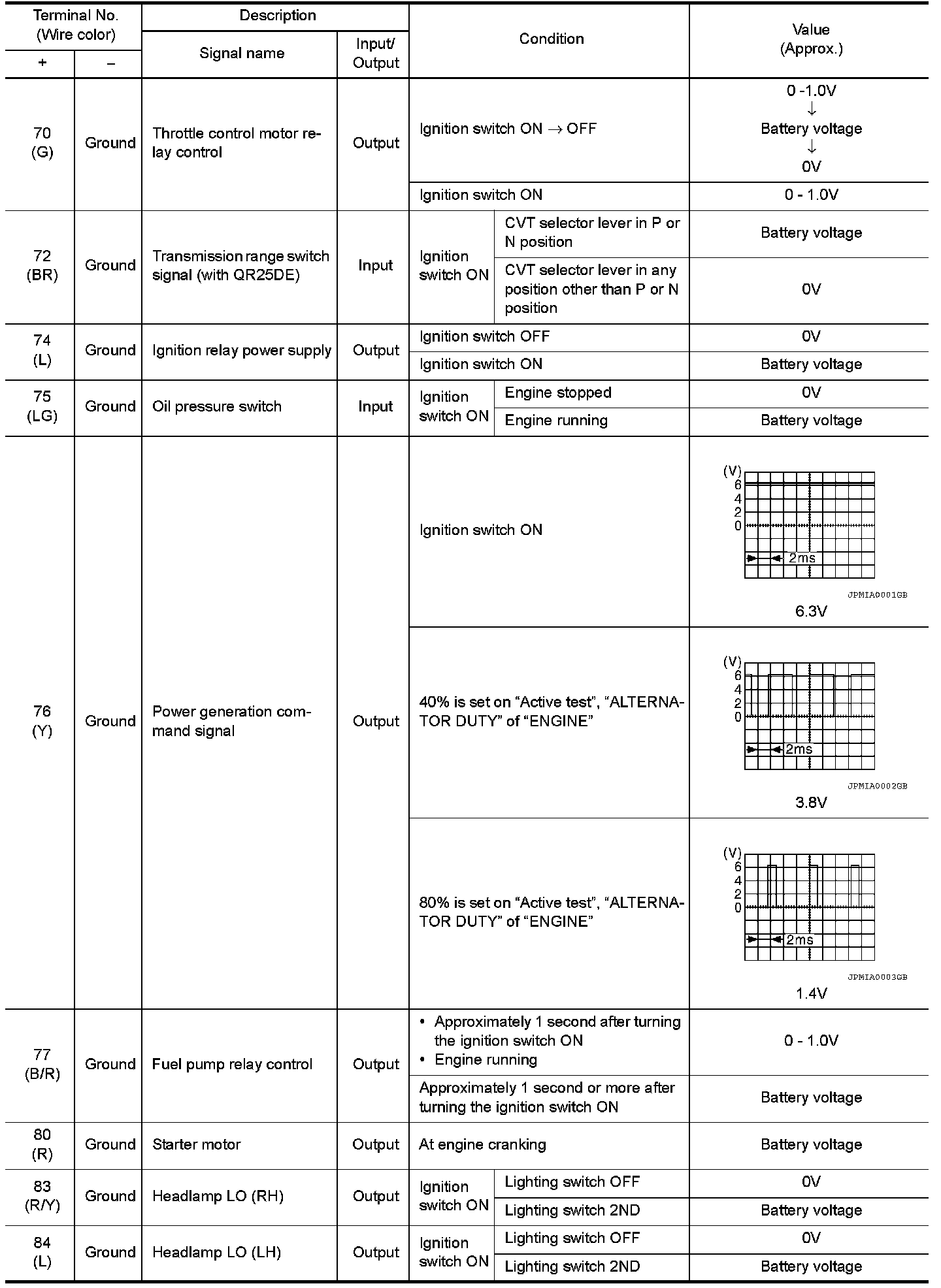

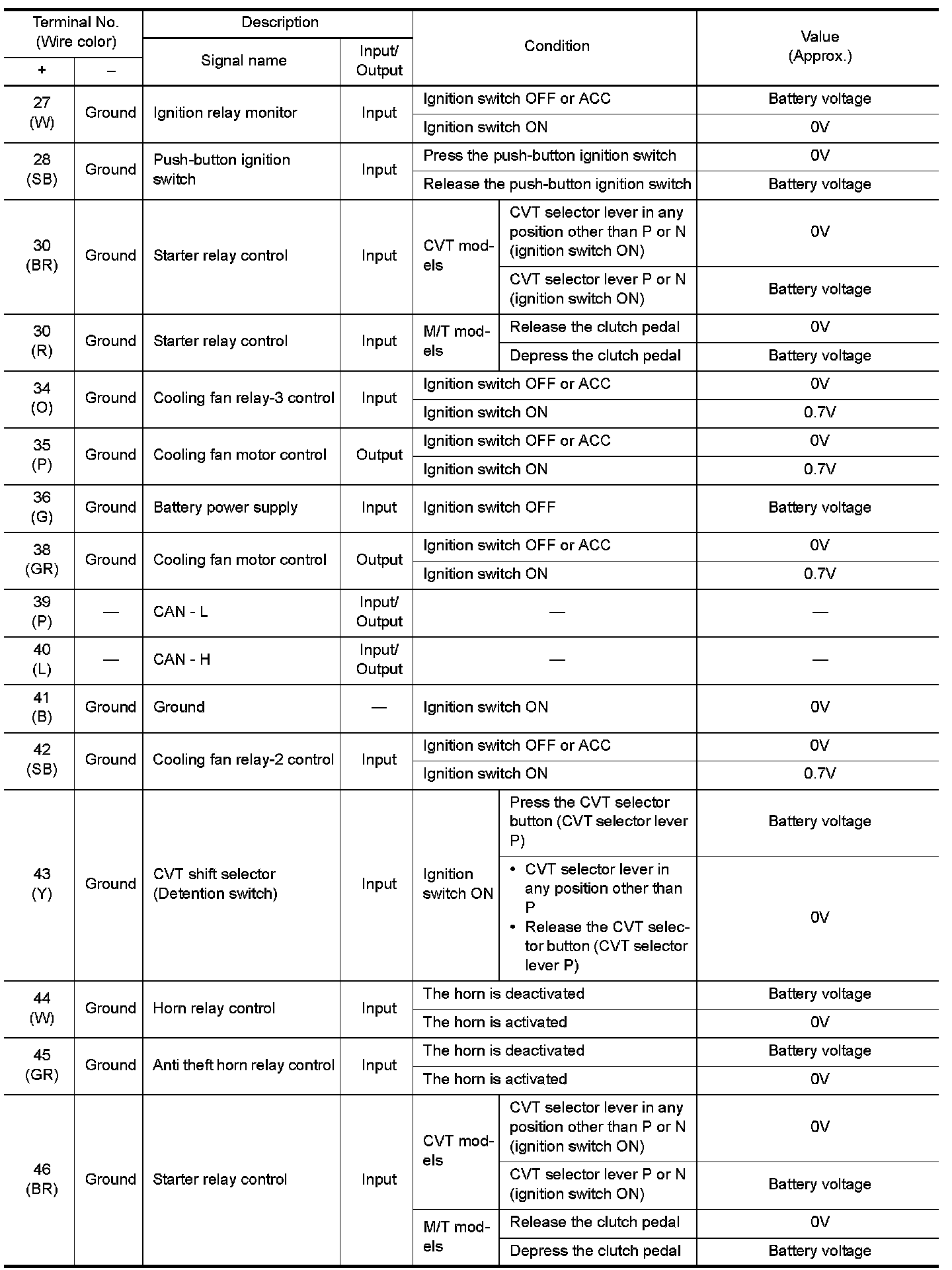

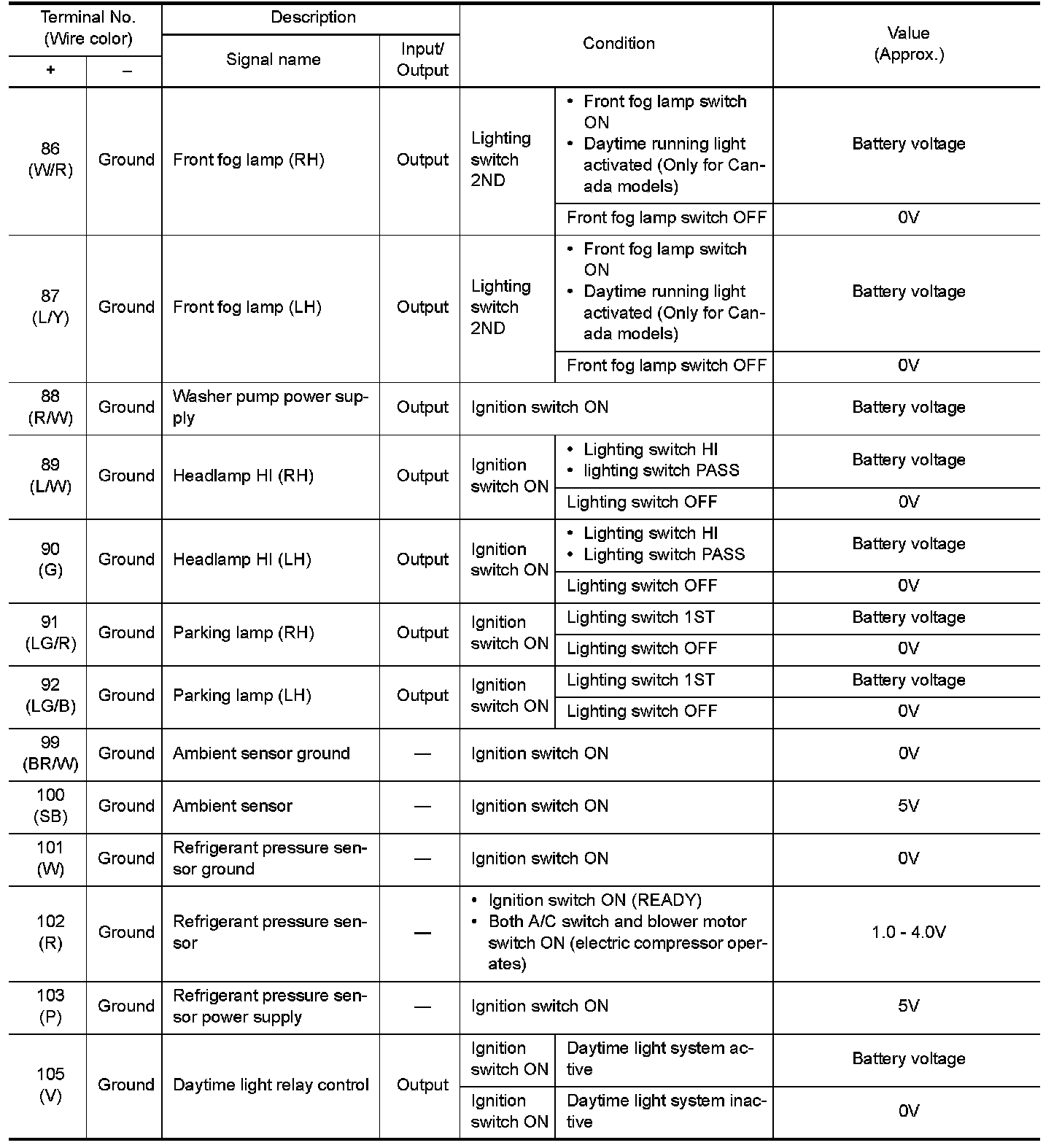

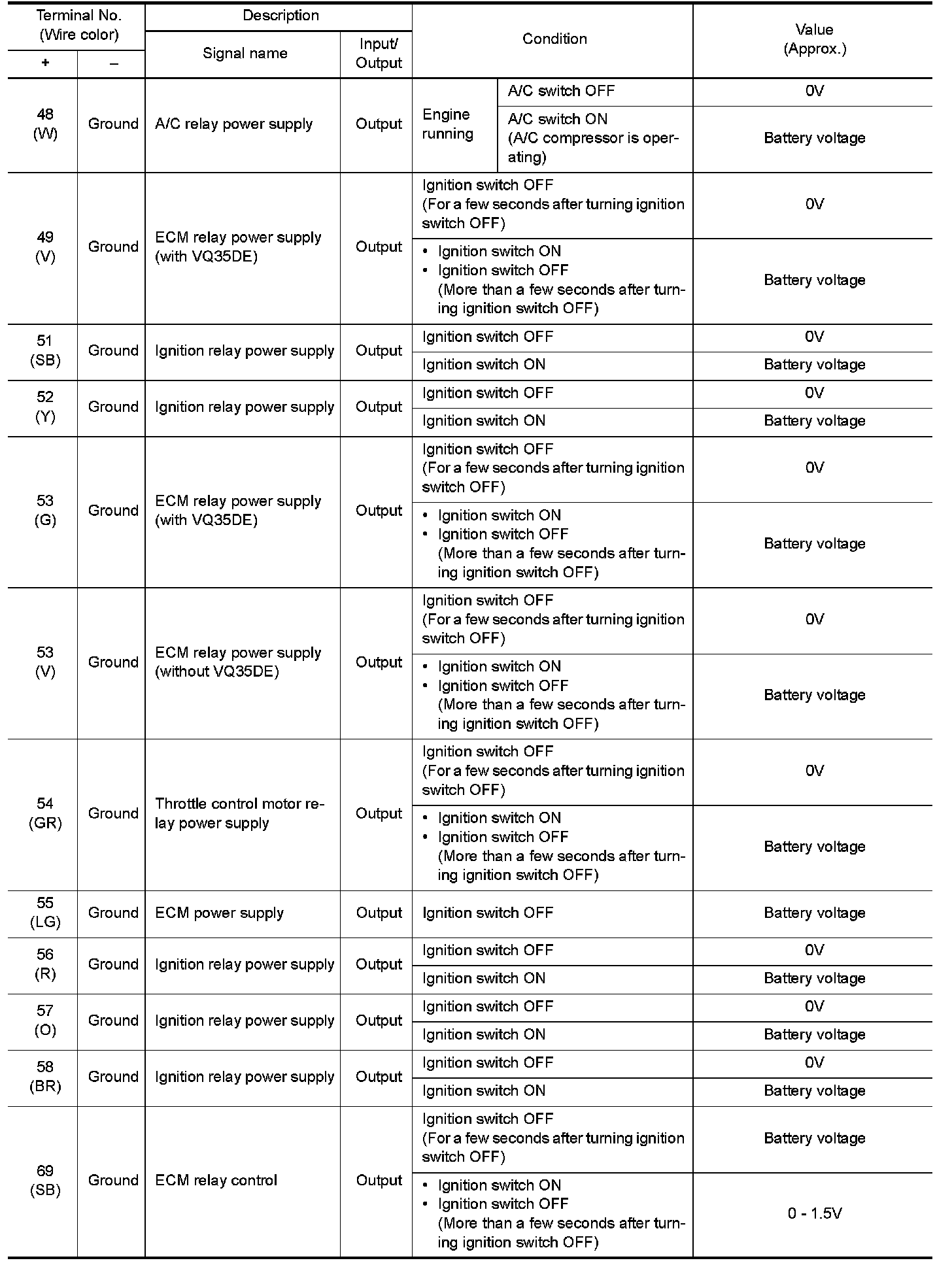

PHYSICAL VALUES
