With Remote Keyless Entry




VEHICLE SECURITY SYSTEM

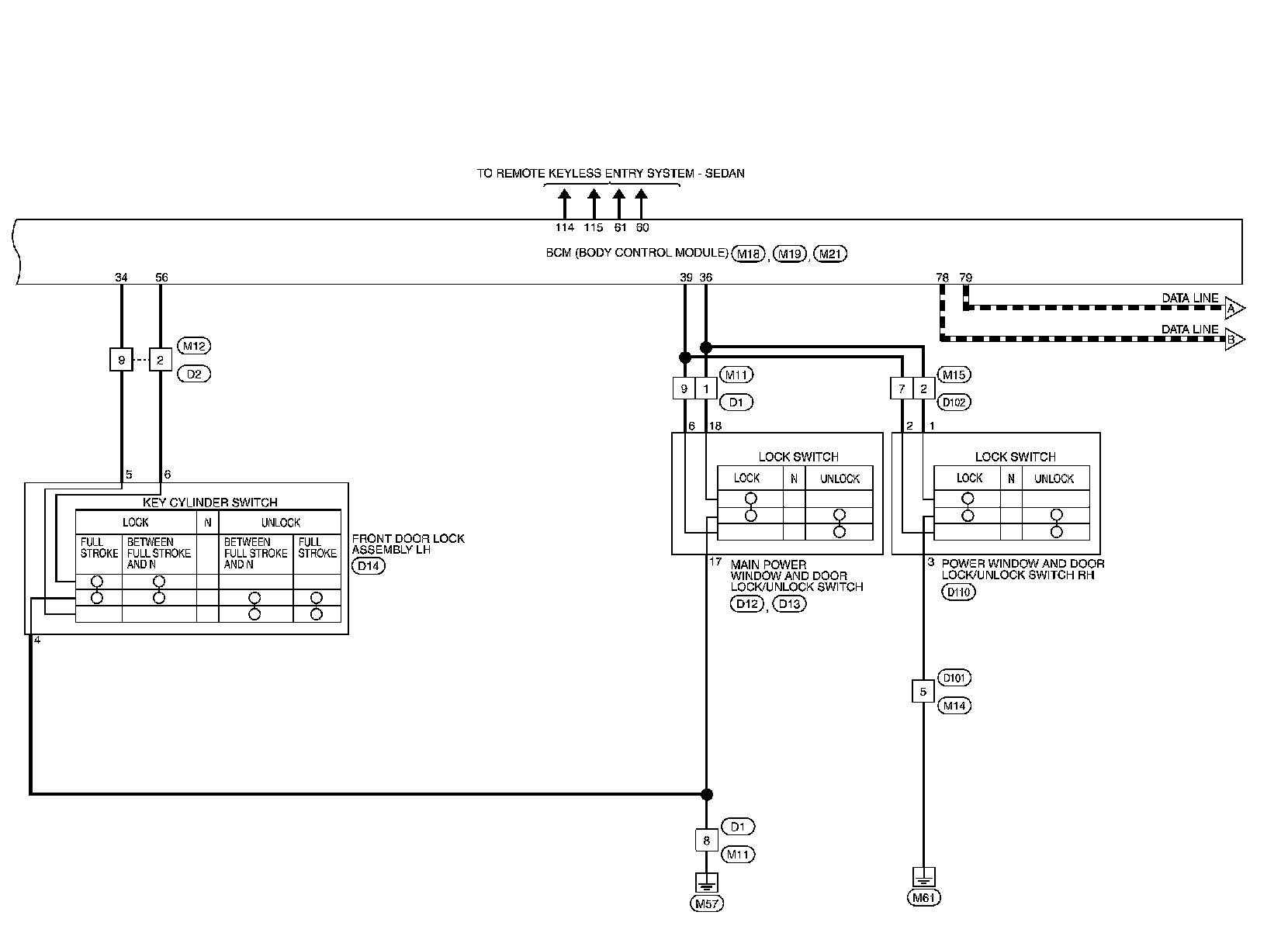

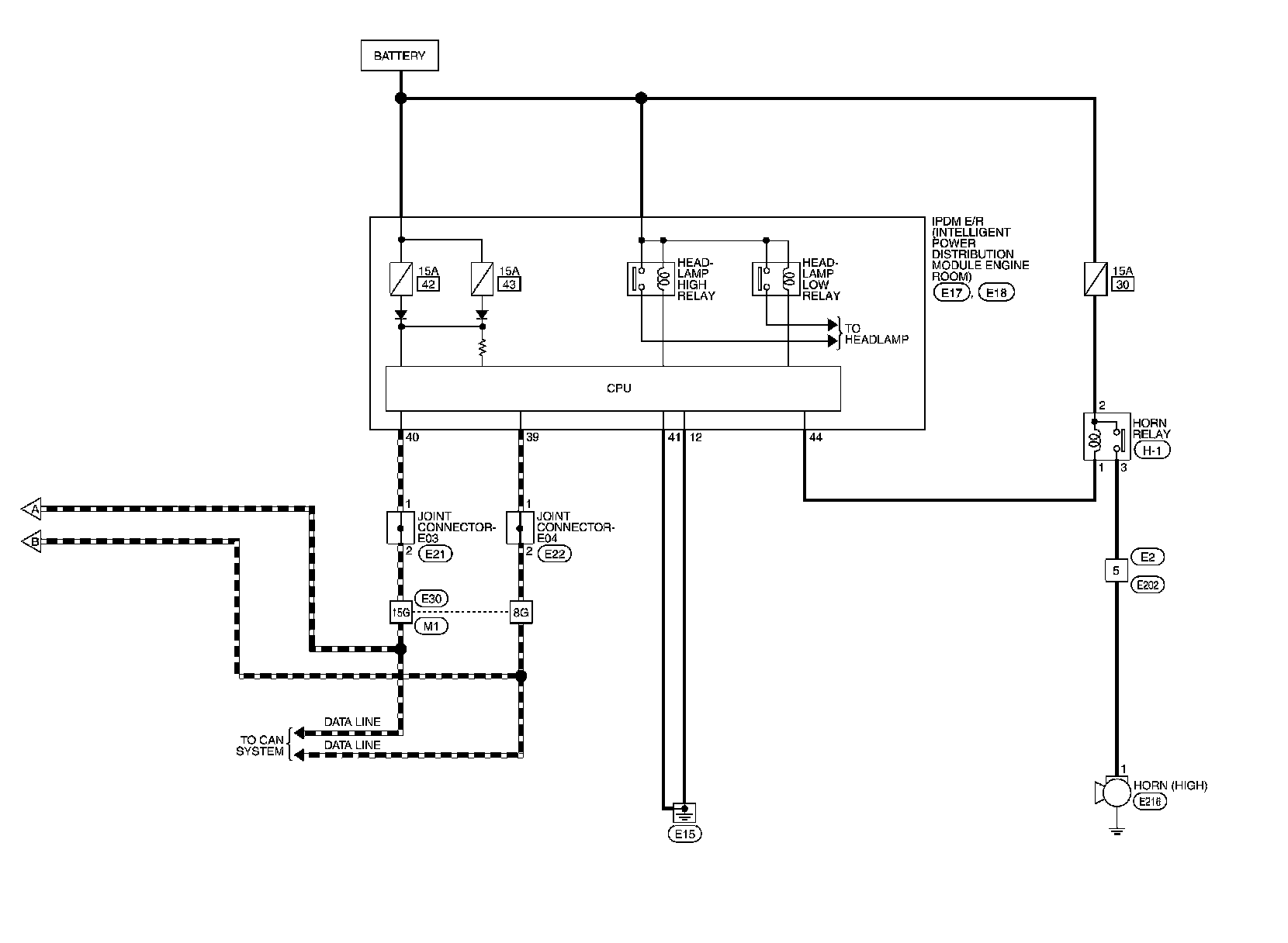

Wiring Diagram - Sedan With Remote Keyless Entry
