Meter System

DTC Logic

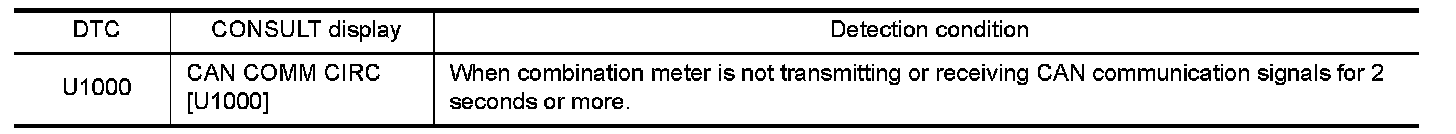

DTC DETECTION LOGIC








Diagnosis Procedure

Symptom: Displays "CAN COMM CIRC [U1000]" as a self-diagnosis result of combination meter.

1. CHECK CAN COMMUNICATION

Select "SELF-DIAG RESULTS" mode for "METER/M&A" with CONSULT.
- Go to "LAN system". CAN Communication Signal Chart.
