ABS

U1000 CAN COMM CIRCUIT

Description

CAN communication allows a high rate of information transmission through the two communication lines (CAN
H line, CAN L line) connecting various control units in the system. Each control unit transmits/receives data but selectively reads required data only.


DTC Logic

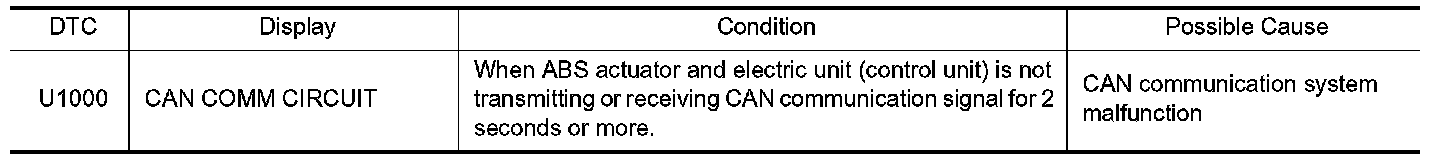

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. CHECK SELF DIAGNOSTIC RESULT

With CONSULT.
1.Turn the ignition switch OFF to ON.
2.Perform self diagnostic result.
Is DTC U1000 detected?
YES- Proceed to diagnosis procedure. Refer to "Diagnosis Procedure".
NO- Inspection End.


Diagnosis Procedure


1. CONNECTOR INSPECTION

1.Turn ignition switch OFF.
2.Disconnect ABS actuator and electric unit (control unit) connector.
3.Check terminals for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or replace terminals.
4.Reconnect connector and perform self diagnostic result. ABS.
Is DTC U1000 detected?
YES- Trouble Diagnosis Flow Chart.
NO- Inspection End.
