Without Intelligent Key

B2191, P1615 DIFFERENCE OF KEY

Description

Performs ID verification through BCM and keyfob when push-button ignition switch is pressed.
Prohibits the starting of the engine when an unregistered ID of keyfob is used.


DTC Logic

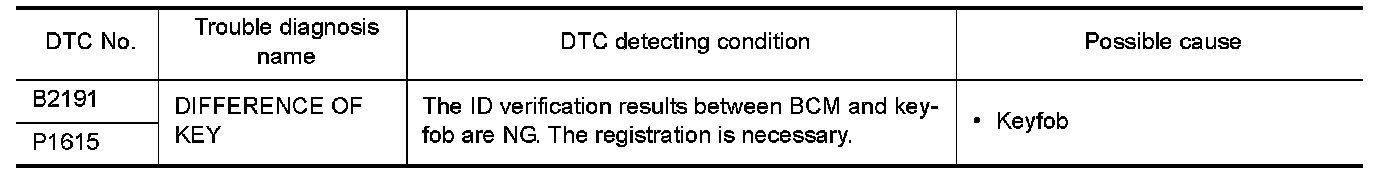

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Insert the Intelligent Key in the key slot.
2.Press the push-button ignition switch.
3.Check "Self Diagnostic Result" with CONSULT.
Is DTC detected?
YES- Refer to "Diagnosis Procedure".
NO- Inspection End.


Diagnosis Procedure


1. PERFORM INITIALIZATION

Perform initialization with CONSULT. Re-register all keyfobs.
For initialization and registration of keyfob, refer to CONSULT Operation Manual.
Can the system be initialized and can the engine be started with re-registered keyfob?
YES- Keyfob was unregistered.
NO-BCM is malfunctioning.
- Replace BCM. Service and Repair.
- Perform initialization again.
