Without Intelligent Key

B2190, P1610 NATS ANTENNA AMP

Description

Performs ID verification through BCM and keyfob when push-button ignition switch is pressed.
Prohibits the starting of the engine when an unregistered ID of keyfob is used.


DTC Logic

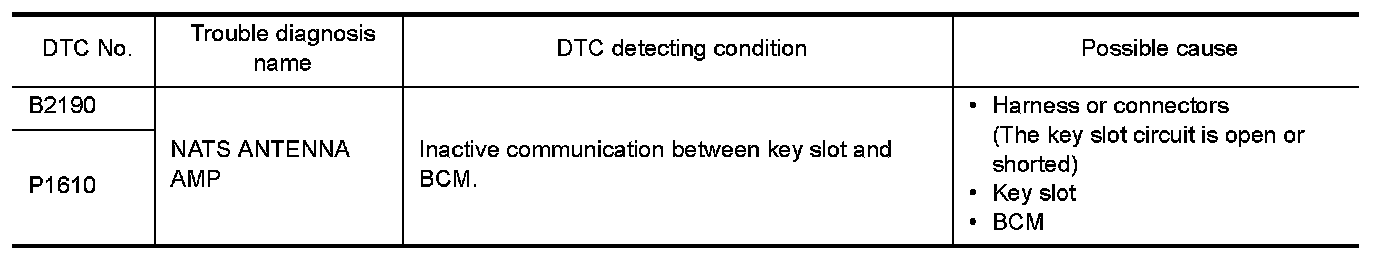

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Insert keyfob into the key slot.
2.Check "Self Diagnostic Result" with CONSULT.
Is DTC detected?
YES- Refer to "Diagnosis Procedure".
NO- GO TO 2

2. PERFORM DTC CONFIRMATION PROCEDURE

1.Press the push-button ignition switch.
2.Check "Self Diagnostic Result" with CONSULT.
Is DTC detected?
YES- Refer to "Diagnosis Procedure".
NO- Inspection End.


Diagnosis Procedure

Regarding Wiring Diagram information, With Remote Keyless Entry.

1. INSPECTION START

Check the case in which DTC is detected.
- Case1: It is detected when keyfob is inserted into key slot.
- Case2: It is detected after keyfob is inserted into key slot and push-button ignition switch is pressed.
In which case is DTC detected?
Case1. - GO TO 2
Case2. - GO TO 4

2. CHECK KEY SLOT INPUT SIGNAL

1.Turn ignition switch OFF.
2.Disconnect key slot harness connector.

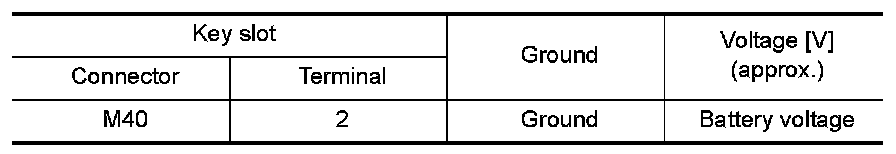

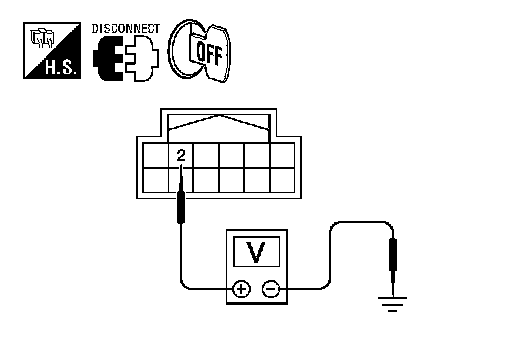

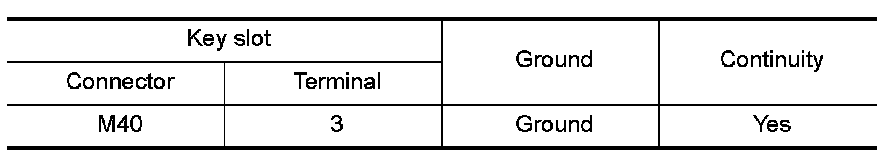

3.Check voltage between key slot harness connector and ground.





Is the inspection result normal?
YES- Replace key slot. Without Intelligent Key.
NO- GO TO 3

3. CHECK KEY SLOT CIRCUIT

1.Disconnect BCM harness connector.

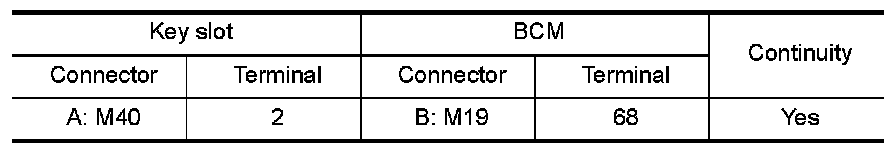

2.Check continuity between key slot harness connector M40 (A) terminal 2 and BCM harness connector M19 (B) terminal 68.

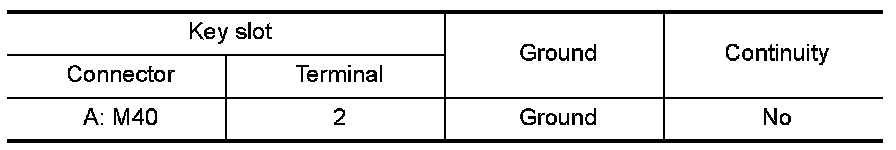

3.Check continuity between key slot harness connector M40 (A) terminal 2 and ground.





Is the inspection result normal?
YES- GO TO 8
NO- Repair harness or connector.

4. CHECK PUSH-IGNITION SWITCH OPERATION

Press push-button ignition switch and check if it turns ON.
Does ignition switch turn to ON?
YES- GO TO 5
NO- GO TO 7

5. CHECK KEY SLOT COMMUNICATION SIGNAL

1.Turn ignition switch OFF.
2.Disconnect key slot harness connector.

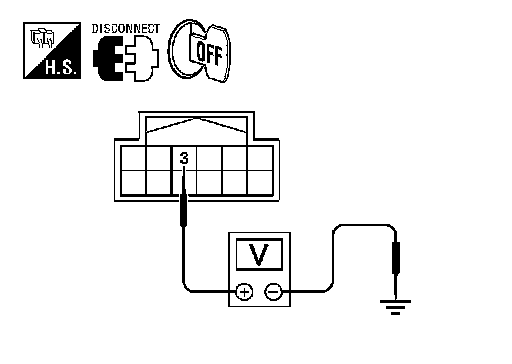

3.Check voltage between key slot harness connector and ground.





Is the inspection result normal?
YES- Replace key slot. Without Intelligent Key.
NO- GO TO 6

6. CHECK KEY SLOT COMMUNICATION SIGNAL CIRCUIT

1.Disconnect BCM harness connector.

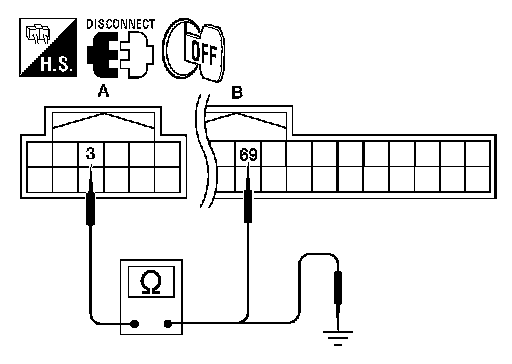

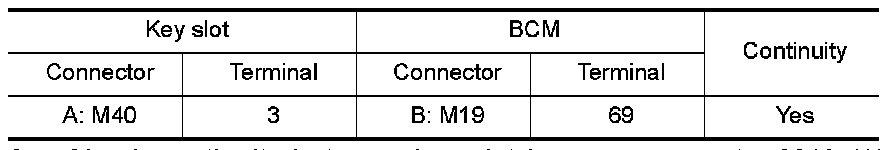

2.Check continuity between key slot harness connector M40 (A) terminal 3 and BCM harness connector M19 (B) terminal 69.

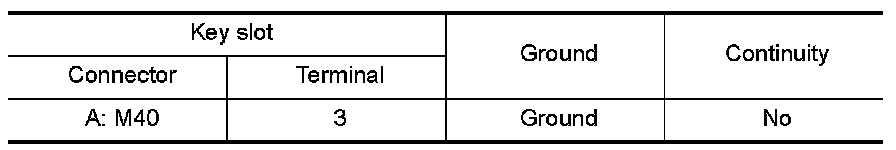

3.Check continuity between key slot harness connector M40 (A) terminal 3 and ground.





Is the inspection result normal?
YES- GO TO 8
NO- Repair harness or connector.

7. CHECK KEY SLOT GROUND CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect key slot harness connector.

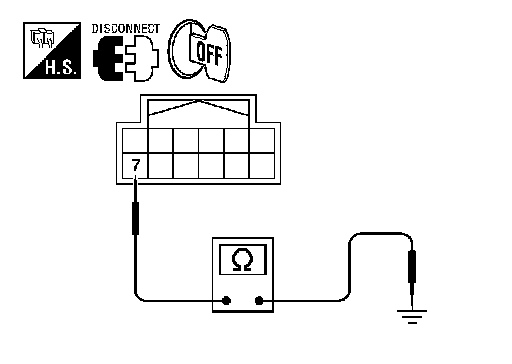

3.Check continuity between key slot harness connector and ground.





Is the inspection result normal?
YES- GO TO 8
NO- Repair harness or connector.

8. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- Inspection End.
