CVT RE0F10A Pressure Control Solenoid A

P0745 PRESSURE CONTROL SOLENOID A

Description

The line pressure solenoid valve regulates the oil pump discharge pressure to suit the driving condition in response to a signal sent from the TCM.


DTC Logic

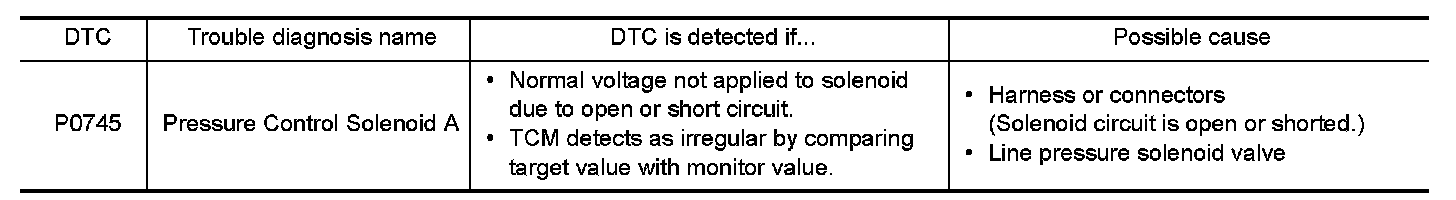

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE

NOTE:
If "DTC CONFIRMATION PROCEDURE" has been previously performed, always turn ignition switch OFF.
Then wait at least 10 seconds before performing the next test.

1. CHECK DTC DETECTION

With CONSULT
1.Turn ignition switch ON.
2.Start engine and wait at least 5 seconds.
3.Perform "SELF-DIAG RESULTS" mode for "TRANSMISSION".
With GST
Follow the procedure "With CONSULT".
Is "P0745" detected?
YES- Go to "Diagnosis Procedure".
NO- Check intermittent incident. Intermittent Incident.


Diagnosis Procedure


1. CHECK LINE PRESSURE SOLENOID VALVE

1.Turn ignition switch OFF.
2.Disconnect CVT unit connector.
3.Check resistance between CVT unit connector terminals.





Is the inspection result normal?
YES- GO TO 2.
NO- GO TO 4.

2. CHECK CIRCUIT BETWEEN TCM AND LINE PRESSURE SOLENOID VALVE (PART 1)

1.Disconnect the TCM connector.
2.Check continuity between TCM harness connector terminals and CVT unit harness connector terminals.





Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace damaged parts.

3. CHECK CIRCUIT BETWEEN TCM AND LINE PRESSURE SOLENOID VALVE (PART 2)

Check continuity between TCM harness connector terminals and ground.





Is the inspection result normal?

YES- Check intermittent incident. Intermittent Incident.
NO- Repair or replace damaged parts.

4. CHECK TERMINAL CORD ASSEMBLY (PART 1)

1.Remove terminal cord assembly. Exploded View.
2.Check continuity between CVT unit harness connector terminals and control valve harness connector terminals.





Is the inspection result normal?
YES- GO TO 5.
NO- Repair or replace damaged parts.

5. CHECK TERMINAL CORD ASSEMBLY (PART 2)

Check terminal cord assembly harness cladding for damage.
Is the inspection result normal?
YES- Replace the transaxle assembly. Removal And Installation.
NO- Repair or replace damaged parts.
