Sensor Power Supply For USA And Canada

P0643 SENSOR POWER SUPPLY

DTC Logic


DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8V at idle.
- GO TO 2.

2. PERFORM DTC CONFIRMATION PROCEDURE

1.Start engine and let it idle for 1 second.
2.Check DTC.
Is DTC detected?
YES- Go to "Diagnosis Procedure".
NO- INSPECTION END


Diagnosis Procedure


1. CHECK GROUND CONNECTION

1.Turn ignition switch OFF.
2.Check ground connection E9. Refer to Ground Inspection in Circuit Inspection.
Is the inspection result normal?
YES- GO TO 2.
NO- Repair or replace ground connection.

2. CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT

1.Disconnect accelerator pedal position (APP) sensor harness connector.
2.Turn ignition switch ON.

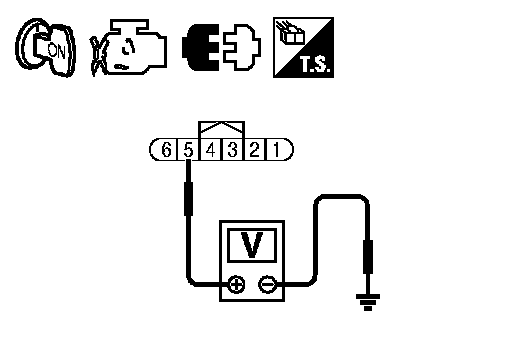

3.Check the voltage between APP sensor harness connector and ground.






Is the inspection result normal?
YES- GO TO 7.
NO- GO TO 3.

3. CHECK SENSOR POWER SUPPLY CIRCUITS

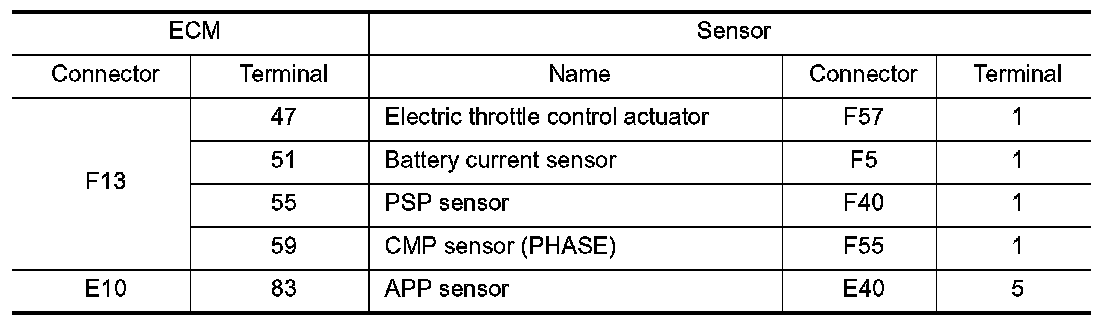

Check harness for short to power and short to ground, between the following terminals.





Is the inspection result normal?
YES- GO TO 4.
NO- Repair short to ground or short to power in harness or connectors.

4. CHECK COMPONENTS

Check the following.
- Battery current sensor (Battery Current Sensor For USA And Canada.)
- Power steering pressure sensor (PSP Sensor For USA And Canada.)
- Camshaft position sensor (PHASE) (CMP Sensor (Phase) For USA And Canada.)
Is the inspection result normal?
YES- GO TO 5.
NO- Replace malfunctioning component.

5. CHECK TP SENSOR

TP Sensor For USA And Canada.
Is the inspection result normal?
YES- GO TO 9.
NO- GO TO 6.

6. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

Replace electric throttle control actuator. Service and Repair.
- INSPECTION END

7. CHECK APP SENSOR

APP Sensor For USA And Canada.
Is the inspection result normal?
YES- GO TO 9.
NO- GO TO 8.

8. REPLACE ACCELERATOR PEDAL ASSEMBLY

Replace accelerator pedal assembly. Removal And Installation.
- INSPECTION END

9. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- INSPECTION END
