BRC

C1111 PUMP MOTOR

Description


PUMP

The pump returns the brake fluid stored in the reservoir to the master cylinder by reducing the pressure.

MOTOR

The motor drives the pump according to the signals transmitted by the ABS actuator and electric unit (control unit).


DTC Logic

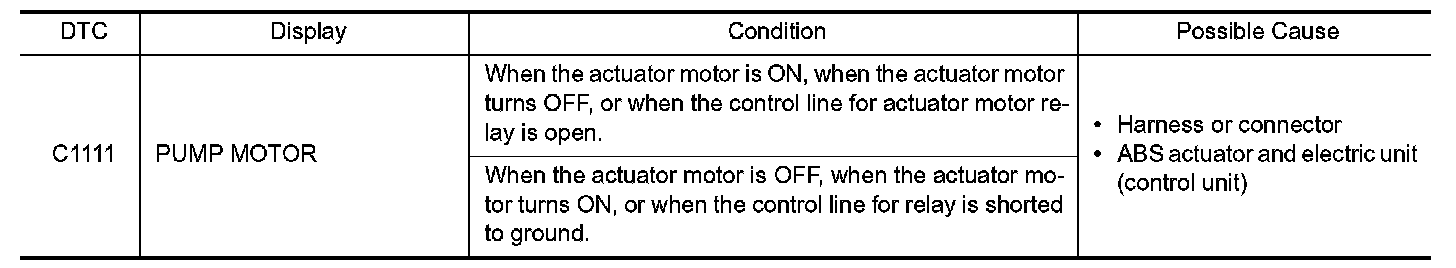

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE


1. CHECK SELF DIAGNOSTIC RESULT

With CONSULT.
1.Turn the ignition switch OFF to ON.
2.Perform self diagnostic result.
Is DTC C1111 detected?
YES- Proceed to diagnosis procedure. Refer to "Diagnosis Procedure".
NO- Inspection End.


Diagnosis Procedure

Regarding Wiring Diagram information, Coupe or VDC/TCS/ABS.

1. CONNECTOR INSPECTION

1.Turn ignition switch OFF.
2.Disconnect ABS actuator and electric unit (control unit) connector.
3.Check terminals for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or replace terminals.
4.Reconnect connector and perform self diagnostic result. VDC/TCS/ABS.
Is DTC C1111 detected?
YES- GO TO 2
NO- Poor connection of connector terminals. Repair or replace connector.

2. CHECK ABS MOTOR AND MOTOR RELAY POWER SUPPLY CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect ABS actuator and electric unit (control unit) connector.

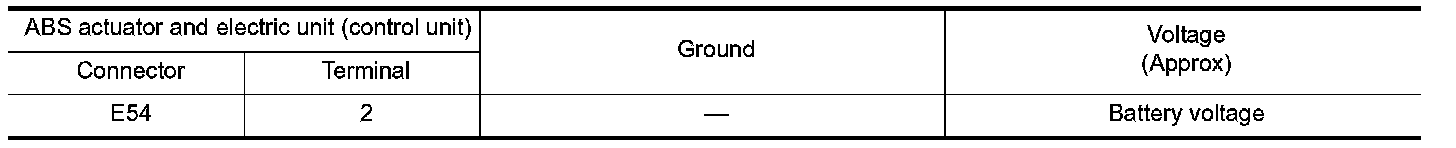

3.Check voltage between the ABS actuator and electric unit (control unit) connector E54 terminal 2 and ground.





Is the inspection result normal?
YES- GO TO 3
NO- Repair or replace malfunctioning components.

3. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) GROUND CIRCUIT

Check continuity between ABS actuator and electric unit (control unit) connector E54 terminals 1, 4 and ground.





Is the inspection result normal?
YES- Replace ABS actuator and electric unit (control unit). VDC/TCS/ABS.
NO- Repair or replace malfunctioning components.


Component Inspection


1. CHECK ACTIVE TEST

1.On "ACTIVE TEST", select "ABS MOTOR".
2.Touch On and Off on screen. Make sure motor relay and actuator relay operates as shown in table below.





Is the inspection result normal?
YES- Inspection End.
NO- Go to diagnosis procedure. Refer to "Diagnosis Procedure".


Special Repair Requirement


1. ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform the neutral position adjustment for the steering angle sensor, when replacing the ABS actuator and electric unit (control unit). Service and Repair.
- END
