With Intelligent Key

B261E VEHICLE TYPE

Description

There are two types of vehicles.
- HEV
- Conventional


DTC Logic

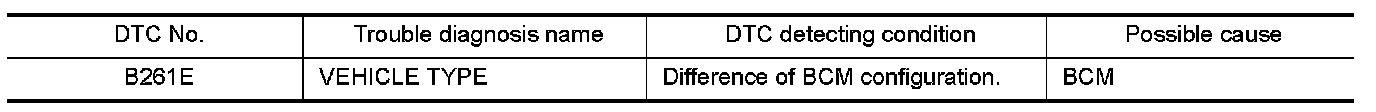

DTC DETECTION LOGIC

NOTE:
- If DTC B261E is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
With Intelligent Key.
- If DTC B261E is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to
With Intelligent Key.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON under the following conditions.
-Selector lever is in the P or N position
-Do not depress brake pedal
-Do not depress clutch pedal
2.Check "Self-diagnostic result" using CONSULT.
Is DTC detected?
YES- Go to "Diagnosis Procedure".
NO- Inspection End


Diagnosis Procedure


1. INSPECTION START

1.Turn ignition switch ON.
2.Check "Self-diagnostic result" using CONSULT.
3.Touch "ERASE".
4.Perform DTC Confirmation Procedure.
See "DTC Logic".
Is the 1st trip DTC B261E displayed again?
YES- Replace BCM. Service and Repair.
NO- Inspection End
