Without Intelligent Key

B2603 SHIFT POSITION STATUS

Description

BCM confirms the shift position with the following 2 signals.
- CVT selector lever
- P/N position switch


DTC Logic


DTC DETECTION LOGIC

NOTE:
- If DTC B2603 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
Without Intelligent Key.
- If DTC B2603 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to
Without Intelligent Key.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Start the engine under the following conditions and wait for at least 1 second.
-CVT selector lever is in the P position.
-Do not depress the brake pedal.
2.Shift to N and wait for at least 1 second.
3.Shift to any gear other than P or N and wait for at least 1 second.
4.Check "Self diagnostic result" with CONSULT.
Is DTC detected?
YES- Refer to "Diagnosis Procedure".
NO- Inspection End.


Diagnosis Procedure

Regarding Wiring Diagram information, With Remote Keyless Entry.

1. CHECK DTC WITH IPDM E/R

Check "Self diagnostic result" with CONSULT. Testing and Inspection.
Is the inspection result normal?
YES- GO TO 2
NO- Repair or replace malfunctioning parts.

2. CHECK TRANSMISSION RANGE SWITCH CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect TCM harness connector and BCM harness connector.

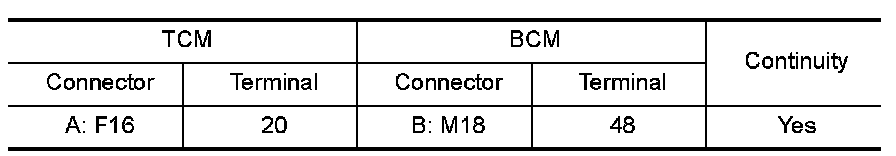

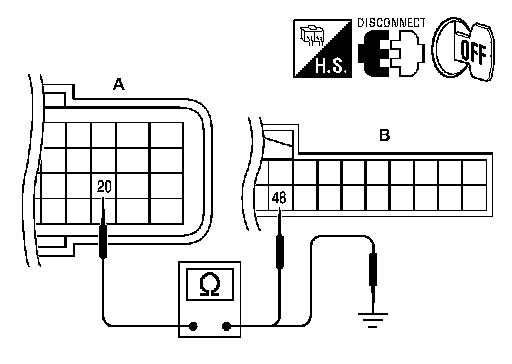

3.Check continuity between TCM harness connector F16 (A) terminal 20 and BCM harness connector M18 (B) terminal 48.

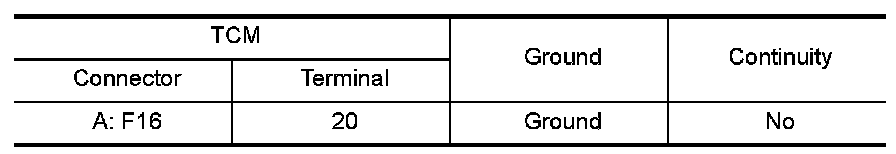

4.Check continuity between TCM harness connector F16 (A) terminal 20 and ground.





Is the inspection result normal?
YES- GO TO 3
NO- Repair harness or connector.

3. CHECK CVT SHIFT SELECTOR POWER SUPPLY

1.Turn ignition switch OFF.
2.Disconnect CVT shift selector (park position switch) harness connector.

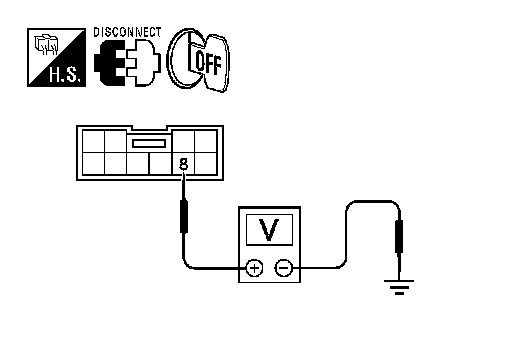

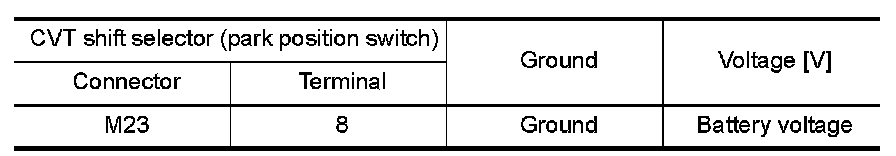

3.Check voltage between CVT shift selector (park position switch) harness connector and ground.





Is the inspection result normal?
YES- GO TO 5
NO- GO TO 4

4. CHECK CVT SHIFT SELECTOR POWER SUPPLY CIRCUIT

1.Disconnect BCM harness connector.

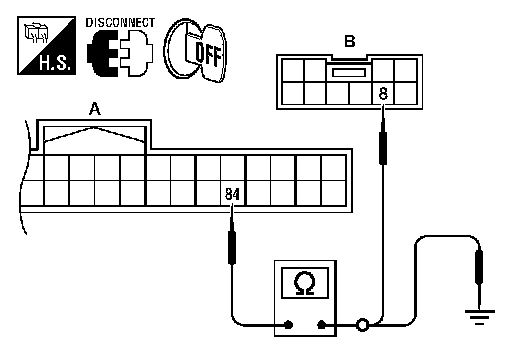

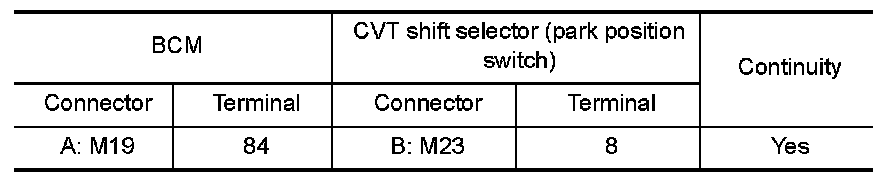

2.Check continuity between BCM harness connector M19 (A) terminal 84 and CVT shift selector (park position switch) harness connector M23 (B) terminal 8.

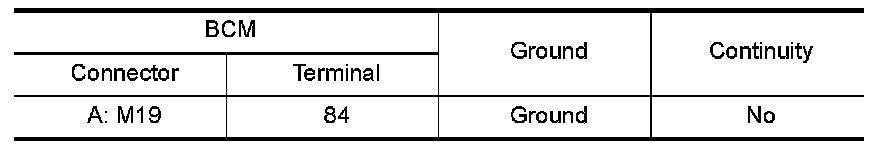

3.Check continuity between BCM harness connector M19 (A) terminal 84 and ground.





Is the inspection result normal?
YES- Replace BCM. Service and Repair.
NO- Repair harness or connector.

5. CHECK CVT SHIFT SELECTOR CIRCUIT

1.Disconnect BCM harness connector.

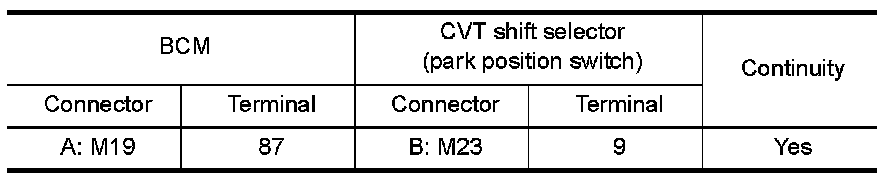

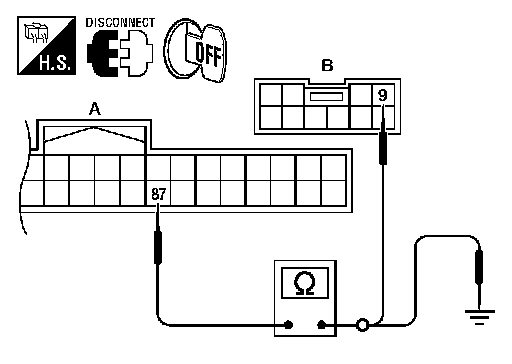

2.Check continuity between BCM harness connector M19 (A) terminal 87 and CVT shift selector (park position switch) harness connector M23 (B) terminal 9.

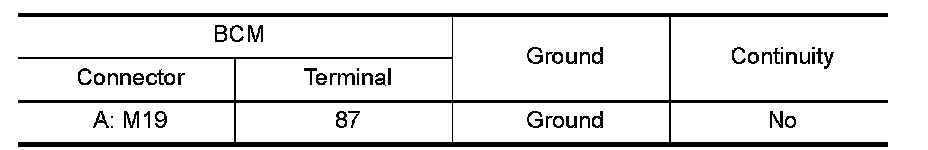

3.Check continuity between BCM harness connector M19 (A) terminal 87 and ground.





Is the inspection result normal?
YES- GO TO 6
NO- Repair harness or connector.

6. CHECK CVT SHIFT SELECTOR

Without Intelligent Key.
Is the inspection result normal?
YES- GO TO 7
NO- Replace CVT shift selector. Removal And Installation.

7. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- Inspection End.
SEC
