B2193, P1612 CHAIN OF ECM-IMMU

Description

BCM performs the ID verification with ECM that allows the engine to start. Start the engine if the ID is OK.
ECM prevents the engine from starting if the ID is not registered. BCM starts the communication with ECM if ignition switch is turned ON.


DTC Logic

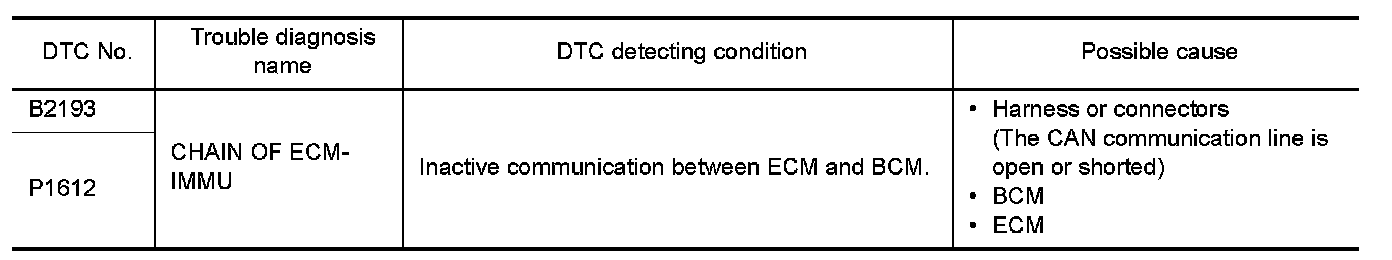

DTC DETECTION LOGIC

NOTE:
- If DTC B2193 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
With Intelligent Key.
- If DTC B2193 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to
With Intelligent Key.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON under the following conditions:
-CVT selector lever is in the P or N position.
-Do not depress brake pedal.
2.Check "Self Diagnostic Result" with CONSULT.
Is DTC detected?
YES- Refer to "Diagnosis Procedure".
NO- Inspection End.


Diagnosis Procedure


1. REPLACE BCM

1.Replace BCM. Service and Repair.
2.Perform initialization with CONSULT.
For initialization, refer to "CONSULT Operation Manual.
Does the engine start?
YES-BCM is malfunctioning.
- Replace BCM. Service and Repair.
- Perform initialization again.
NO-ECM is malfunctioning.
- Replace ECM.
- Perform ECM re-communicating function.
