Terminal and Reference Value for Main Power Window and Door Lock/Unlock Switch





POWER WINDOW SYSTEM

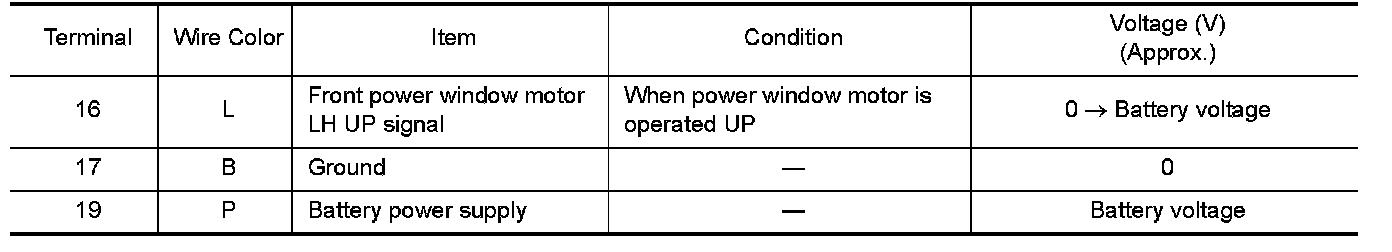

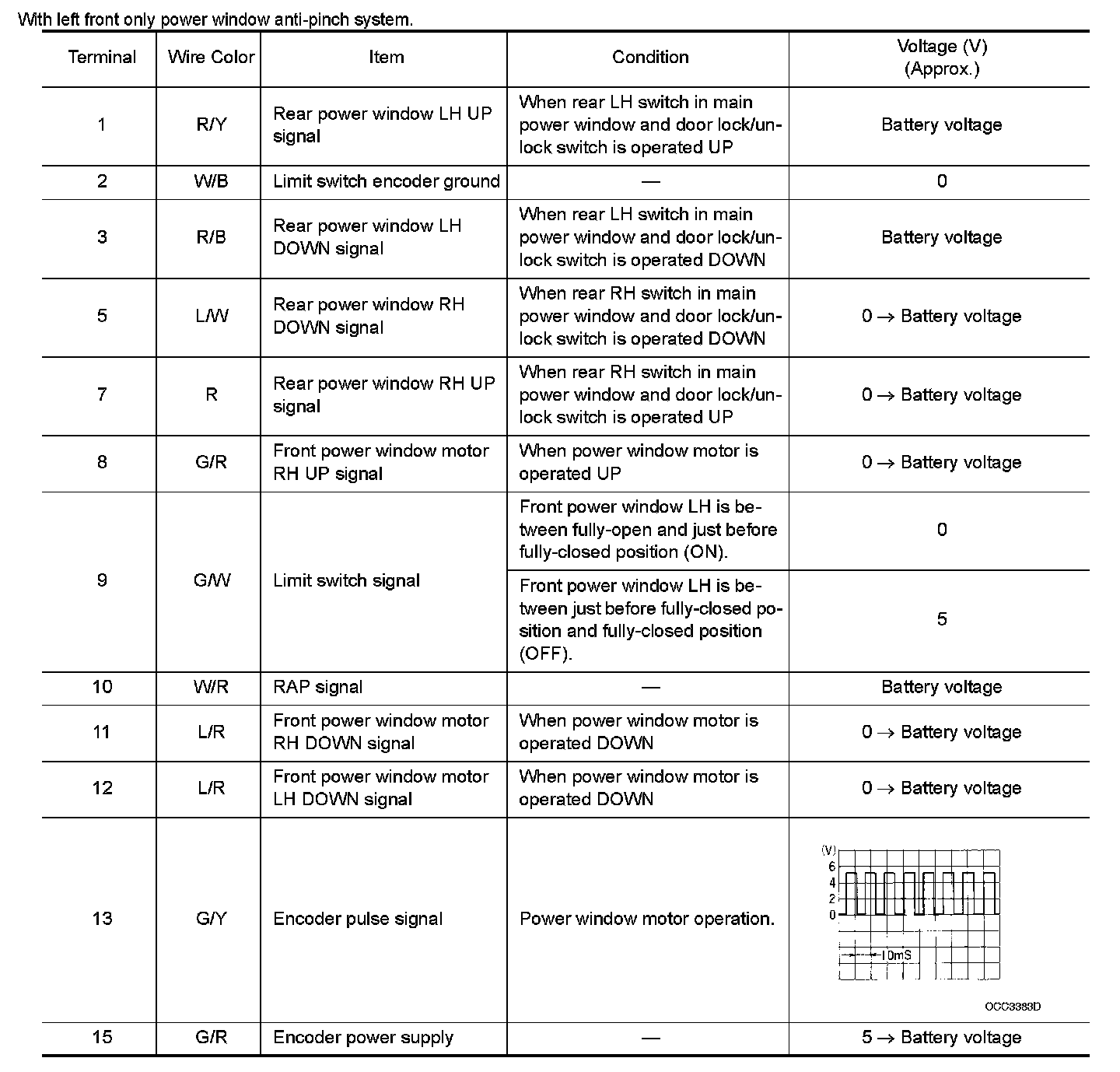

Terminal and Reference Value for Main Power Window and Door Lock/Unlock Switch
