Home >> Nissan-Datsun >> 2011 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Shifter M/T >> Service and Repair >> Removal and Replacement >> RS6F94R >> Component of Shift Selector and Cable

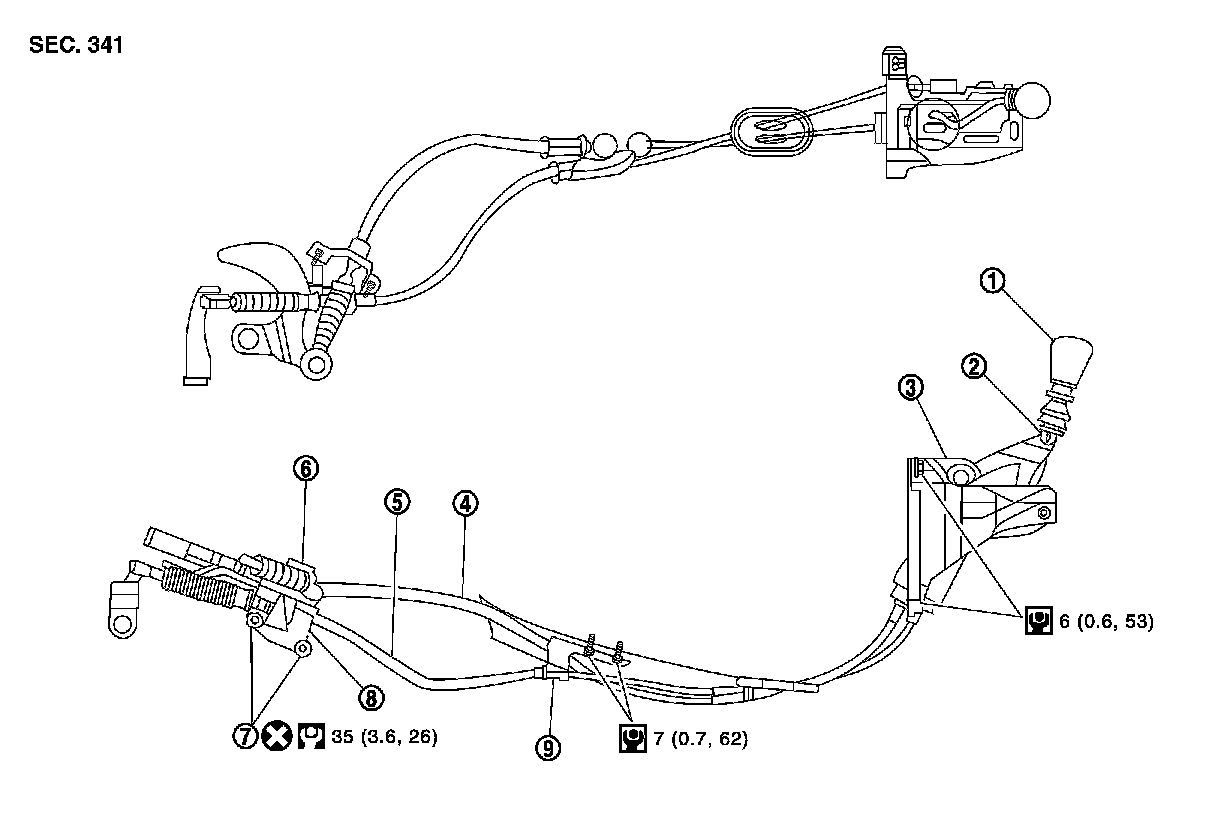

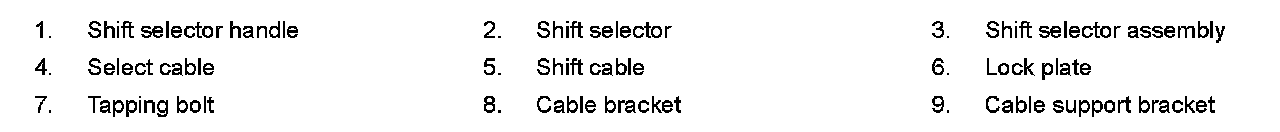

Component of Shift Selector and Cable





CONTROL LINKAGE


Component of Shift Selector and Cable
