Checking M/T Oil

M/T OIL


Checking M/T Oil


OIL LEAKAGE AND OIL LEVEL
1. Make sure that oil is not leaking from transaxle or around it.

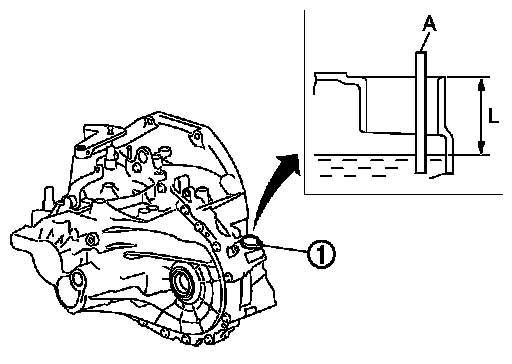

2. Remove plug (1).
3. Check the oil level (L) using suitable gauge (A) as shown.






CAUTION:
Do not start engine while checking oil level.
4. Set an O-ring on plug (1) and then install it to transaxle. Tighten to the specified torque. Disassembly And Assembly.

CAUTION:
Do not reuse O-ring.
