Electrical Diagrams





STARTING SYSTEM

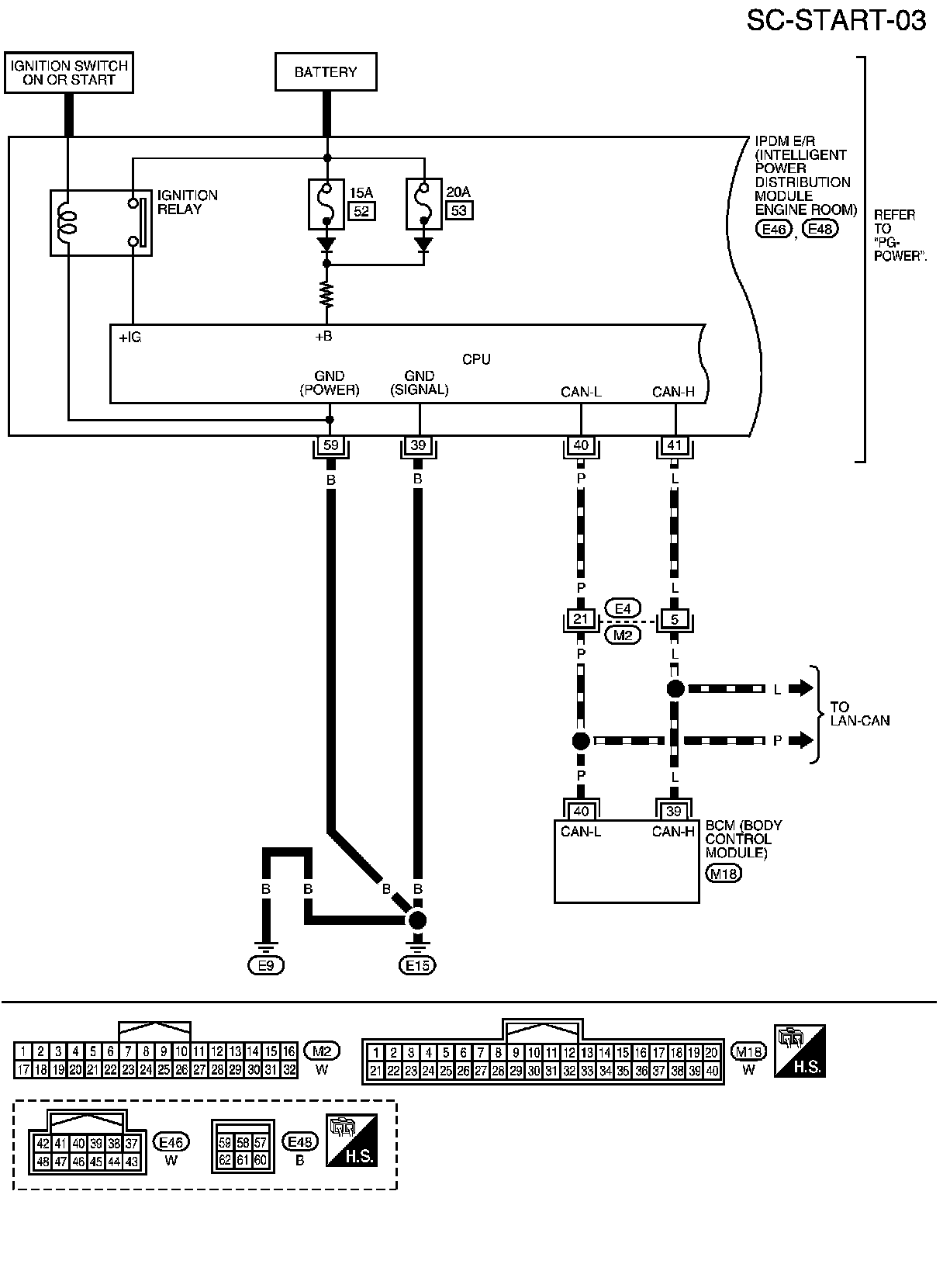

Wiring Diagram - START -

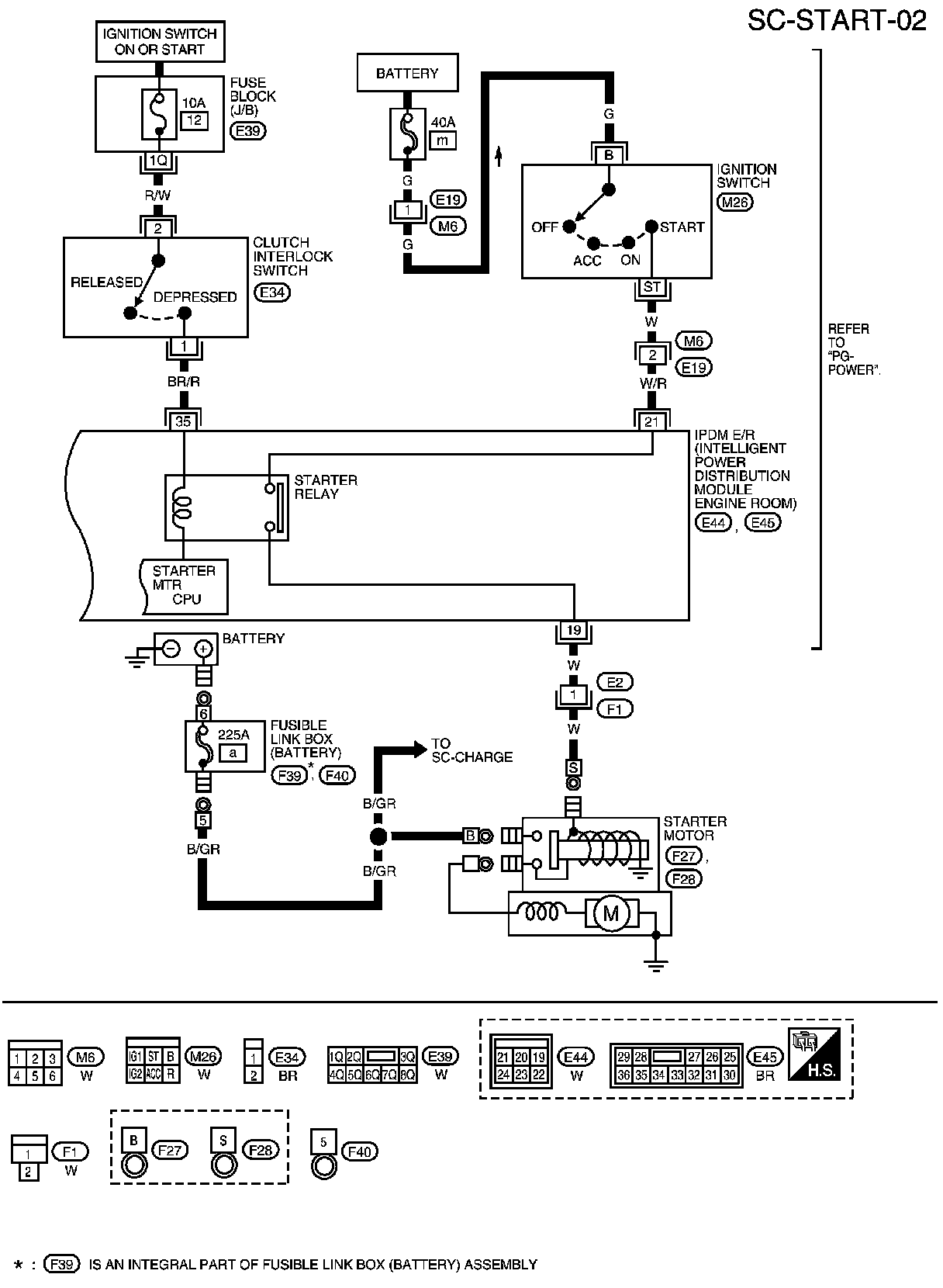

M/T Models - MR20DE

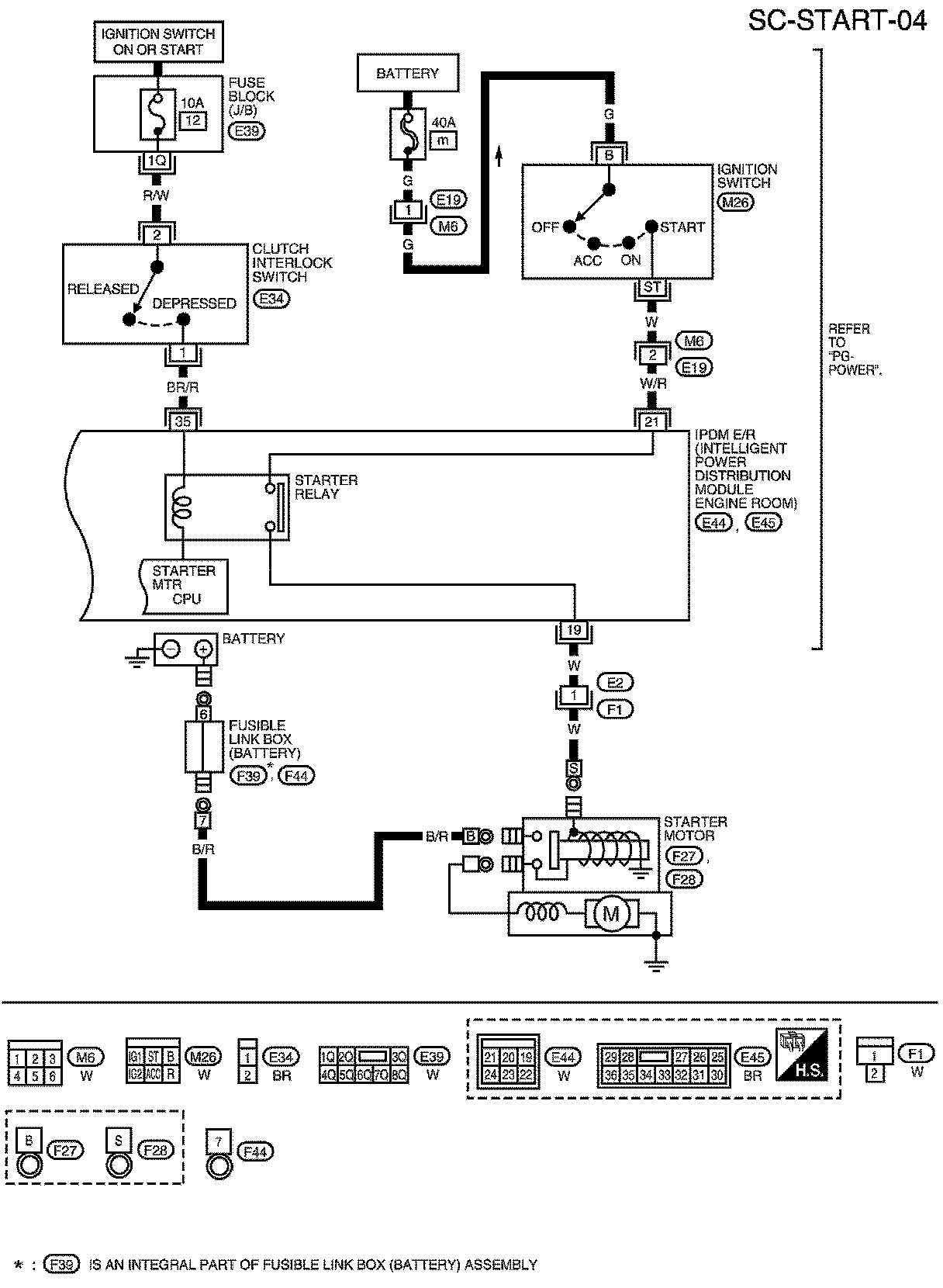

M/T Models - QR25DE

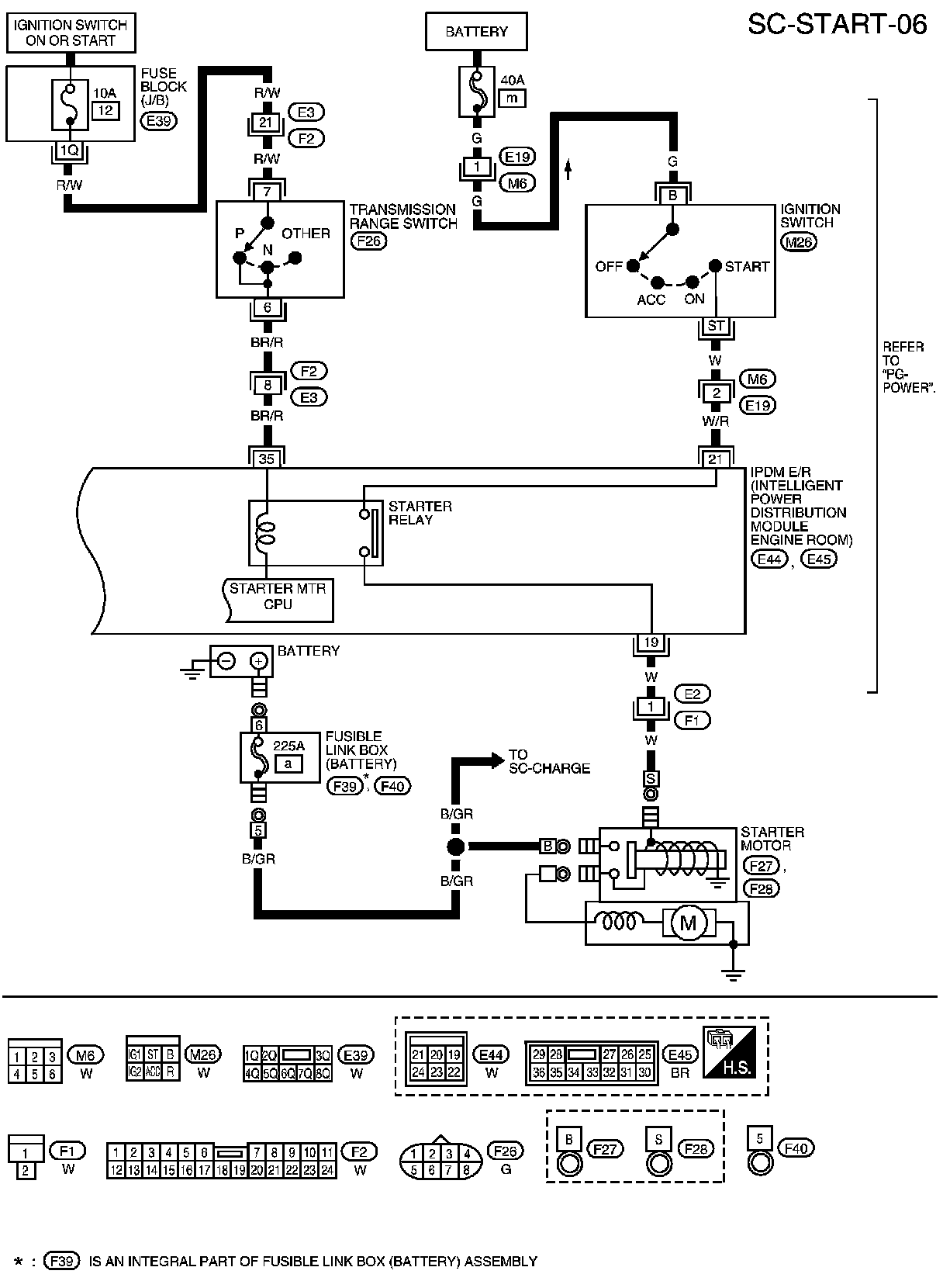

CVT Models - MR20DE











CVT Models - QR25DE
