Power Distribution Module: Service and Repair

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)


Removal and Installation of IPDM E/R


REMOVAL





1. Disconnect negative battery cable.
2. Remove the air cleaner and air duct, Removal And Installation (QR25DE only).

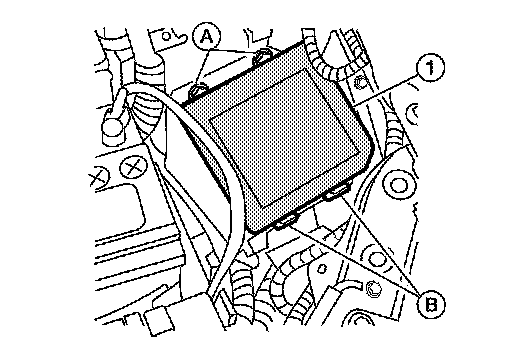

3. Lift up the IPDM E/R (1) while pushing and opening pawls (A) or
(B), and remove the IPDM E/R while pushing and opening the other side pawls.
4. Disconnect harness connector.

INSTALLATION
Installation is the reverse order of removal.
