Initial Inspection and Diagnostic Overview
BOARD COMPUTER
Trouble Diagnosis

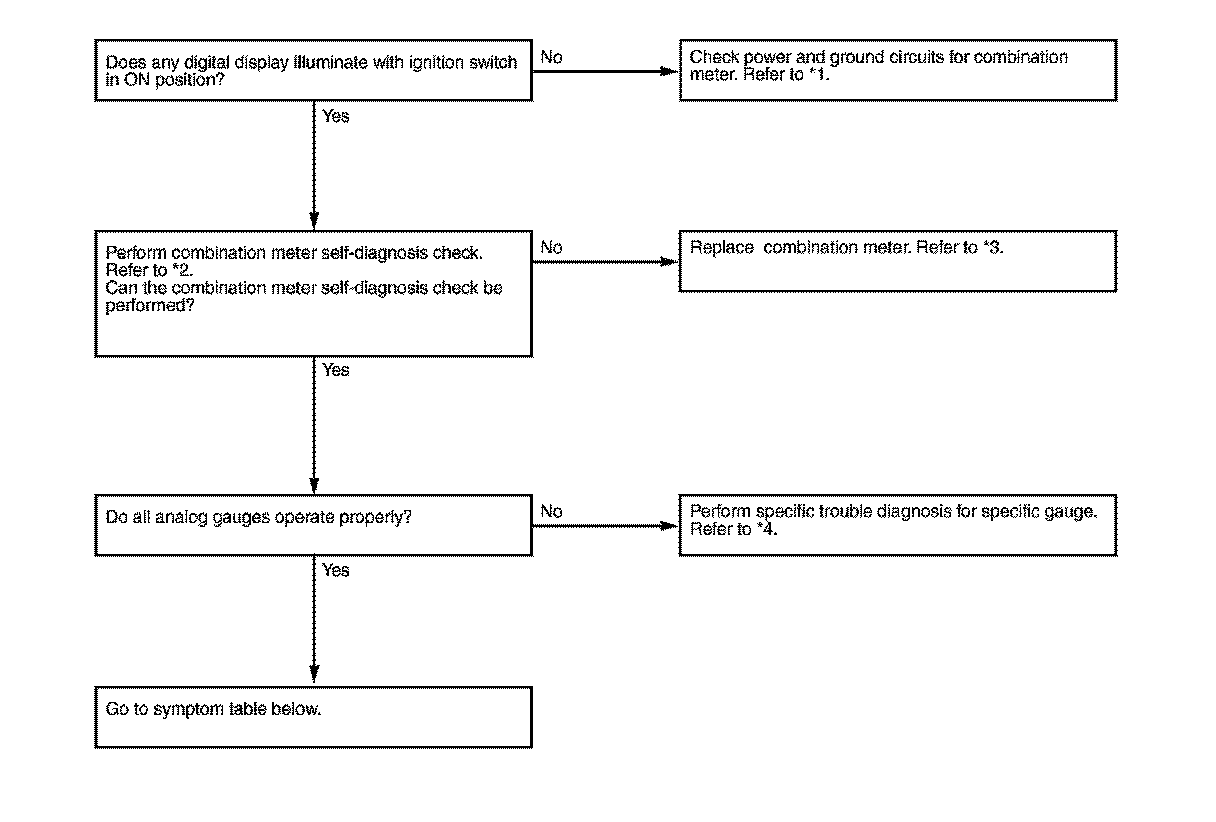

DIAGNOSIS PROCEDURE

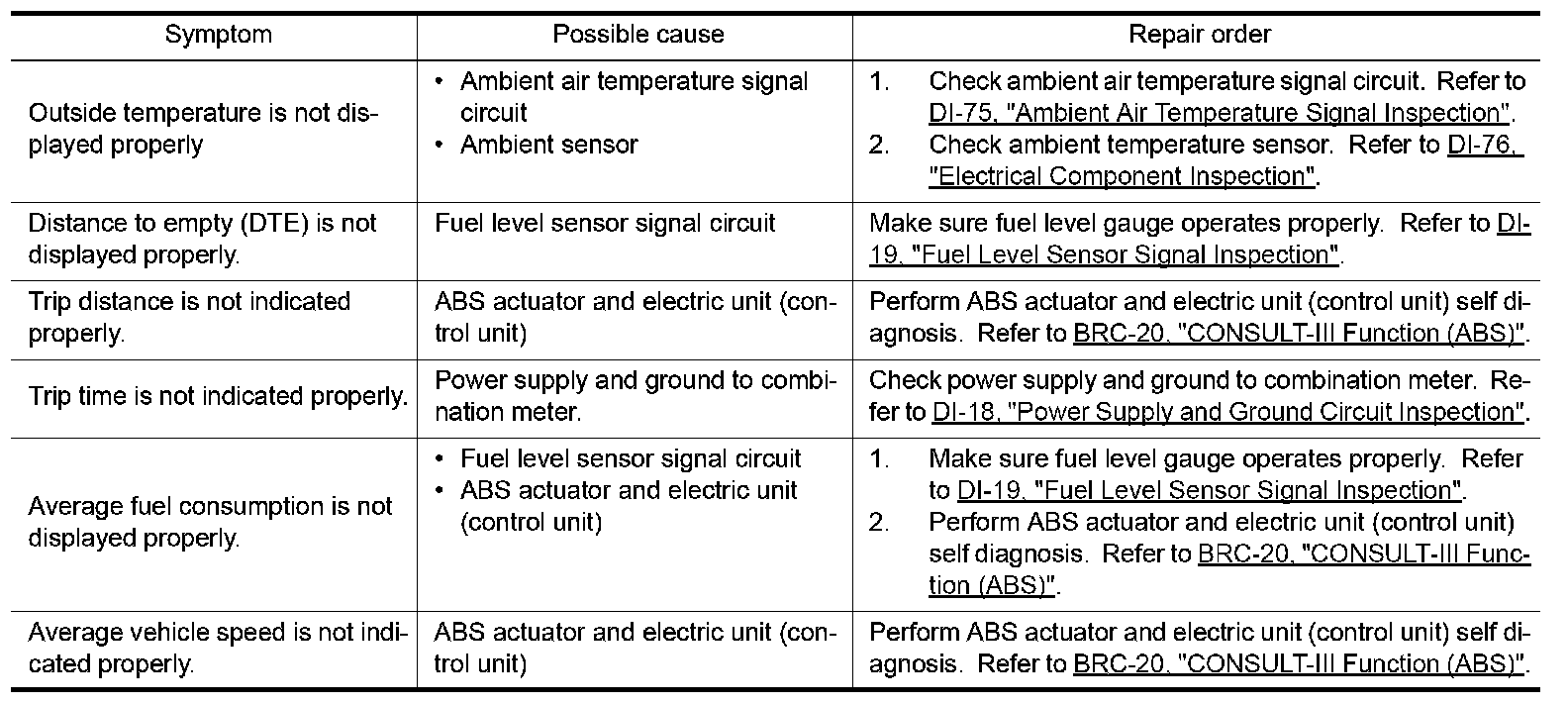

SYMPTOM TABLE
