Component Inspection (Except For California)

EVAPORATIVE EMISSION SYSTEM


Component Inspection


EVAP CANISTER

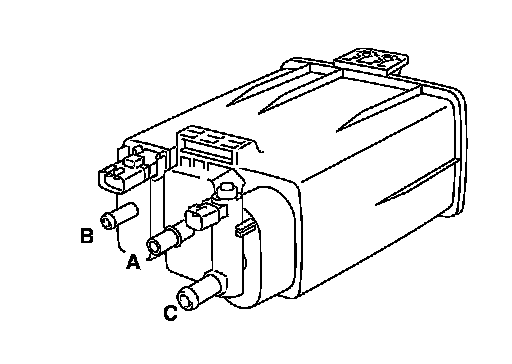

Check EVAP canister as follows:
1. Block port (B).
2. Blow air into port (A) and confirm that it flows freely out of port
(C).
3. Release blocked port (B).
4. Apply vacuum pressure to port (B) and confirm that vacuum pressure exists at the ports (A) and (C).
5. Block port (A) and (B).
6. Apply pressure to port (C) and check that there is no leakage.

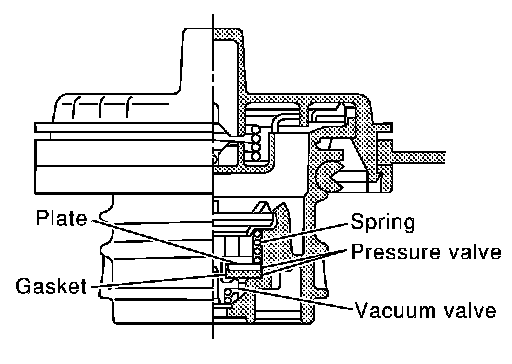

FUEL TANK VACUUM RELIEF VALVE (BUILT INTO FUEL FILLER CAP)





1. Wipe clean valve housing.

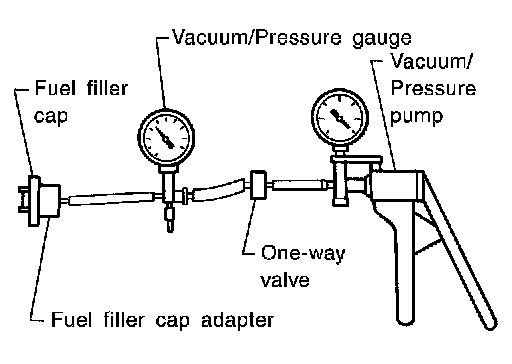

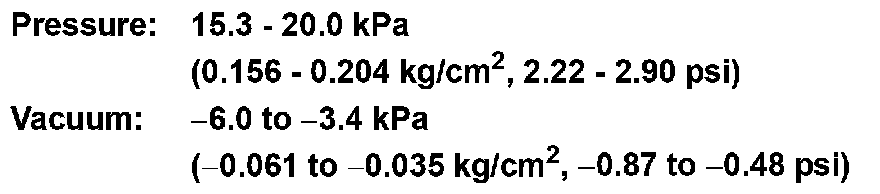

2. Check valve opening pressure and vacuum.






3. If out of specification, replace fuel filler cap as an assembly.

CAUTION:
Use only a genuine fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the MIL may come on.

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
Engine Controls (Except For California).

FUEL TANK TEMPERATURE SENSOR
Engine Controls (Except For California).

EVAP CANISTER VENT CONTROL VALVE
Engine Controls (Except For California).

EVAP CONTROL SYSTEM PRESSURE SENSOR
Engine Controls (Except For California).

EVAP SERVICE PORT

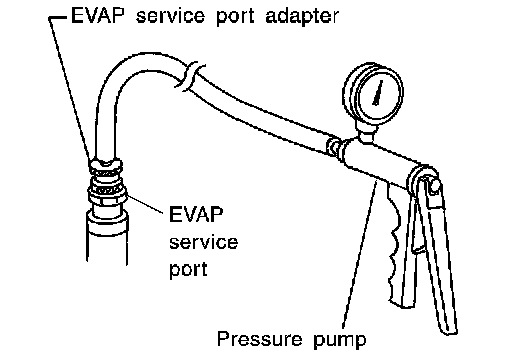

Positive pressure is delivered to the EVAP system through the EVAP service port. If fuel vapor leakage in the EVAP system occurs, use a leak detector to locate the leak.
