Input/Output Signal Chart Air Conditioning Cut Control (Except For California)
Input/Output Signal Chart Air Conditioning Cut Control (Except For California)
AIR CONDITIONING CUT CONTROL

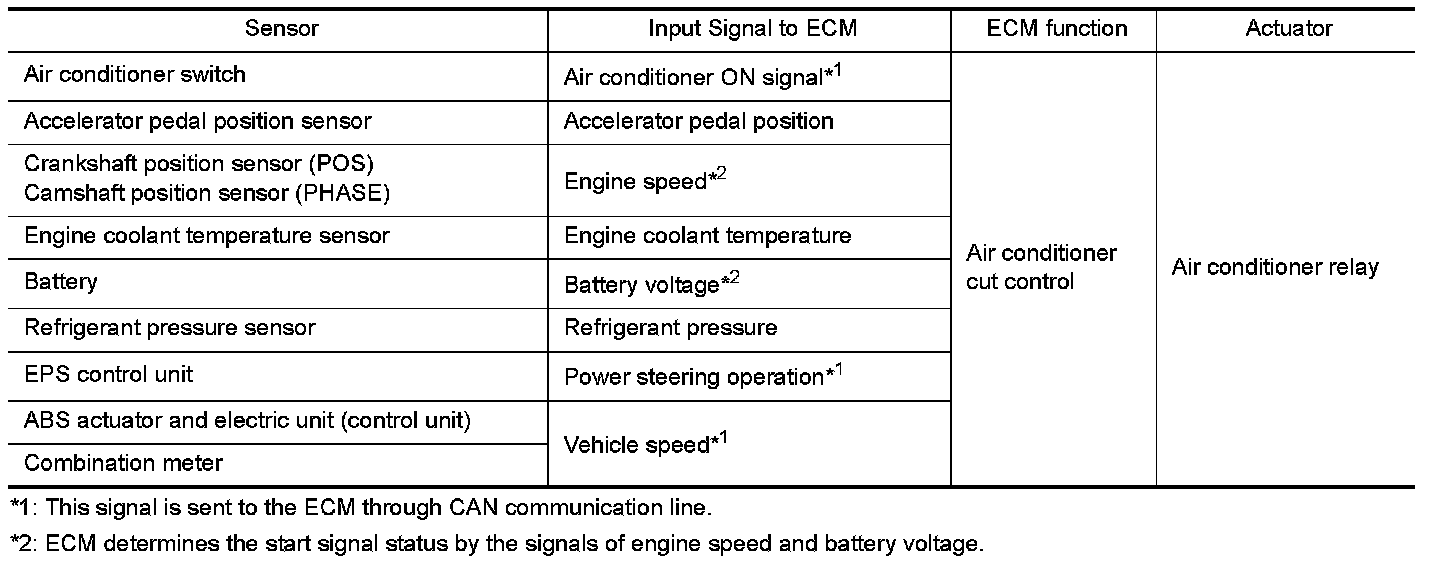

Input/Output Signal Chart
