Trunk Lamp: Service and Repair

INTERIOR LAMP


Trunk Room Lamp


BULB REPLACEMENT

Removal
1. Open trunk room lamp cover.
2. Remove the bulb.

Installation
Installation is in the reverse order of removal.

REMOVAL AND INSTALLATION

Removal





1. Open trunk room lamp cover.

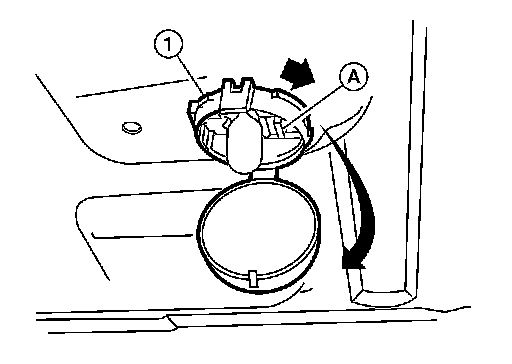

2. Release the trunk room lamp pawl tab (A) by pushing inward.
3. Pull the trunk room lamp (1) toward the side and down to remove from the parcel shelf.
4. Disconnect trunk room lamp connector, and remove trunk room lamp.

Installation
Installation is in the reverse order of removal.
