Removal and Installation

REAR COMBINATION LAMP


Removal and Installation


REMOVAL
1. Remove the luggage compartment side finisher. .
2. Detach the harness clips and remove the rear combination lamp assembly nuts.
3. Pull the rear combination lamp assembly toward the rear of the vehicle.
4. Disconnect rear combination lamp assembly connector, and remove the rear combination lamp assembly.

INSTALLATION
Installation is in the reverse order of removal.

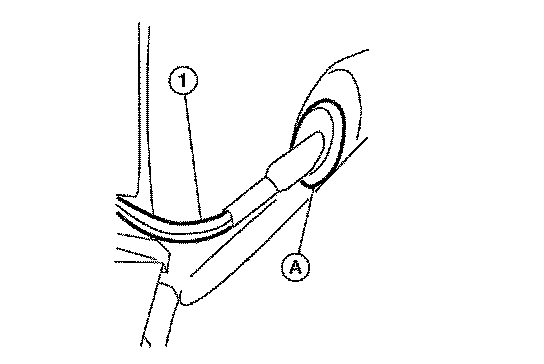

When installing the rear combination lamp assembly, install the wiring harness (1) in a downward position as shown.

CAUTION:
Ensure that the wiring harness is pointed downward and the harness grommet is fully seated. Improper installation may cause water damage to the vehicle.
