Electrical Component Inspection





WARNING CHIME


Electrical Component Inspection


FRONT DOOR SWITCH LH

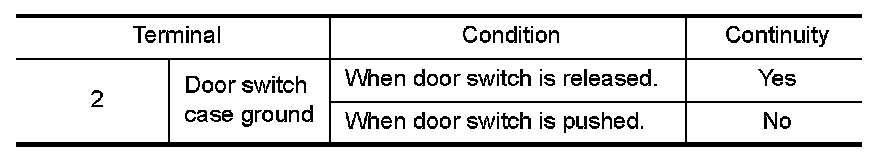

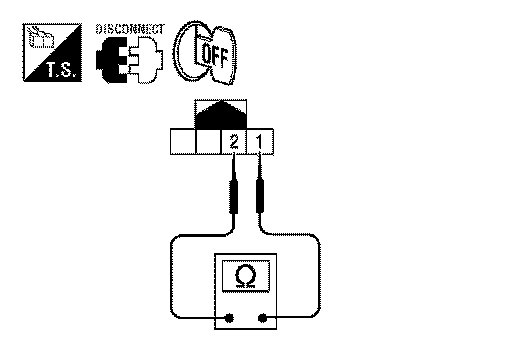

Check continuity between terminal 2 and door switch case ground.






SEAT BELT BUCKLE SWITCH LH

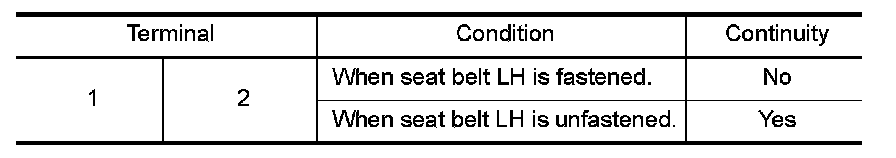

Check continuity between terminals 1 and 2.






PARKING BRAKE SWITCH

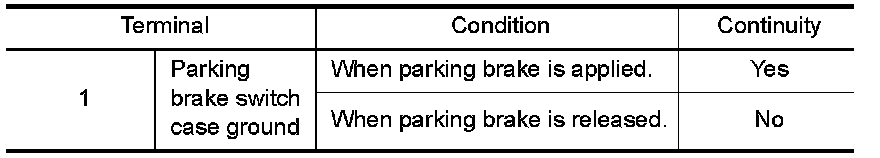

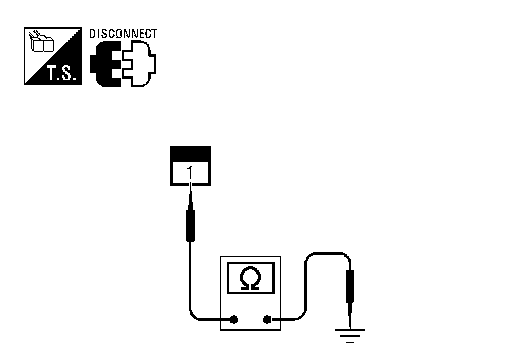

Check continuity between terminal 1 and parking brake switch case ground.
