Camshaft Gear/Sprocket: Specifications



Camshaft Gear/Sprocket

Camshaft (INT)

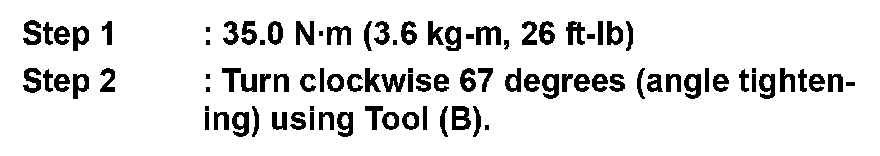

Install camshaft (INT) sprocket bolt. with the following steps.

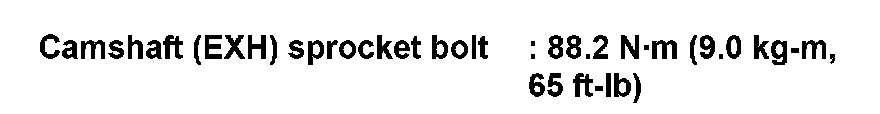

Camshaft (EXH)

Install camshaft (EXH) sprocket (2).
