Audio With Navigation





AUDIO

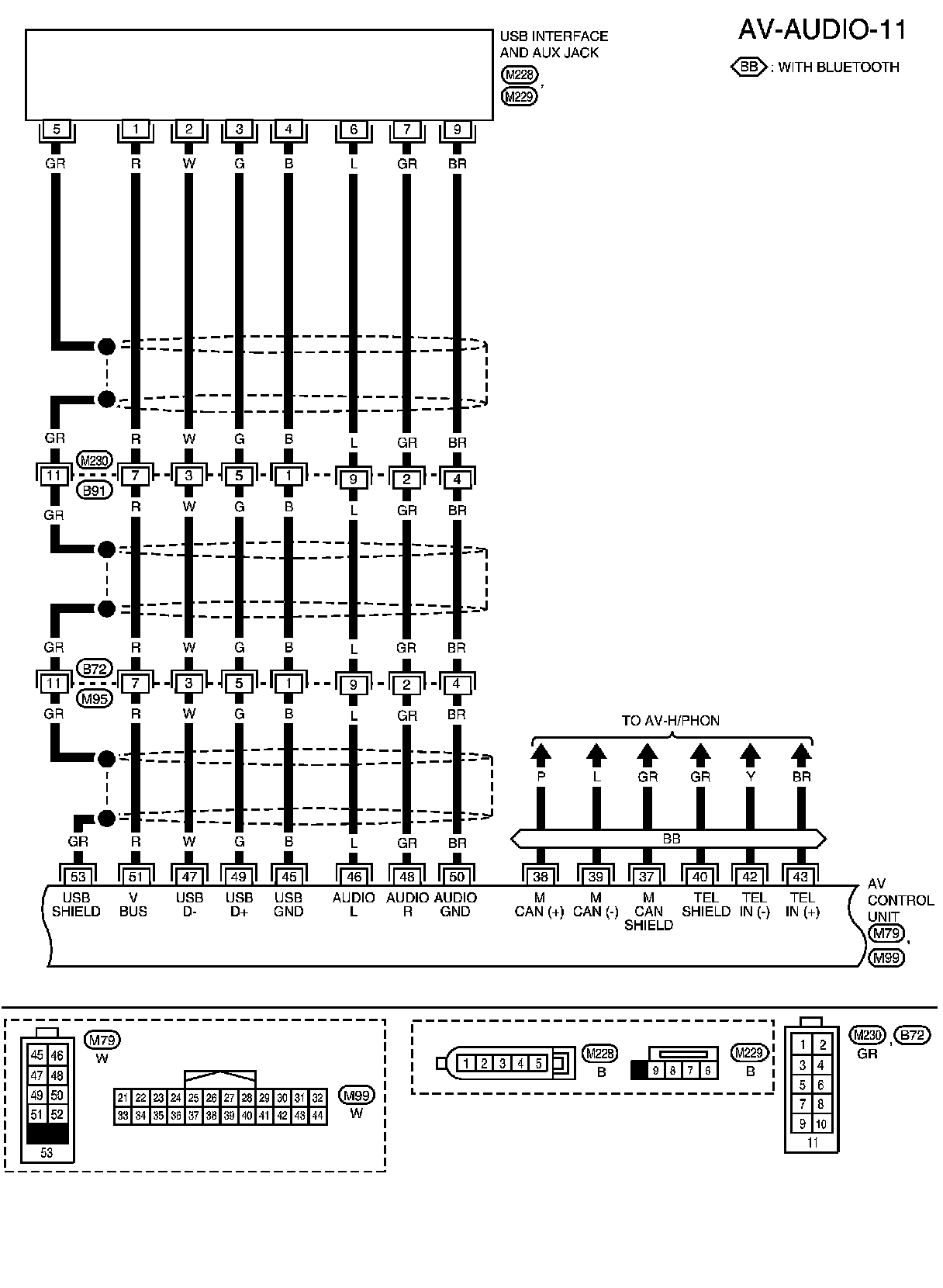

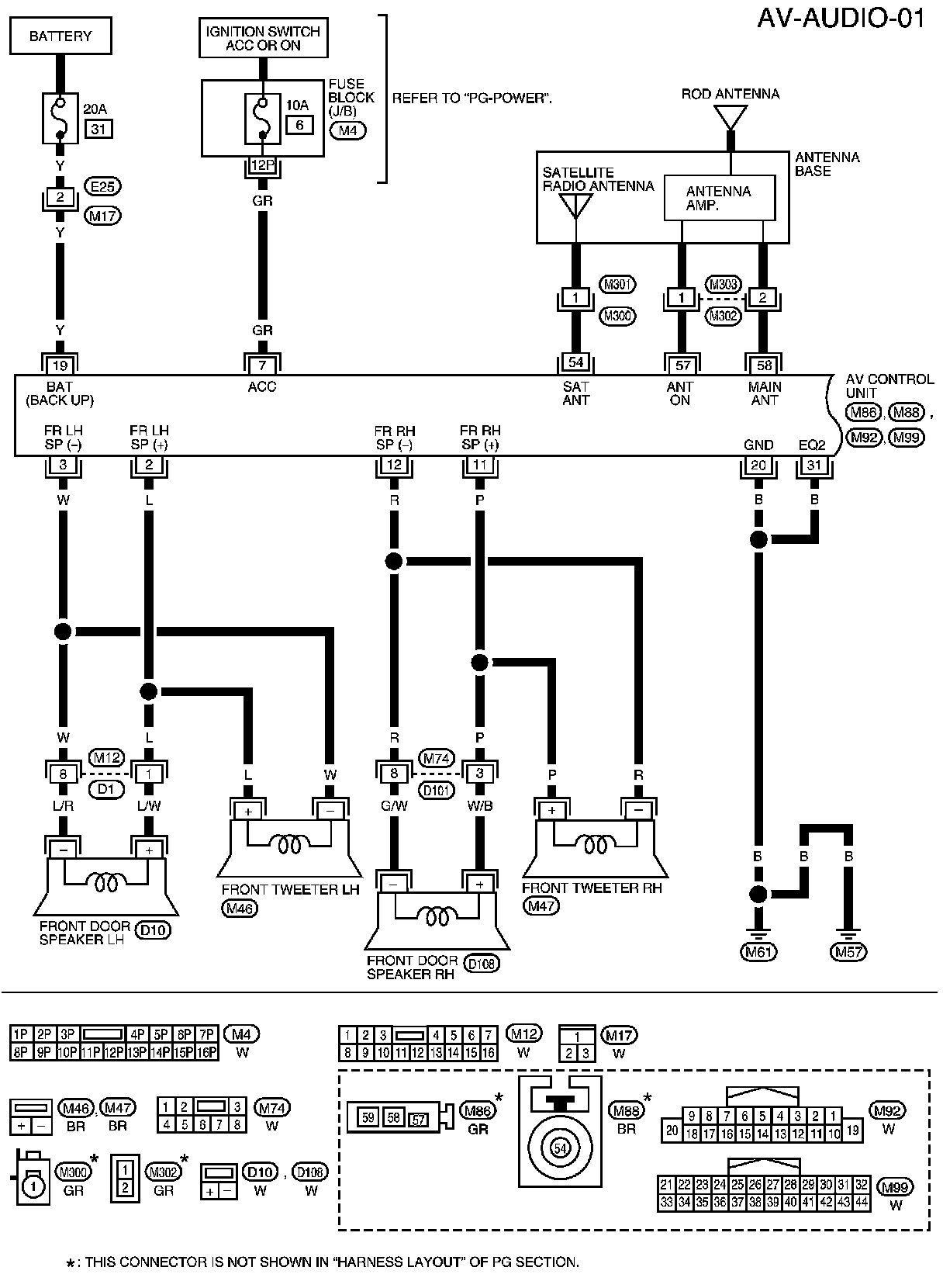

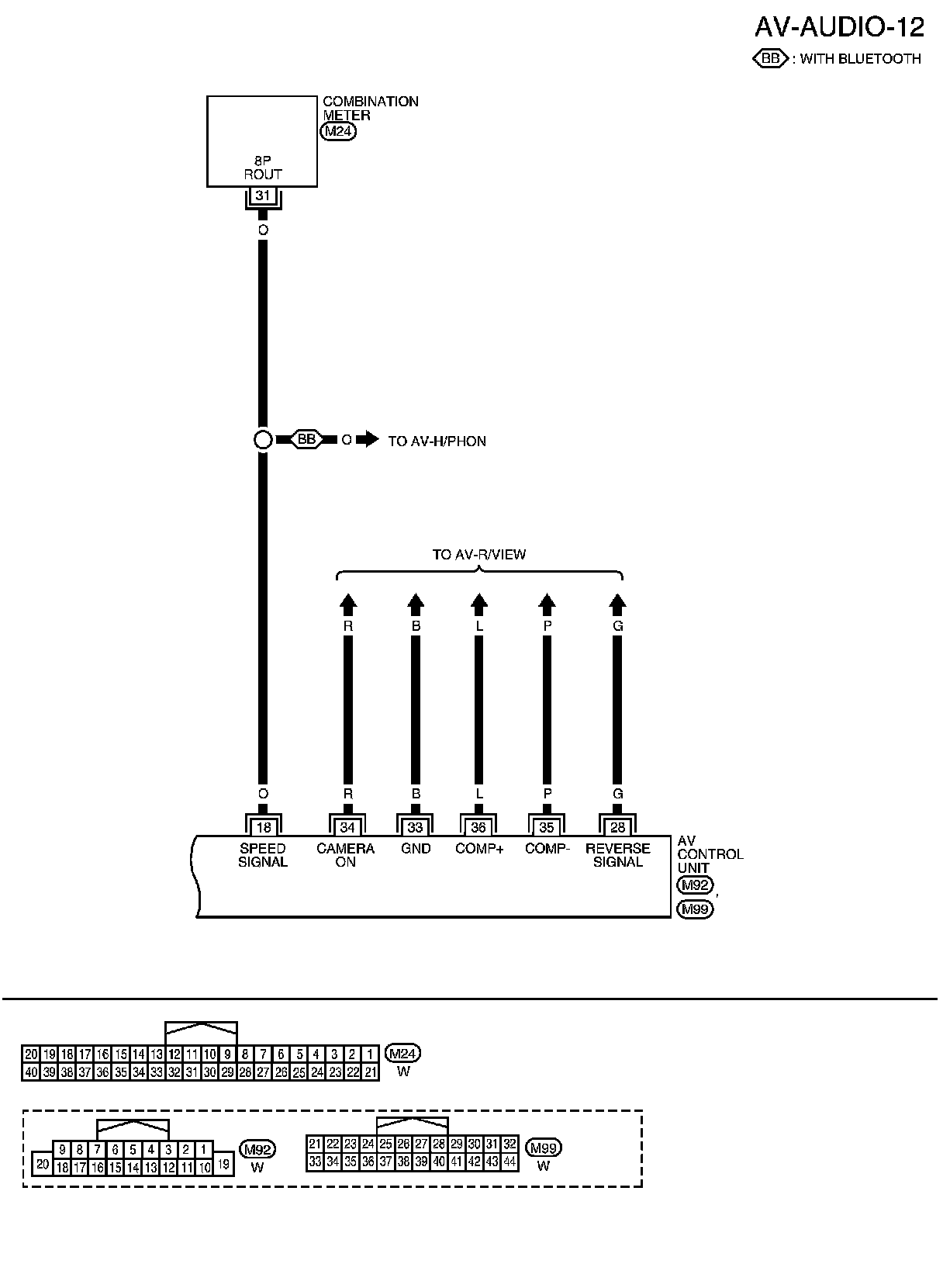

Wiring Diagram - AUDIO -

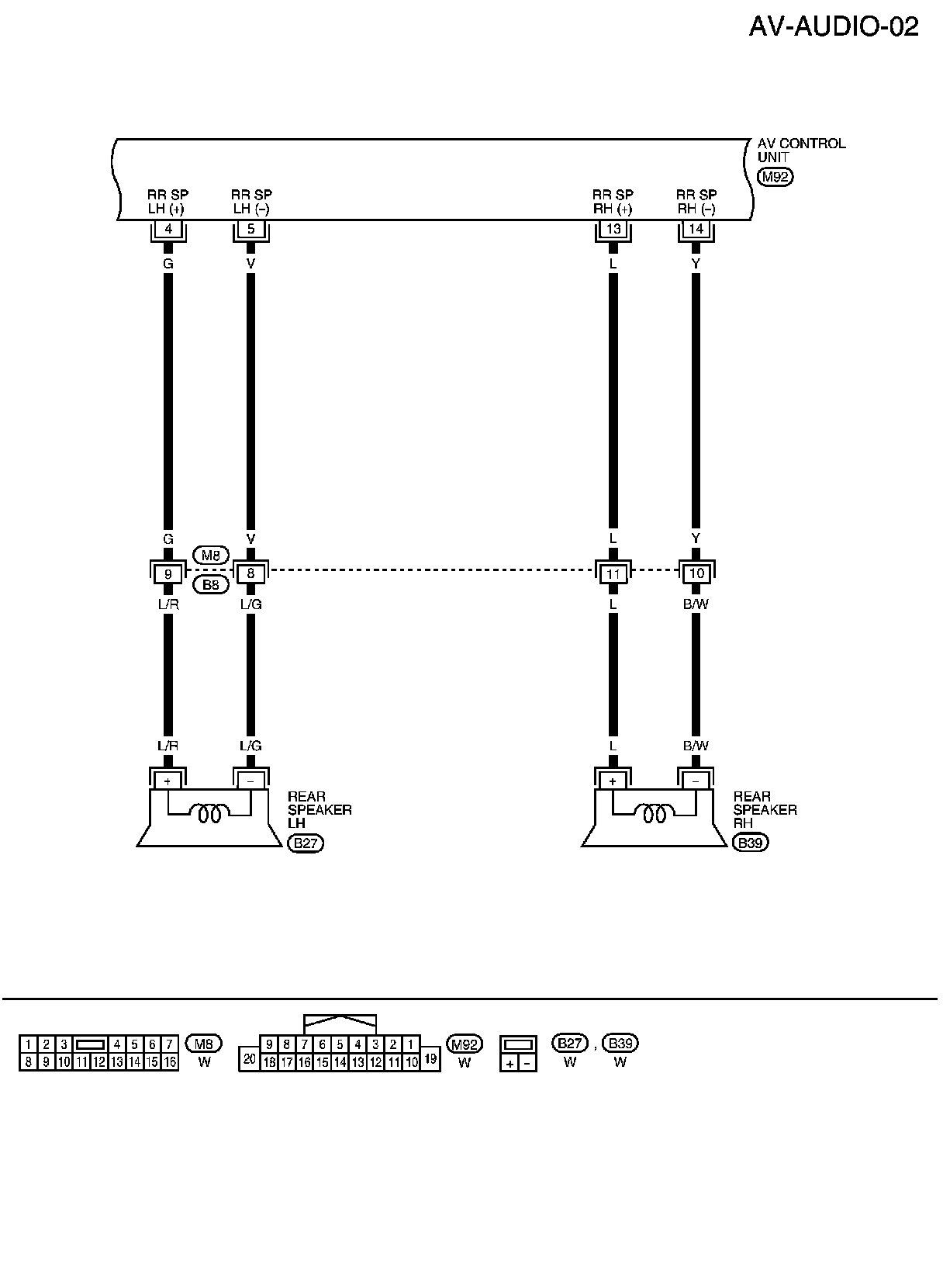

WITHOUT ROCKFORD FOSGATE

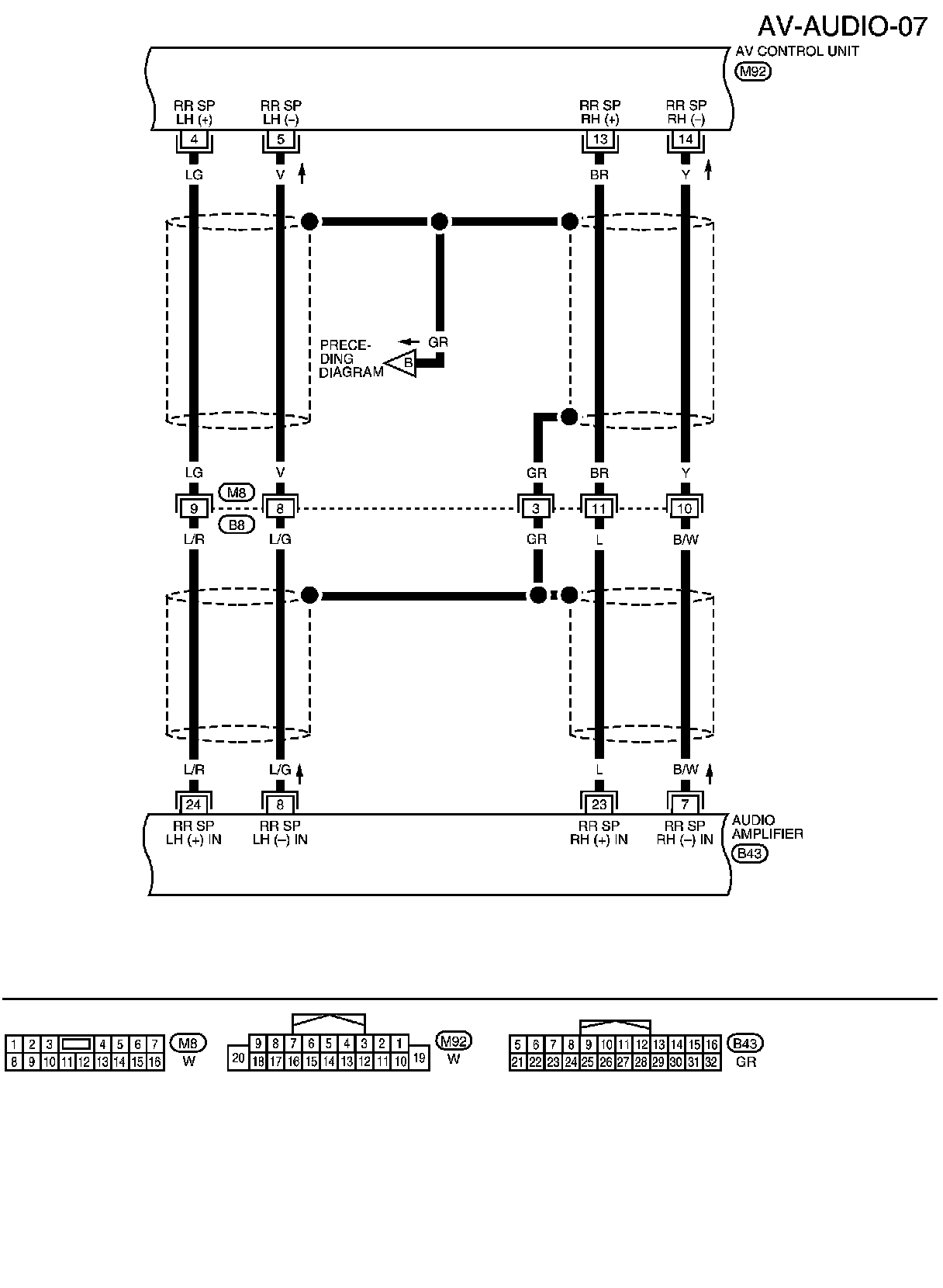

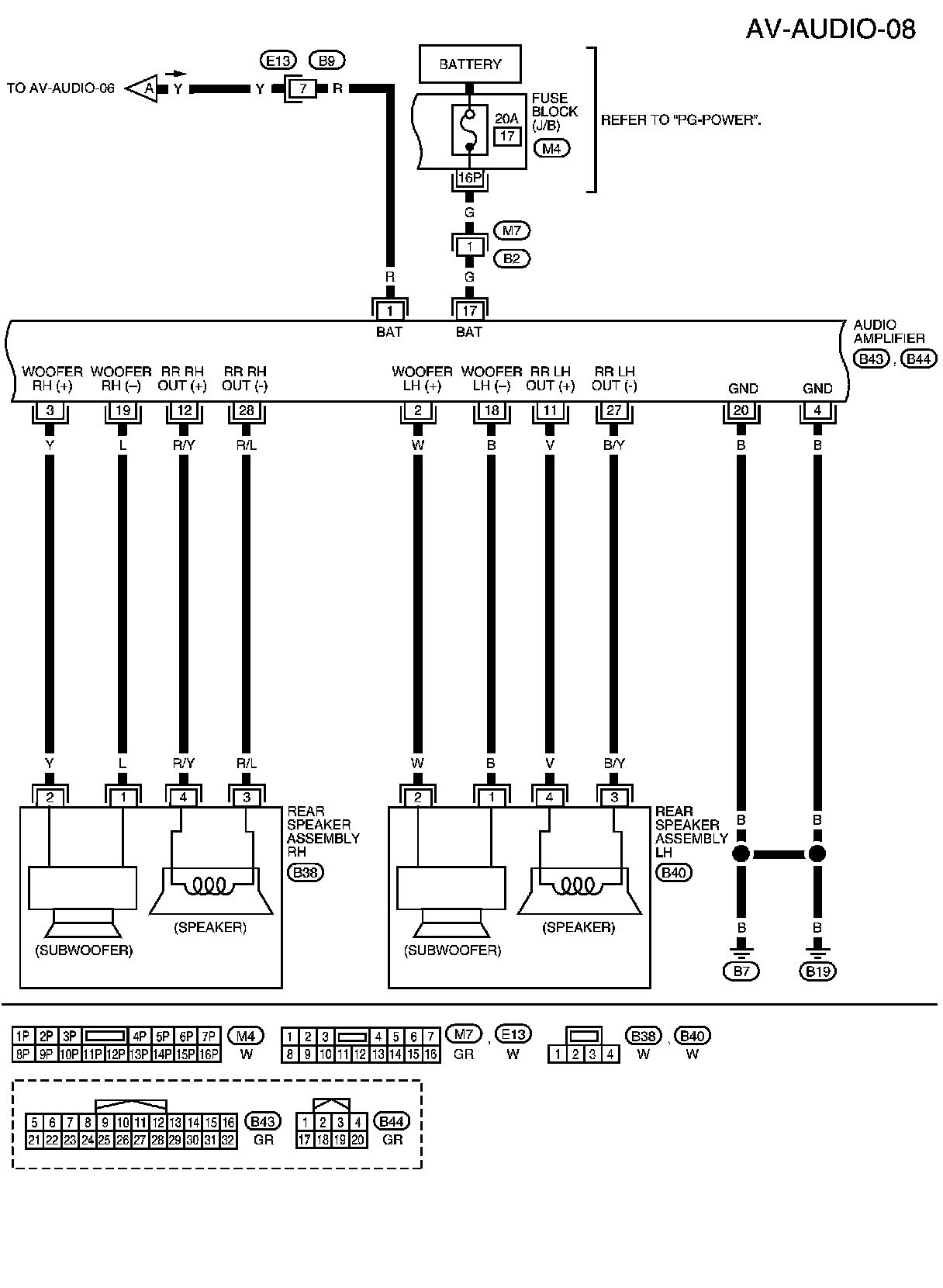

WITH ROCKFORD FOSGATE
