FTT Sensor (Except For California)





DTC P0181 FTT SENSOR

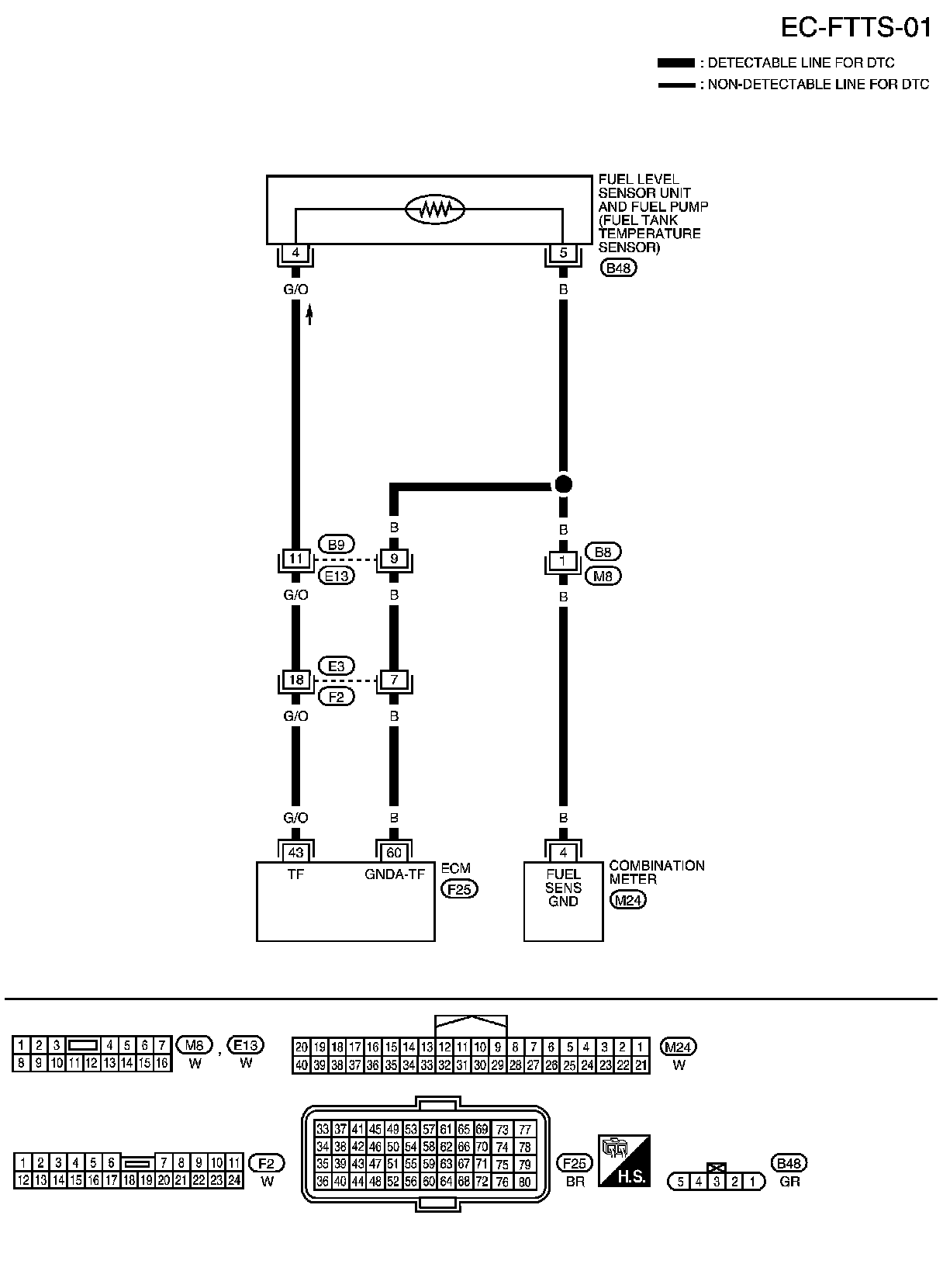

Wiring Diagram










DTC P0182, P0183 FTT SENSOR


Wiring Diagram
