Engine Over Temperature (Except For California)





DTC P1217 ENGINE OVER TEMPERATURE

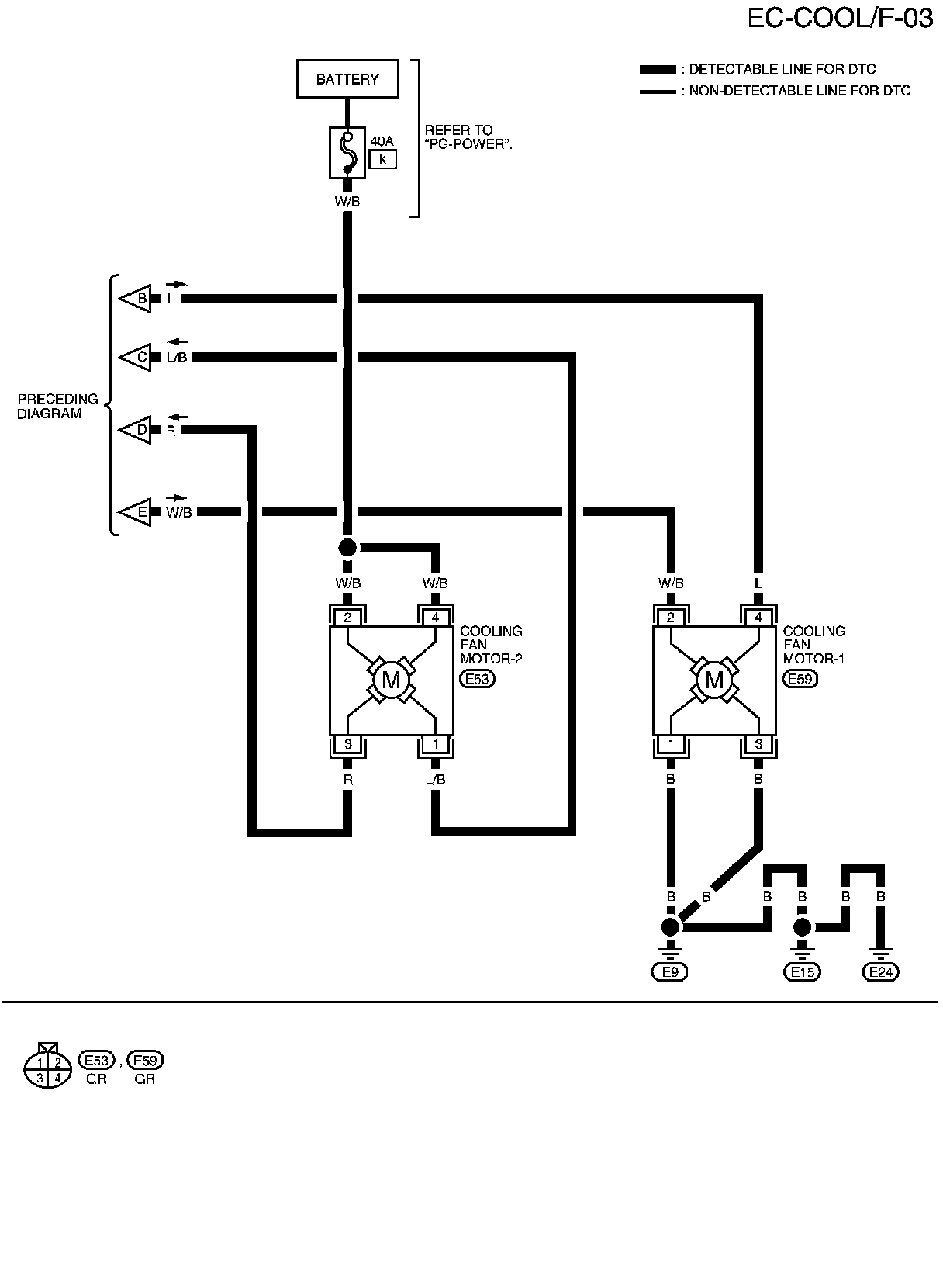

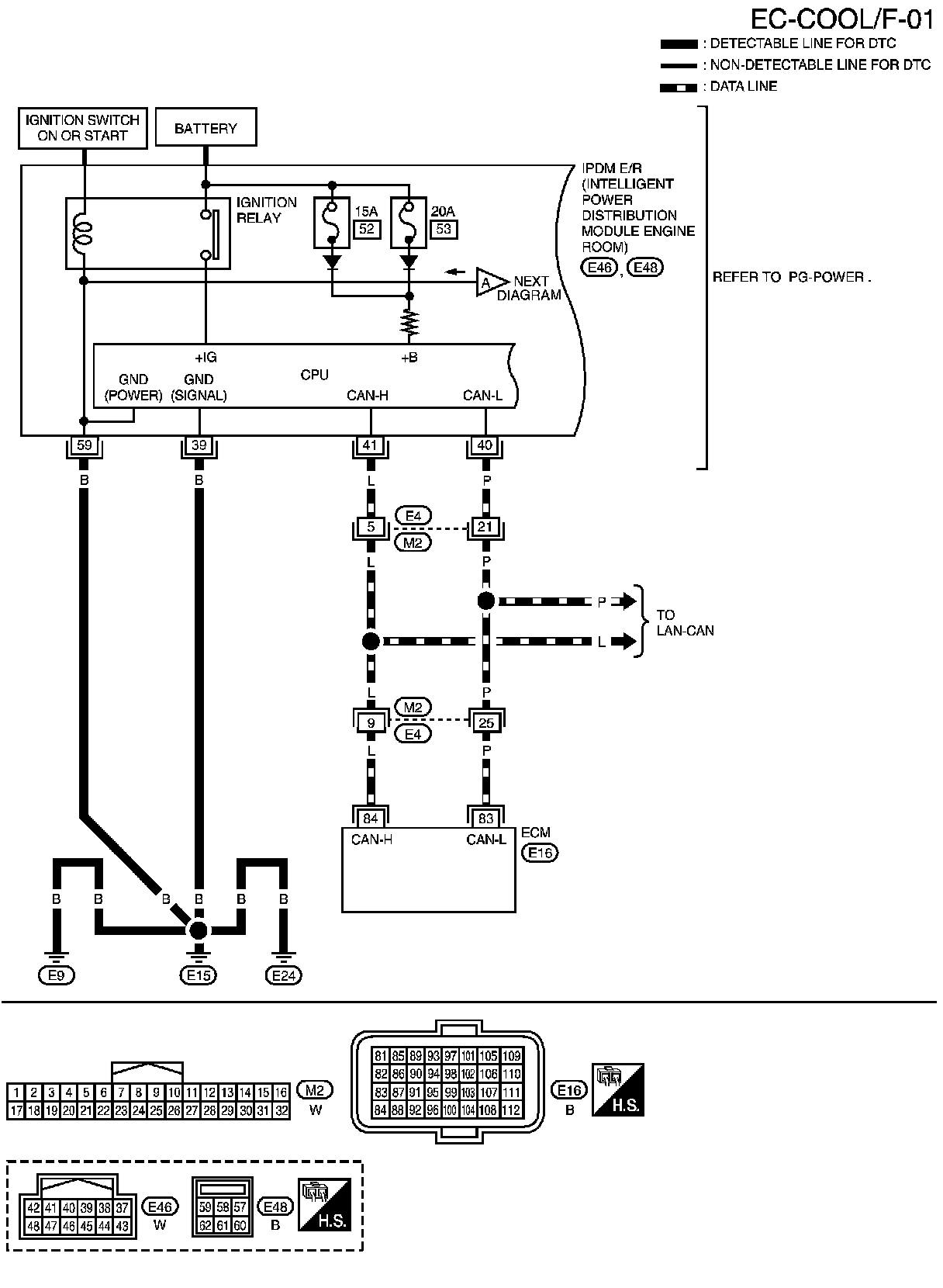

Wiring Diagram
