ASCD Steering Switch (Except For California)

DTC P1564 ASCD STEERING SWITCH

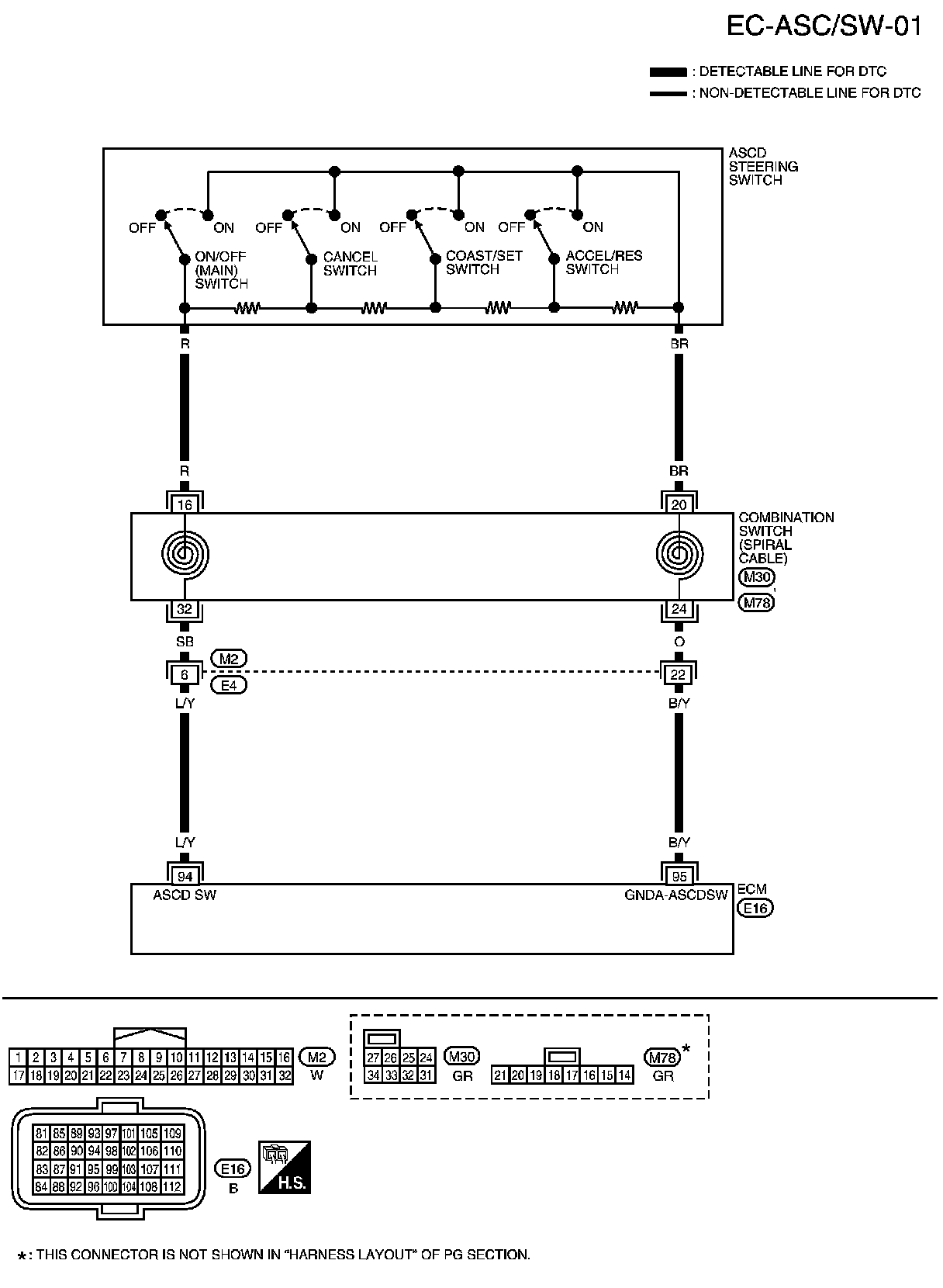

Wiring Diagram

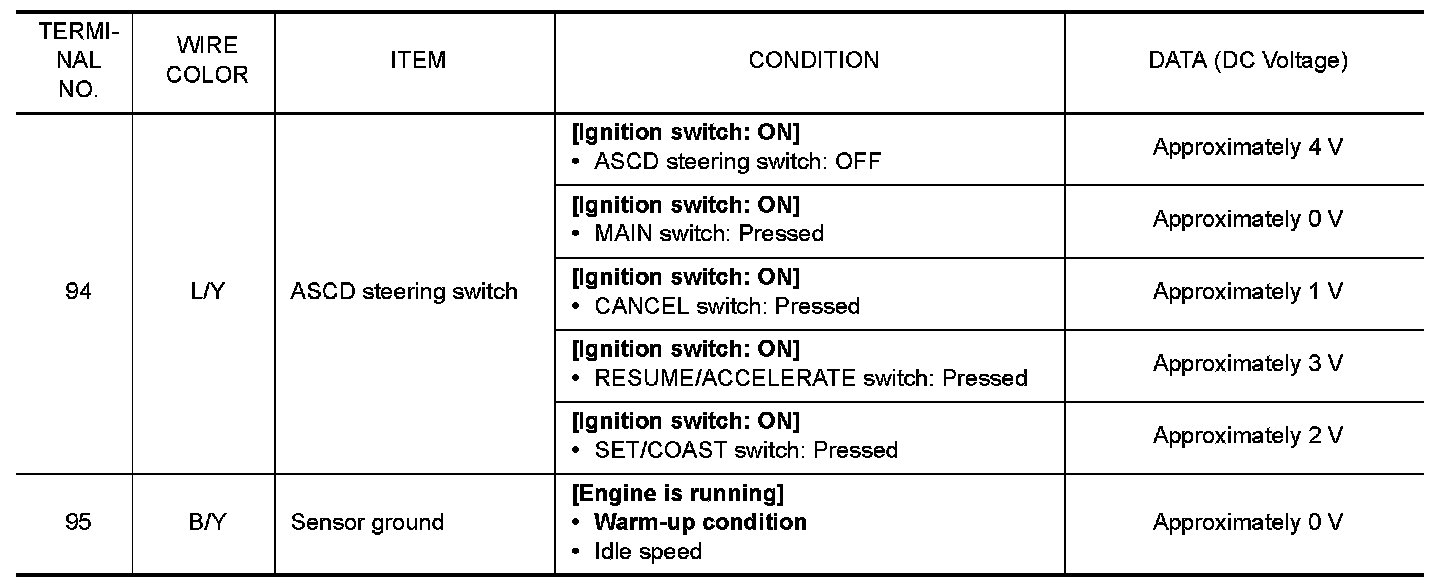

Specification data are reference values and are measured between each terminal and ground.

CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
