Home >> Nissan-Datsun >> 2011 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cellular Phone >> Telephone Audio With Navigation

Telephone Audio With Navigation





TELEPHONE

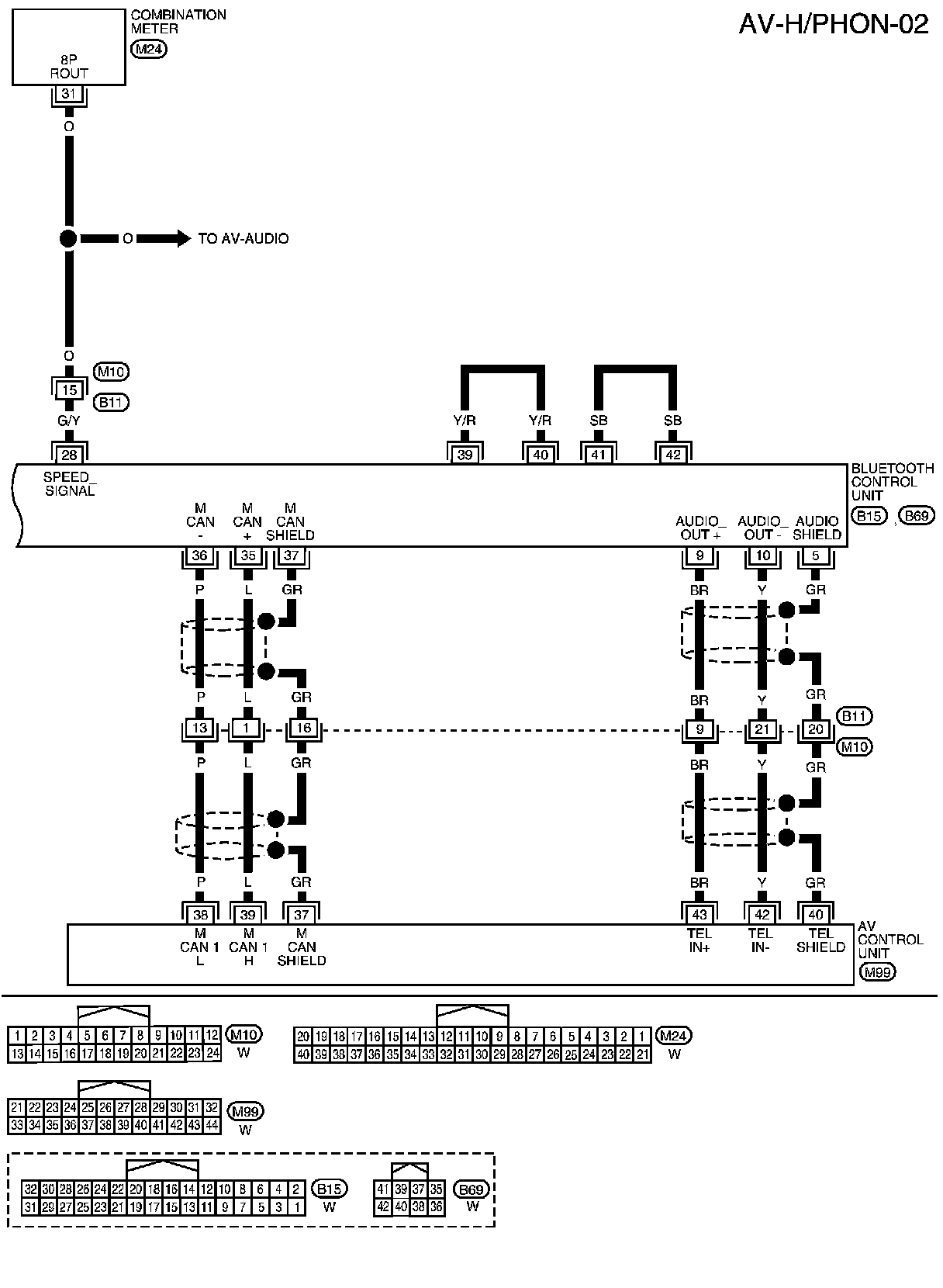

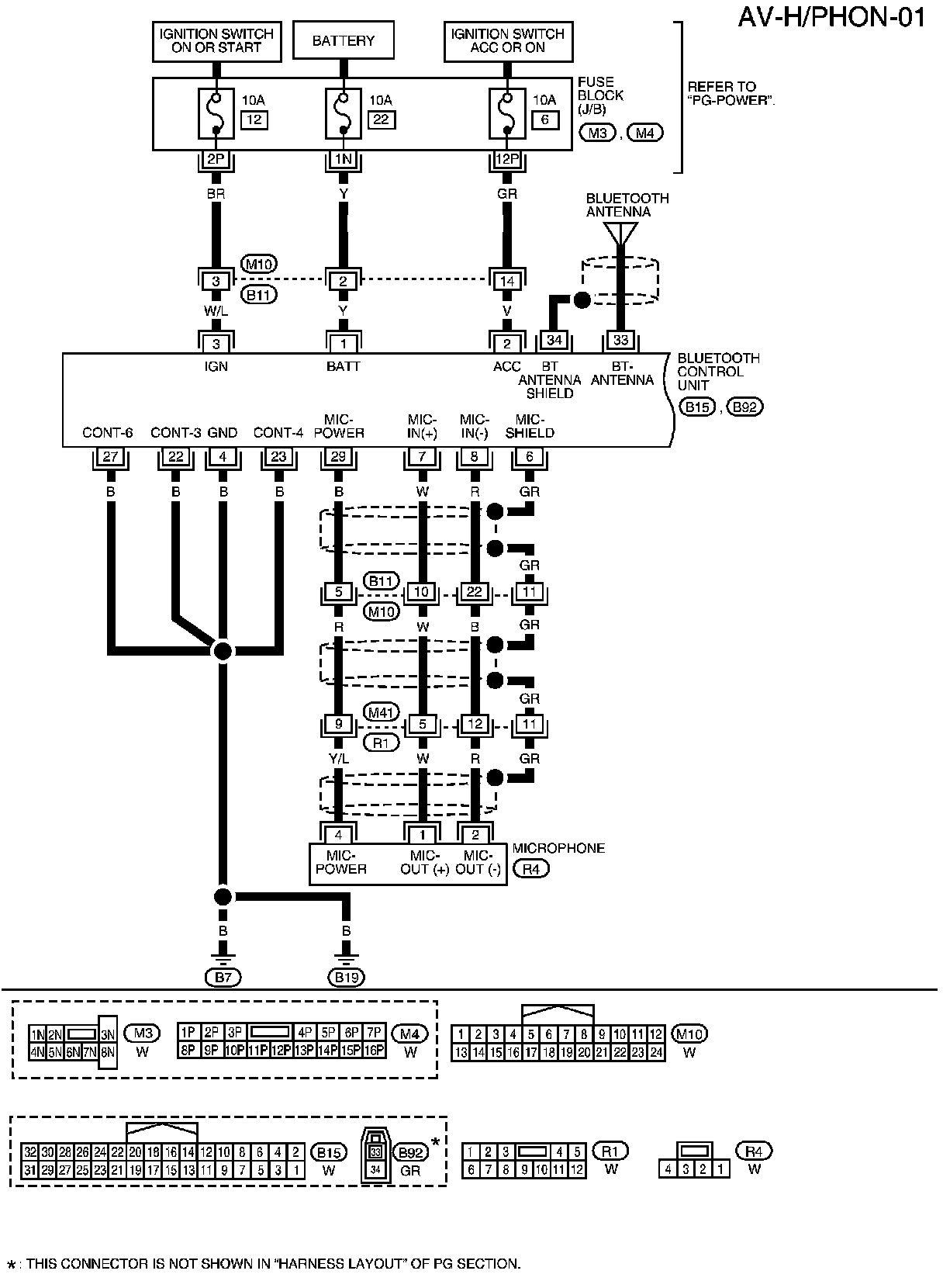

Wiring Diagram - H/PHON -
