60:40 Split Fold Down Seat Cushion

Removal and Installation

CAUTION: When removing and installing, use shop cloths to protect parts from damage.

60:40 SPLIT FOLD DOWN SEAT CUSHION










Removal
1. Lift up on the front of the LH and RH seat cushions and fold forward toward the front of the vehicle.

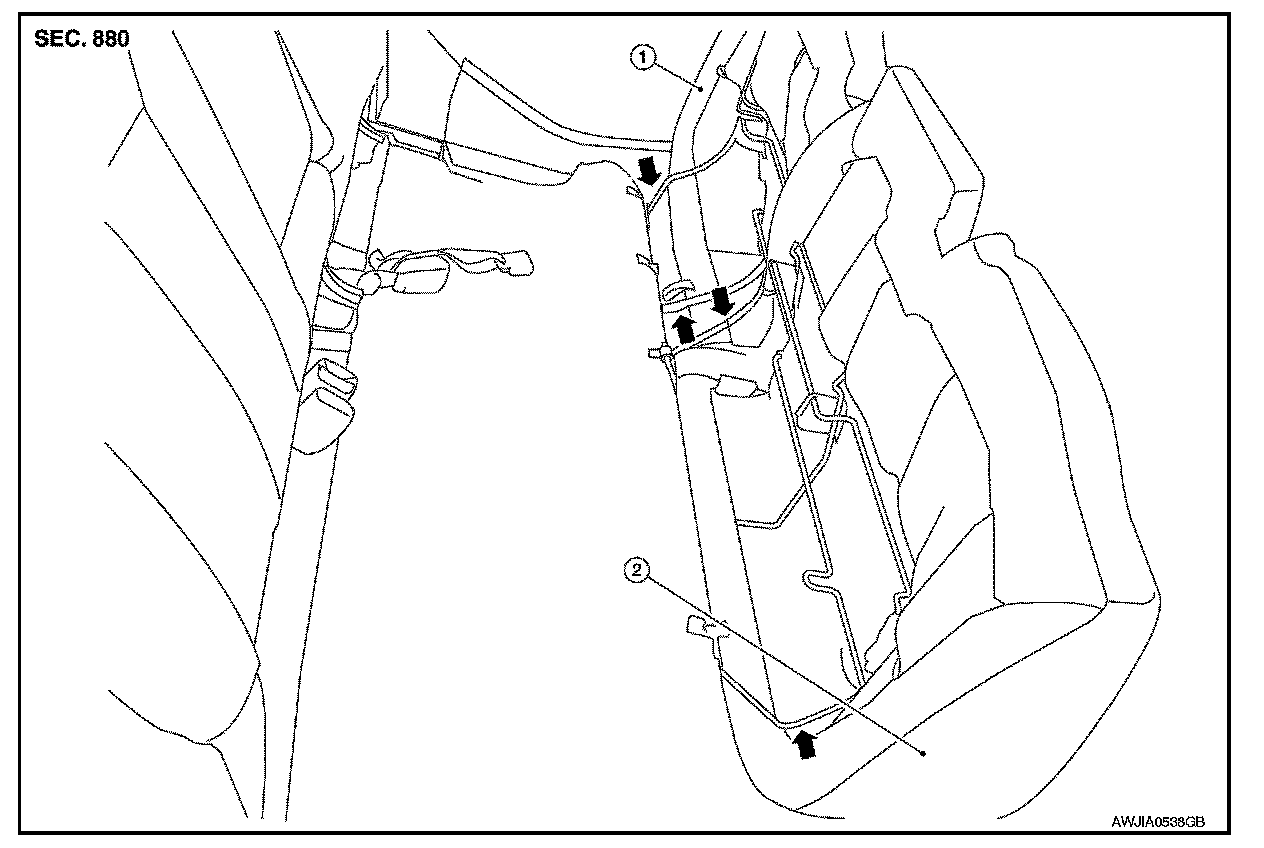

2. Push the cushion wires inward to disengage from the hinge brackets and remove the seat cushion.

Installation
Installation is in the reverse order of removal.

60:40 SPLIT FOLD DOWN RIGHT SEATBACK

Removal
1. Lift up on the front of the right seat cushion and fold forward toward the front of the vehicle.

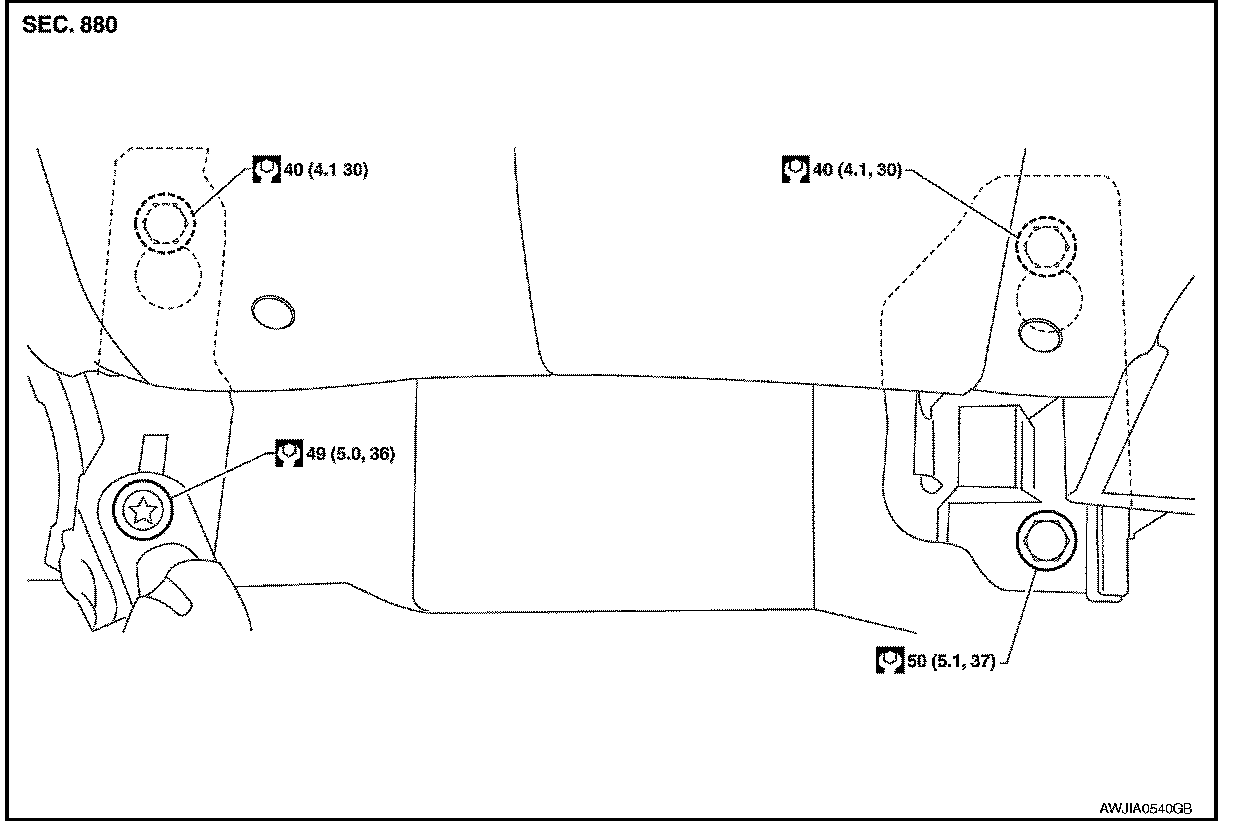

2. Remove the lower seatback mounting bolts from the right rear seat back brackets.
3. Slide rear seat back brackets toward the rear of the vehicle.
4. Lift the right seatback and remove from the vehicle.

Installation
Installation is in the reverse order of removal.

60:40 SPLIT FOLD DOWN LEFT SEATBACK

Removal
1. Lift up on the front of the left seat cushion and fold forward toward the front of the vehicle.





2. Remove the lower seatback mounting bolts from the left rear seat back brackets.
3. Slide rear seat back brackets toward the rear of the vehicle.
4. Lift the left seatback and remove from the vehicle.

Installation
Installation is in the reverse order of removal.
